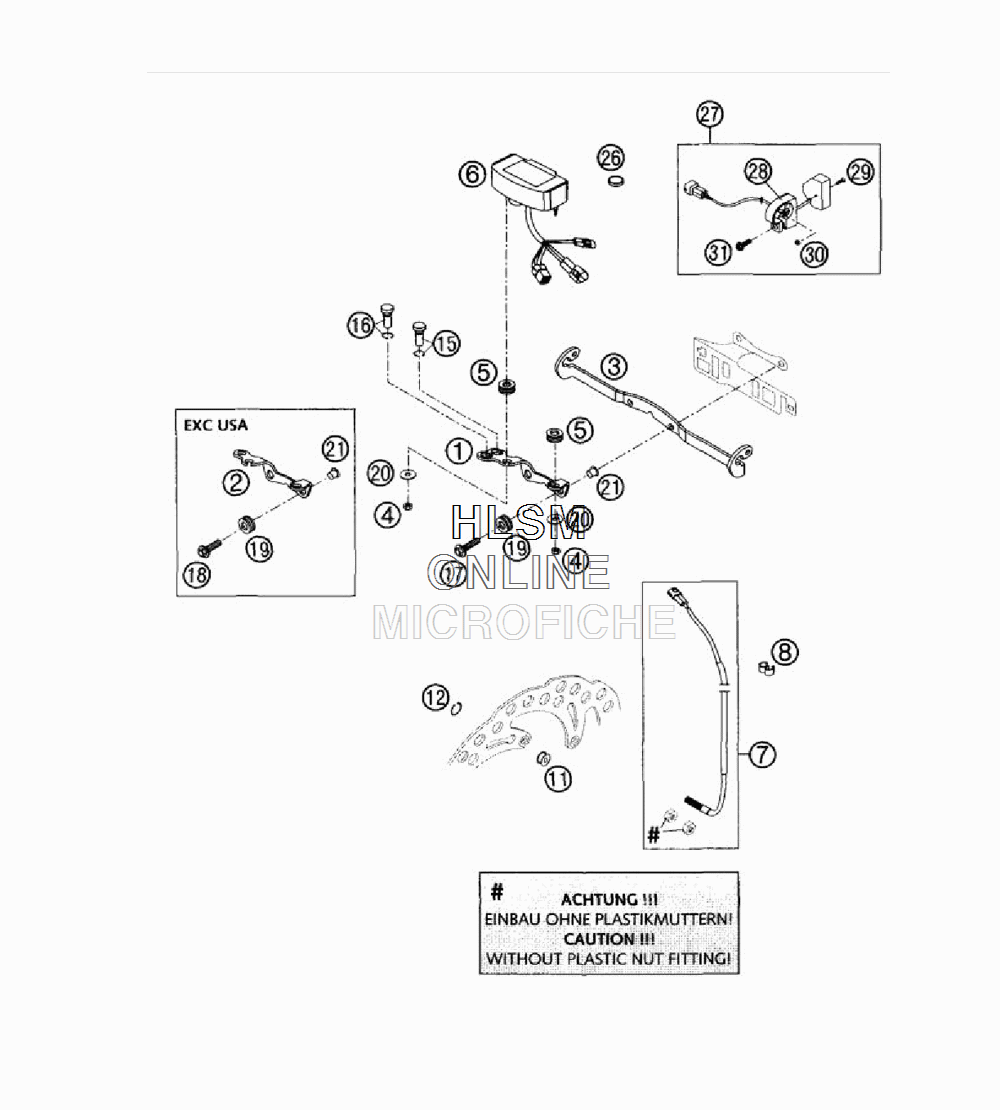

SPEEDOMETER M.A.E для Ktm 250 SX - 2004 года выпуска
-
№АртикулНазвание
-
158314060100 SPEEDOMETER BRACKET F. MAE ALUSPEEDOMETER BRACKET F. MAE ALU
-
250314060100 SPEEDOMETER BRACKET EXC-USASPEEDOMETER BRACKET EXC-USA
-
358314033100 FLASHER BRACKETFLASHER BRACKET
-
40985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
658314069100 SPEEDOMETER KM/H F. 21"SPEEDOMETER KM/H F. 21"
-
658314069300 SPEEDOMETER MPH F. 21"SPEEDOMETER MPH F. 21"
-
758314069251 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
855011022100 CLAMP 6/8MM BLACKCLAMP 6/8MM BLACK
-
1154814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
120471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
1558011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
1658011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
170014060253 HH COLLAR SCREW M6X25 WS=8HH COLLAR SCREW M6X25 WS=8
-
180014060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
1931008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
200021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2158314060050 SPACER BUSH. F. SPEEDOMET.BRA.SPACER BUSH. F. SPEEDOMET.BRA.
-
2658314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
2750314068000 TRIPMASTER-SWITCH W. CLAMPTRIPMASTER-SWITCH W. CLAMP
-
2850314068050 CLAMP FOR TRIPMASTER-SWITCHCLAMP FOR TRIPMASTER-SWITCH
-
290965040125 FLAT HEAD SCREW DIN0966-M4X20FLAT HEAD SCREW DIN0966-M4X20
-
300934040003 HEXAGON NUT DIN0934-M4HEXAGON NUT DIN0934-M4
-
310017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
