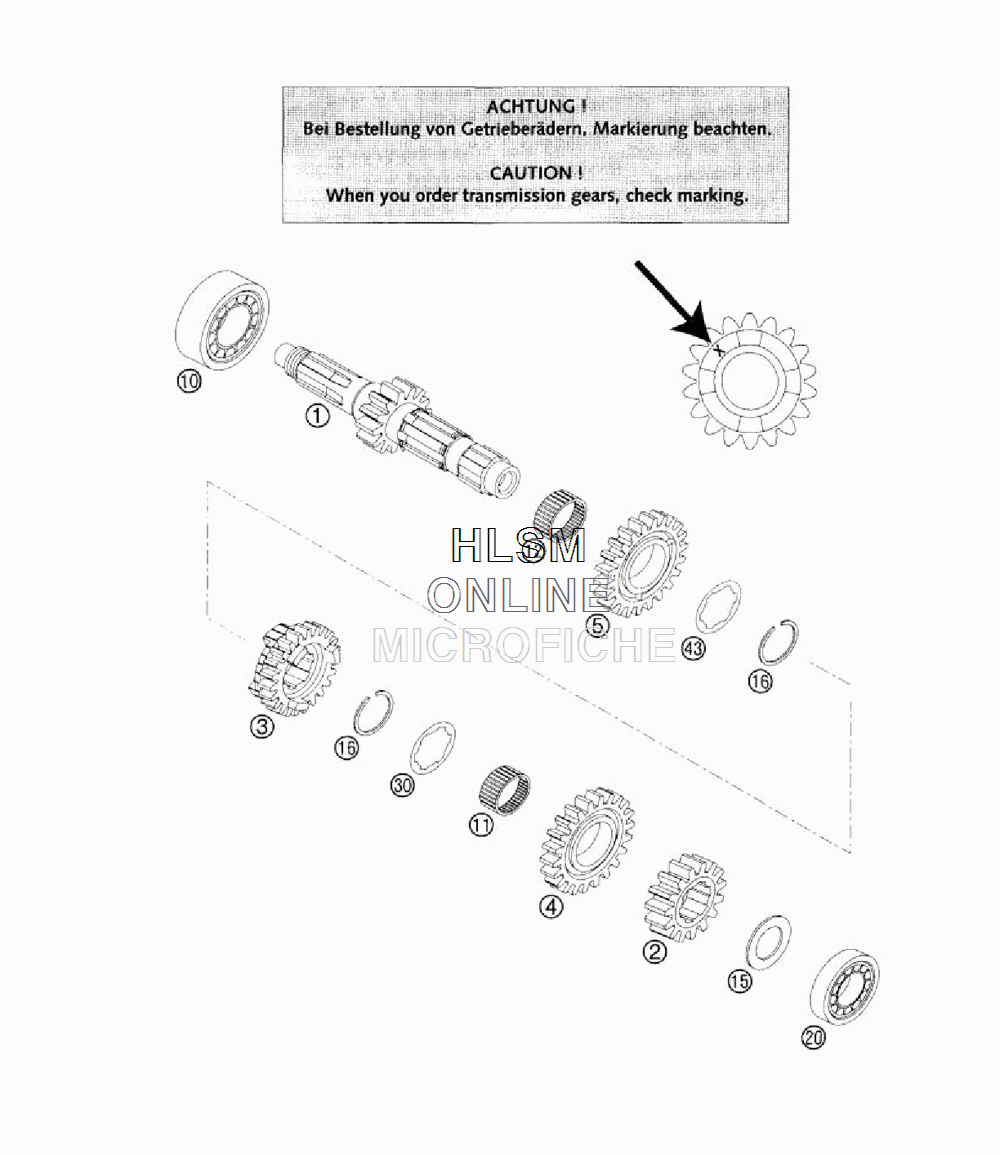

TRANSMISSION - MAIN SHAFT для Ktm 250 SX - 2004 года выпуска
-
№АртикулНазвание
-
154833001000 MAIN SHAFT 14-T "1S14"MAIN SHAFT 14-T "1S14"
-
254833002100 SOLID GEAR 2ND G. 16-T "2S16"SOLID GEAR 2ND G. 16-T "2S16"
-
354833003000 SLIDING GEAR 3RD G.18-T "3S18"SLIDING GEAR 3RD G.18-T "3S18"
-
454833004000 IDLER GEAR 4TH G. 21-T "4S21"IDLER GEAR 4TH G. 21-T "4S21"
-
554833005000 IDLER GEAR 5TH G. 22-T "5S22"IDLER GEAR 5TH G. 22-T "5S22"
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1156533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
120405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
1554633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
1654633096000 AXIAL-CIRCLIP 25X1,64AXIAL-CIRCLIP 25X1,64
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
