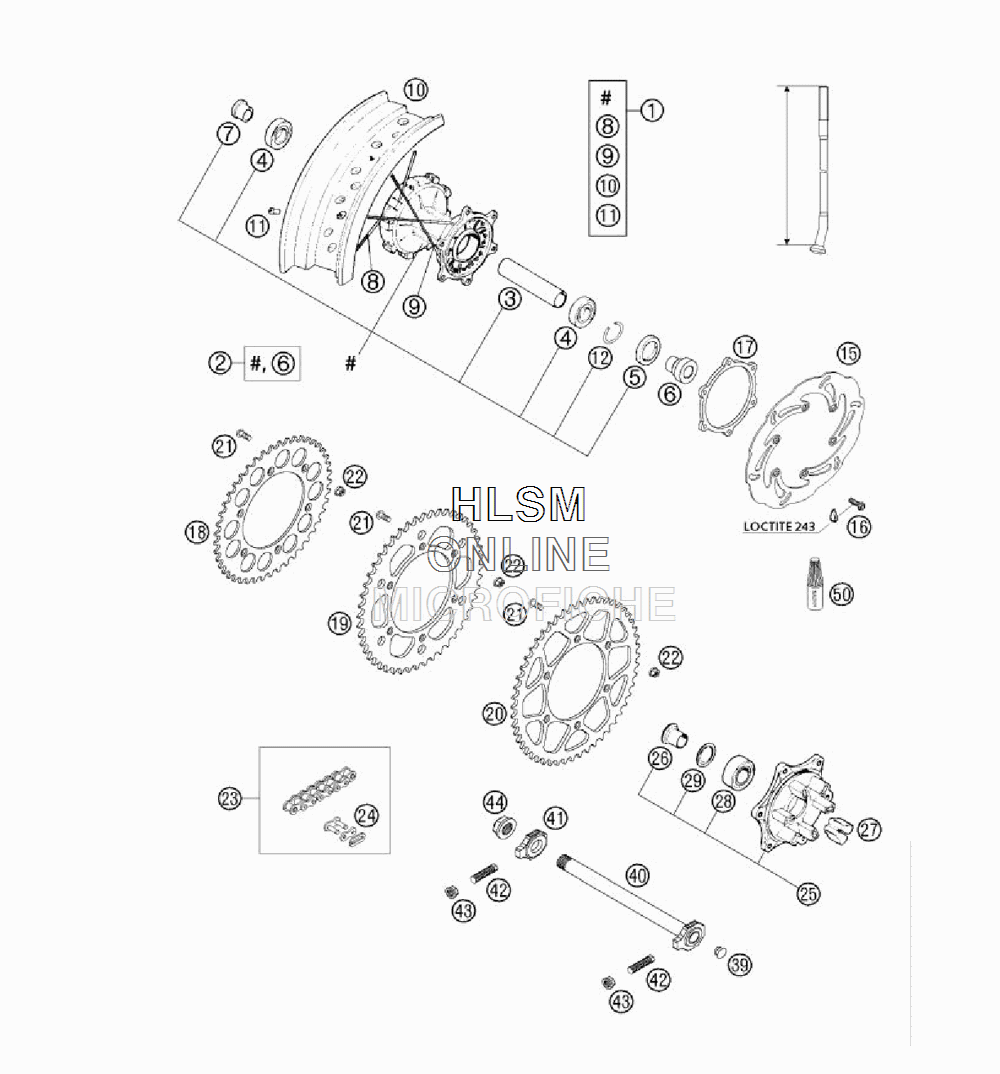

REAR WHEEL для Ktm 625 SMC - 2004 года выпуска
-
№АртикулНазвание
-
158410001444 REAR WHEEL-SP 5,00X17" POLISHEDREAR WHEEL-SP 5,00X17" POLISHED
-
258410010144 REAR WHEEL HUB CPL. SMREAR WHEEL HUB CPL. SM
-
358410011000 BUSHING SPACER TUBE L=98,3MMBUSHING SPACER TUBE L=98,3MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50760325272 SHAFT SEAL RING BSHAFT SEAL RING B
-
658410017000 BUSHING FOR REAR WHEEL SMBUSHING FOR REAR WHEEL SM
-
754610416300 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
858310171201 SPOKE M5X201-16G 17"SPOKE M5X201-16G 17"
-
958310071188 SPOKE M5X188-26G 17"SPOKE M5X188-26G 17"
-
1058410070100 REAR RIM 5X17" POLISHEDREAR RIM 5X17" POLISHED
-
1158309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
120472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
1558310060100 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1659009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
1758410061000 DISTANCE RING F. BRAKE DISCDISTANCE RING F. BRAKE DISC
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 X-RING CHAIN 5/8X1/4" +M.LINK 10.9SELF LOCKING NUT M8 X-RING CHAIN 5/8X1/4" +M.LINK 10.9
-
2350310265114 114 ROLLS REGINA X-RING CHAIN 5/8X1/4" +M.LINK114 ROLLS REGINA X-RING CHAIN 5/8X1/4" +M.LINK
-
2350310265118 118 ROLLS REGINA X-RING CHAIN 5/8X1/4" +M.LINK118 ROLLS REGINA X-RING CHAIN 5/8X1/4" +M.LINK
-
2450310266000 MASTER LINK 5/8X1/4" X-RING REGINAMASTER LINK 5/8X1/4" X-RING REGINA
-
2550310050144 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2654610417300 BUSH. F.SPROCKETSUPPORT L=25MMBUSH. F.SPROCKETSUPPORT L=25MM
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
280625032057 GR. BALL BEARING 3205B-2RSRTNGGR. BALL BEARING 3205B-2RSRTNG
-
2954610018000 SEAL WASHER 3205 AVSEAL WASHER 3205 AV
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4058410085044 WHEEL SPINDLE RE.CPL.L=270MWHEEL SPINDLE RE.CPL.L=270M
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
506899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
