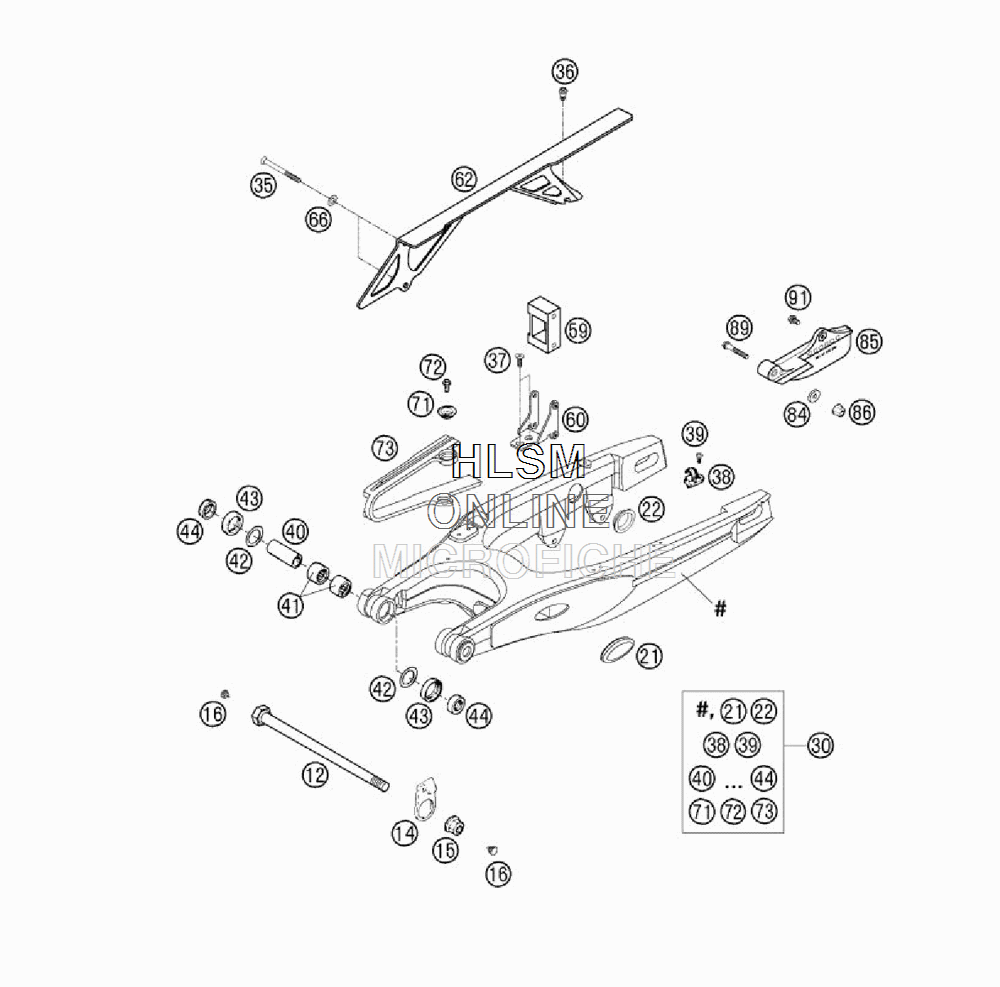

SWINGARM для Ktm 625 SMC - 2004 года выпуска
-
№АртикулНазвание
-
1254603014100 SWINGARM BOLT KPL. L=253SWINGARM BOLT KPL. L=253
-
1450230211000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
1654403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2158404041000 CLOSING COVER SWINGARM SMCLOSING COVER SWINGARM SM
-
2258404041100 CLOSING COVER ROUNDCLOSING COVER ROUND
-
3058404130044 SWINGARM CPL. SUPERMOTOSWINGARM CPL. SUPERMOTO
-
350991060553 FLAT HEAD SCREW DIN7991 M6X55FLAT HEAD SCREW DIN7991 M6X55
-
3659001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
370991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
3854611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
390010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
4050203081700 BUSHING SLEEVE 15X20X38,75BUSHING SLEEVE 15X20X38,75
-
4159004031000 NEEDLE BUSH HK2012VNEEDLE BUSH HK2012V
-
4259004033100 WASHER 20X32X0,8WASHER 20X32X0,8
-
430760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
4454603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
5951007066600 CHAIN GUIDECHAIN GUIDE
-
6058307068300 SUPPORT F. CHAIN GUIDESUPPORT F. CHAIN GUIDE
-
6258404060000 CHAINGUARD SM,CHAINGUARD SM,
-
6658404060051 WASHER F. CHAINGUARD SMWASHER F. CHAINGUARD SM
-
7172210079000 BUCKETBUCKET
-
720015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
7358404066000 CHAIN SLIDING GUARD SMCHAIN SLIDING GUARD SM
-
8450232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
8558404070000 CHAIN GUIDE CPL. REARCHAIN GUIDE CPL. REAR
-
8656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
890015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
910015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
