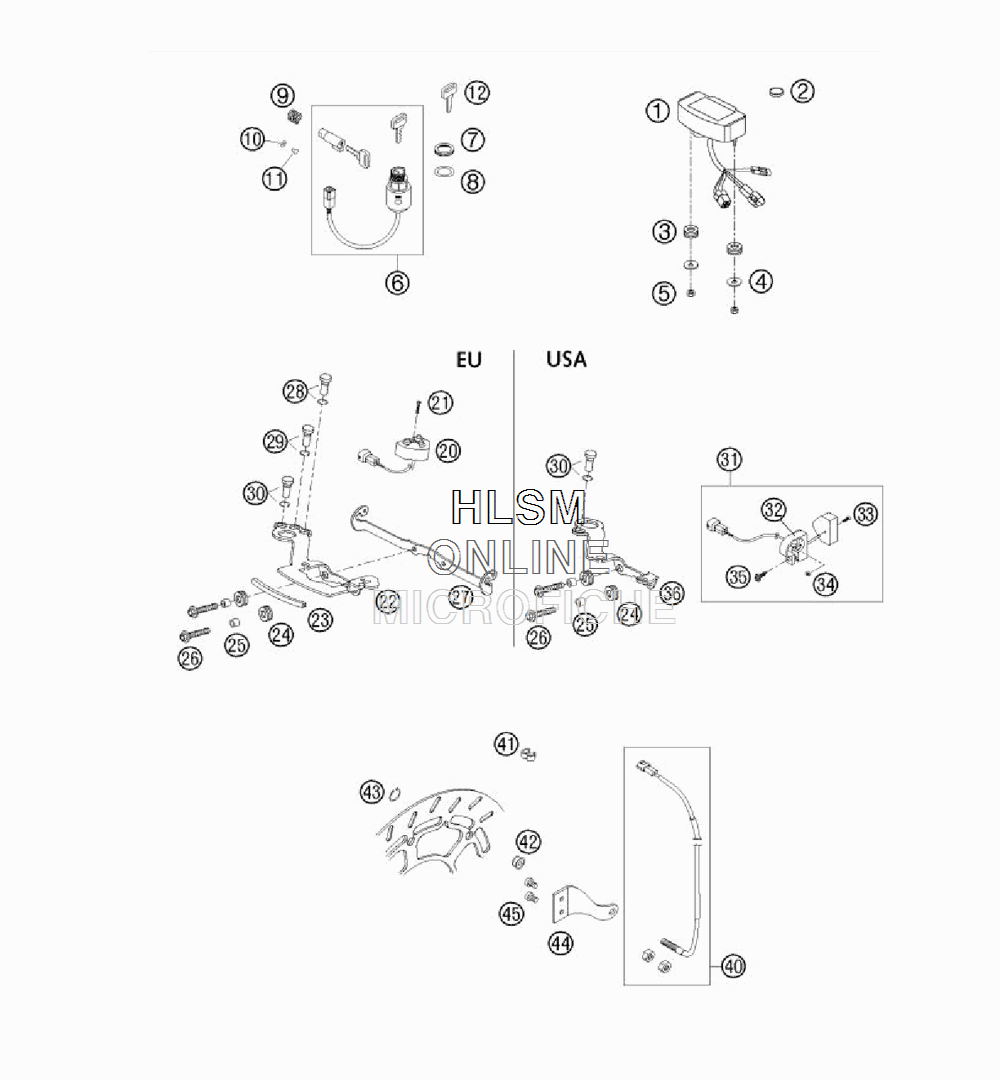

SPEEDOMETER M.A.E для Ktm 625 SMC - 2004 года выпуска
-
№АртикулНазвание
-
158314069400 SPEEDOMETER KM/H F. 17"SPEEDOMETER KM/H F. 17"
-
158314069500 SPEEDOMETER MPH F. 17"SPEEDOMETER MPH F. 17"
-
258314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
358214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
40021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
50985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
658411066400 LOCK SYSTEMLOCK SYSTEM
-
658411066544 LOCK SYSTEMLOCK SYSTEM
-
750311066050 IGNITION LOCK NUT M24X1IGNITION LOCK NUT M24X1
-
858411066450 WASHER F. IGNITION LOCKWASHER F. IGNITION LOCK
-
912003007052 SPRING L=16MMSPRING L=16MM
-
100137030003 SPRING WASHER DIN137 B3SPRING WASHER DIN137 B3
-
1145002040091 GROOVED NAIL RIVETO AF10GROOVED NAIL RIVETO AF10
-
1240011166200 KEY BLANK 2-STROKE/HUSABERGKEY BLANK 2-STROKE/HUSABERG
-
2058314069200 TRIPMASTER-SWITCH DIGI-SPEEDO.TRIPMASTER-SWITCH DIGI-SPEEDO.
-
210965040251 FLAT HEAD SCREW M4X25FLAT HEAD SCREW M4X25
-
2258314060200 SPEEDOMET.BRACKETSPEEDOMET.BRACKET
-
2358312085100 EDGE PROTECTOR PER METER 0,097 METEREDGE PROTECTOR PER METER 0,097 METER
-
2431008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2558011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
260014060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2758314033100 FLASHER BRACKETFLASHER BRACKET
-
2858011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
2958011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
3058011023300 NEUTRAL INDIC. LIGHT GREENNEUTRAL INDIC. LIGHT GREEN
-
3150314068000 TRIPMASTER-SWITCH W. CLAMPTRIPMASTER-SWITCH W. CLAMP
-
3250314068050 CLAMP FOR TRIPMASTER-SWITCHCLAMP FOR TRIPMASTER-SWITCH
-
330965040125 FLAT HEAD SCREW DIN0966-M 4X20FLAT HEAD SCREW DIN0966-M 4X20
-
340934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
350017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
3658314060300 SPEEDOM.BRACKETSPEEDOM.BRACKET
-
4058314069251 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
4155011022100 CLAMP 6/8MM BLACKCLAMP 6/8MM BLACK
-
4258214069050 SENSOR MAGNETSENSOR MAGNET
-
430471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
4458314052000 BRACKET F. SENSOR SMBRACKET F. SENSOR SM
-
450084040063 CYL.HEAD SCREW DIN0084-M 4X 6ACYL.HEAD SCREW DIN0084-M 4X 6A
