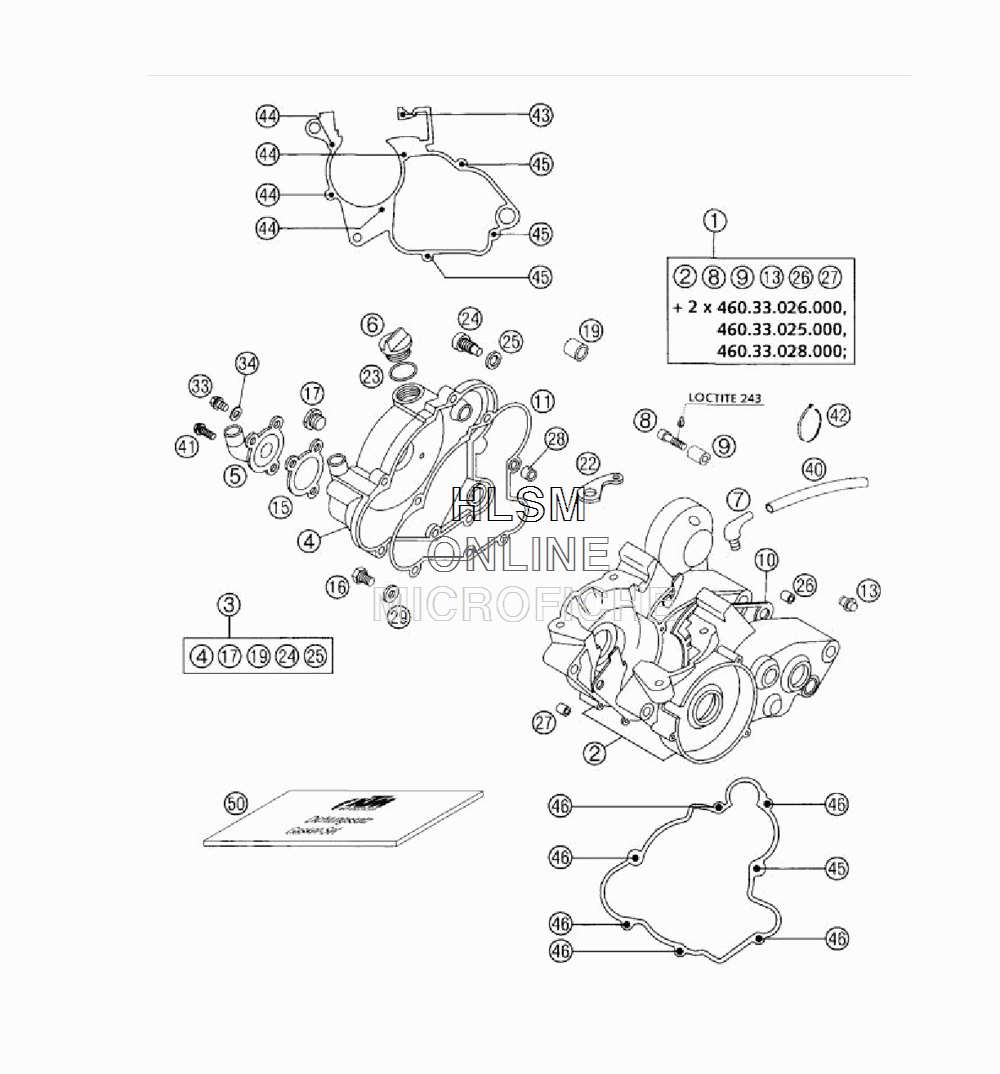

ENGINE CASE для Ktm 65 SX - 2004 года выпуска
-
№АртикулНазвание
-
146030000244 ENGINE CASE CPL.ENGINE CASE CPL.
-
346030001200 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
545135052000 WATER PUMP COVERWATER PUMP COVER
-
658030020000 PLUG M 24X3PLUG M 24X3
-
751030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
1046030039000 ENGINE CASE GASKETENGINE CASE GASKET
-
1146030025000 CLUTCH COVER GASKET INSIDECLUTCH COVER GASKET INSIDE
-
1545135053000 GASKET WATER PUMP COVERGASKET WATER PUMP COVER
-
1646030021100 OIL DRAIN PLUG M10 WS=13OIL DRAIN PLUG M10 WS=13
-
1749030095000 LENS TYPE GN 540LENS TYPE GN 540
-
1946033068000 PRESS IN BUSH KICKSTARTERPRESS IN BUSH KICKSTARTER
-
2246032059100 RELEASE LEVERRELEASE LEVER
-
230770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
2446033067000 SPECIAL SCREWSPECIAL SCREW
-
2546033067100 WASHER F. SPECIAL SCREWWASHER F. SPECIAL SCREW
-
2646030023100 DOWEL 17X15DOWEL 17X15
-
2746030023000 DOWEL 12X14,5DOWEL 12X14,5
-
2846030024000 DOWEL 9X15DOWEL 9X15
-
290603101420 COPPER GASKET 10,2X14X2 MMCOPPER GASKET 10,2X14X2 MM
-
330015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
340603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
4031007007001 PVC-HOSE 5 X 8 MMPVC-HOSE 5 X 8 MM
-
410015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
4244011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
430912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
440912060453 AH SCREW DIN0912-M 6X45AH SCREW DIN0912-M 6X45
-
450912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
460912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
5046030099100 GASKET SET CPL. 65 SX 2002GASKET SET CPL. 65 SX 2002
