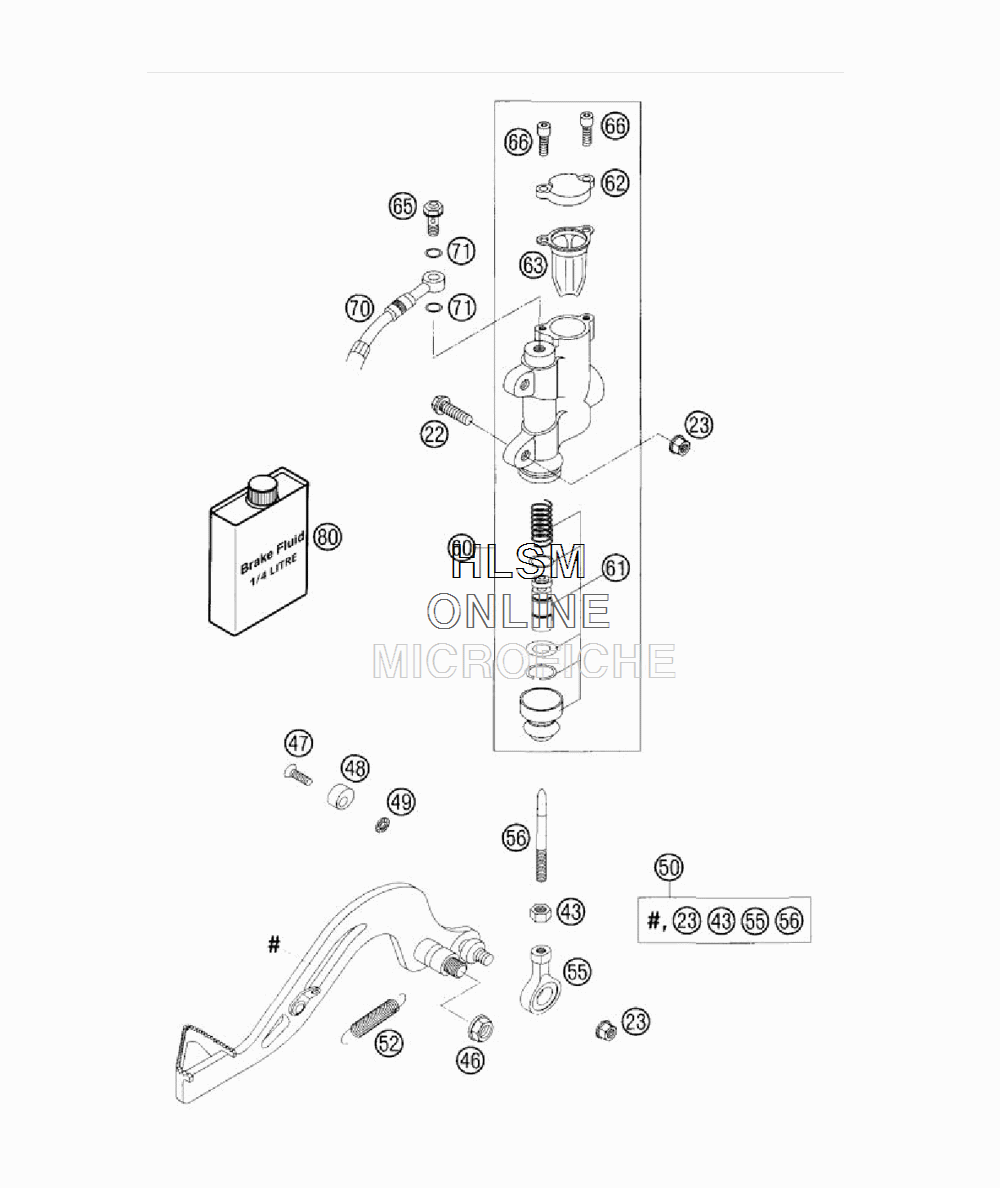

REAR BRAKE CONTROL для Ktm 65 SX - 2004 года выпуска
-
№АртикулНазвание
-
220015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
430934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
4654310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
470991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
4858303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
490797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
5046003060244 REAR BRAKELEVER CPL.REAR BRAKELEVER CPL.
-
5254603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
5554603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
5654603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
6046113060000 REAR BRAKE CYL.REAR BRAKE CYL.
-
6147013061000 REP. SET PISTON REARREP. SET PISTON REAR
-
6247013062000 CYLINDER COVER REARCYLINDER COVER REAR
-
6347013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6546113325000 HOLLOW SCREW M6HOLLOW SCREW M6
-
660912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
7046113070000 BRAKE HOSE REARBRAKE HOSE REAR
-
710770060019 O-RING 6,00X1,00O-RING 6,00X1,00
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
