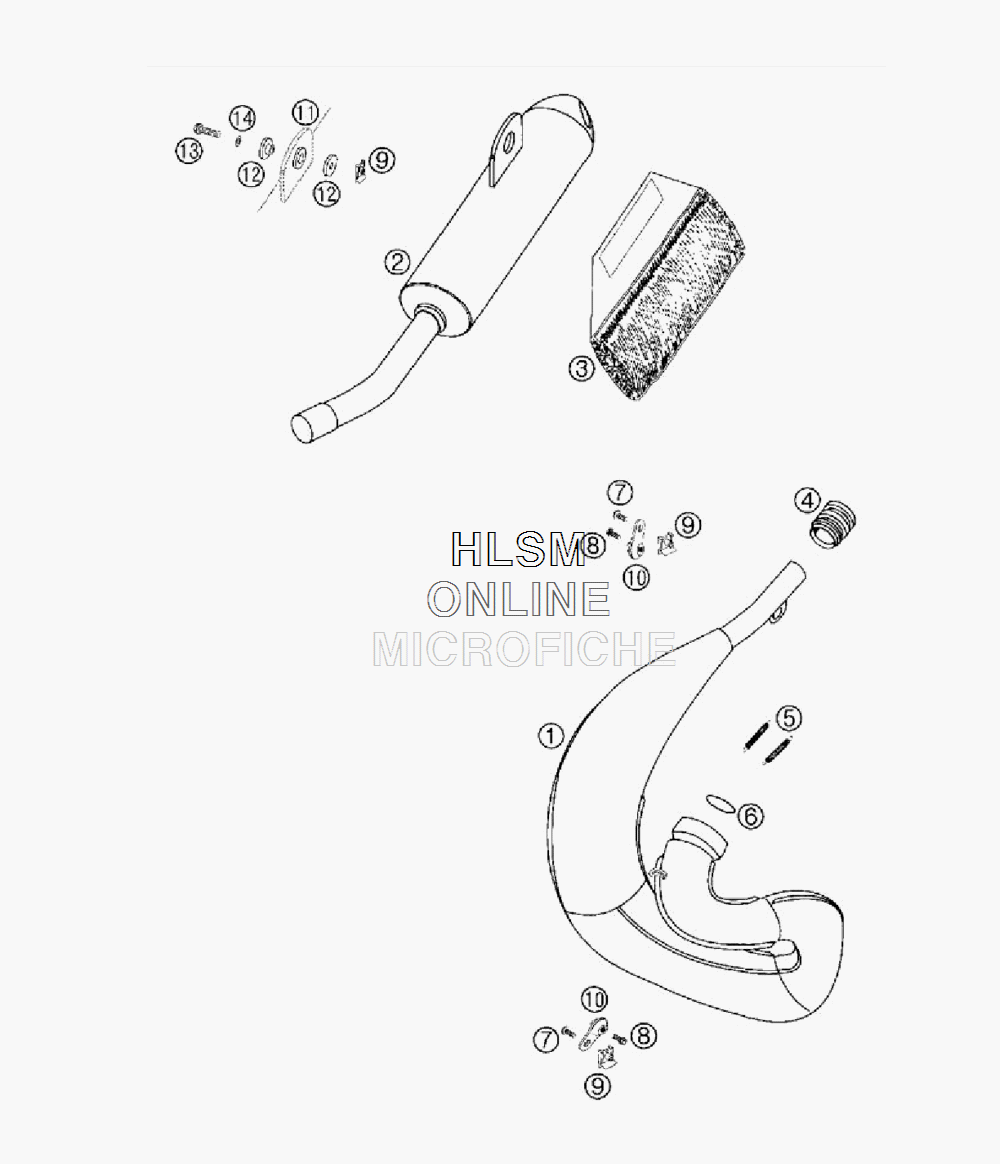

EXHAUST SYSTEM для Ktm 65 SX - 2004 года выпуска
-
№АртикулНазвание
-
146105007000 EXHAUST PIPEEXHAUST PIPE
-
246105079000 SILENCERSILENCER
-
345105079056 ROCKWOOL PREFOMED (110 GRAMM TOTAL WEIGHT)ROCKWOOL PREFOMED (110 GRAMM TOTAL WEIGHT)
-
454605057000 RUBBER SLEEVE D=21MM/23MMRUBBER SLEEVE D=21MM/23MM
-
550305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
60770350030 O-RING 35,00X3,00 VITONO-RING 35,00X3,00 VITON
-
70014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
80015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
954603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1050305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
1154605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1254605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
130015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
140137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
