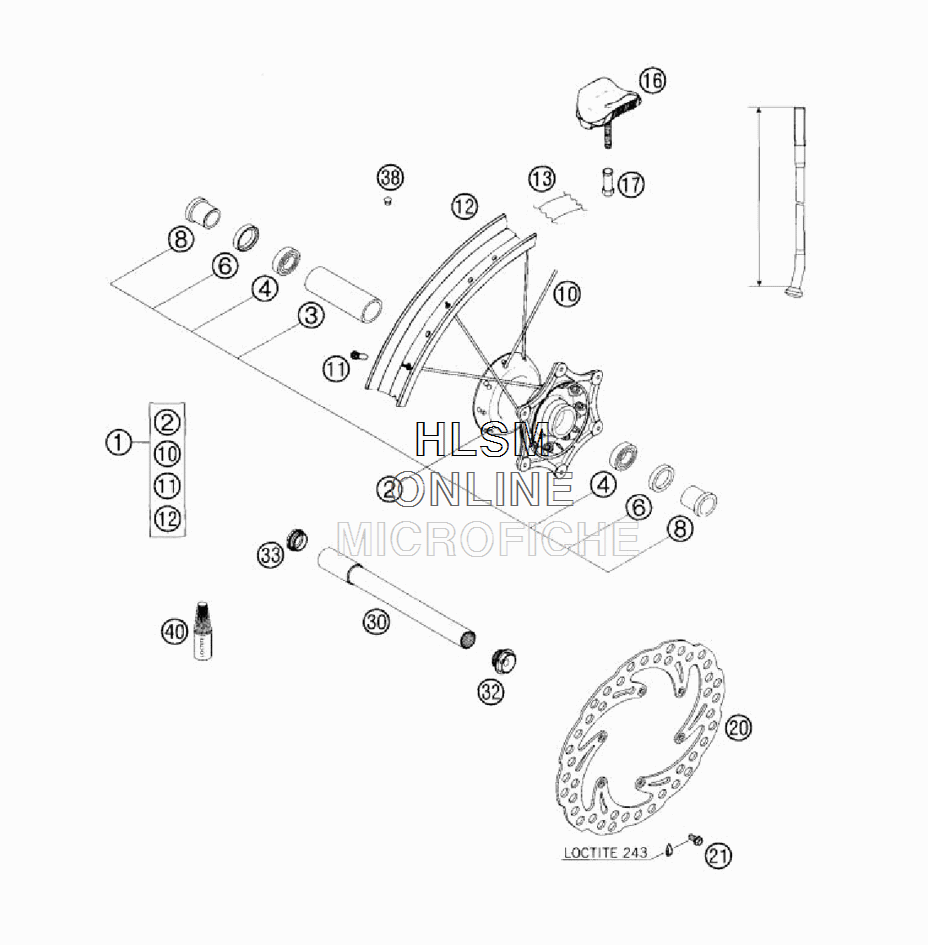

FRONT WHEEL для Ktm 300 EXC - 2005 года выпуска
-
№АртикулНазвание
-
154809001144 FRONT WHEEL 1,6X21DID (EURO)FRONT WHEEL 1,6X21DID (EURO)
-
154809001244 FRONT WHEEL 1,6X21EXCEL (USA)FRONT WHEEL 1,6X21EXCEL (USA)
-
25480901004496 FRONT HUB CPL. GOLDFRONT HUB CPL. GOLD
-
354809011000 BEA.SPACERTUBE35X2L=79,4BEA.SPACERTUBE35X2L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
854809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1050309072228 SPOKE M4,5X228-15G 21 DDESPOKE M4,5X228-15G 21 DDE
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
1254609070200 FRONT RIM 1,6X21 DID (EURO)FRONT RIM 1,6X21 DID (EURO)
-
1254809070000 FRONT RIM 1,6X21 EXCEL ALI (USA)FRONT RIM 1,6X21 EXCEL ALI (USA)
-
1350309073000 RIM BAND 21RIM BAND 21
-
1651009100100 RIM LOCK VM1(1,60)RIM LOCK VM1(1,60)
-
1750310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2054809060100 BRAKE DISC FRONT D=260MMBRAKE DISC FRONT D=260MM
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3054809081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
406899785 LOCTITE243 BLUE 6CCMLOCTITE243 BLUE 6CCM
