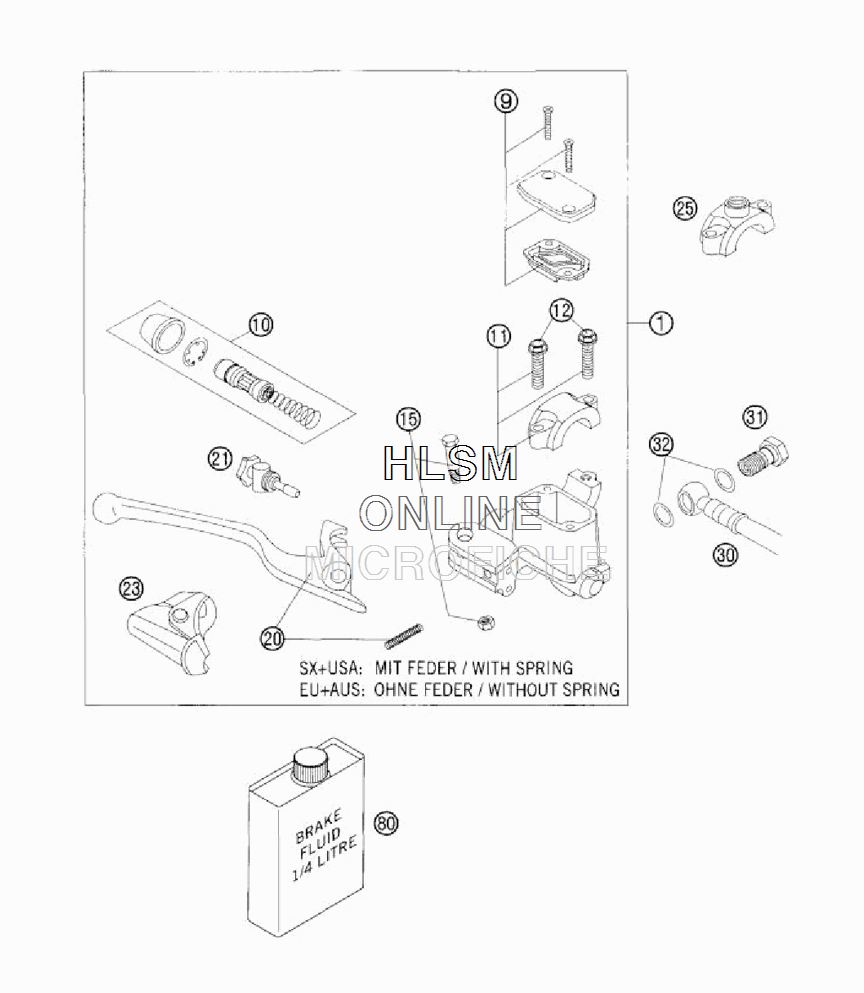

HAND BRAKE CYLINDER для Ktm 300 EXC - 2005 года выпуска
-
№АртикулНазвание
-
154813001000 HAND BRAKE CYLINDER CPL. (USA)HAND BRAKE CYLINDER CPL. (USA)
-
154813001100 HAND BRAKE CYLINDER CPL. (EURO)HAND BRAKE CYLINDER CPL. (EURO)
-
950313003000 HAND BRAKE CYL.COVER CPL.NATUREHAND BRAKE CYL.COVER CPL.NATURE
-
1054813008000 REP..SET PISTON D=10MM (USA)REP..SET PISTON D=10MM (USA)
-
1054813008100 REP.SET PISTON D=10MM (EURO)REP.SET PISTON D=10MM (EURO)
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054813002000 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
2154813007000 ADJUSTING SCREW CPL. (USA)ADJUSTING SCREW CPL. (USA)
-
2154813007100 ADJUSTING SCREW CPL. (EURO)ADJUSTING SCREW CPL. (EURO)
-
2350313004000 PROTECTION CAP HAND BRAKE CYLPROTECTION CAP HAND BRAKE CYL
-
2558012040150 CLAMP FOR MIRRORCLAMP FOR MIRROR
-
3059013011000 BRAKE HOSE FRONT 1300MMBRAKE HOSE FRONT 1300MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16XJCU-SEAL RING DIN7603-10X16XJ
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
