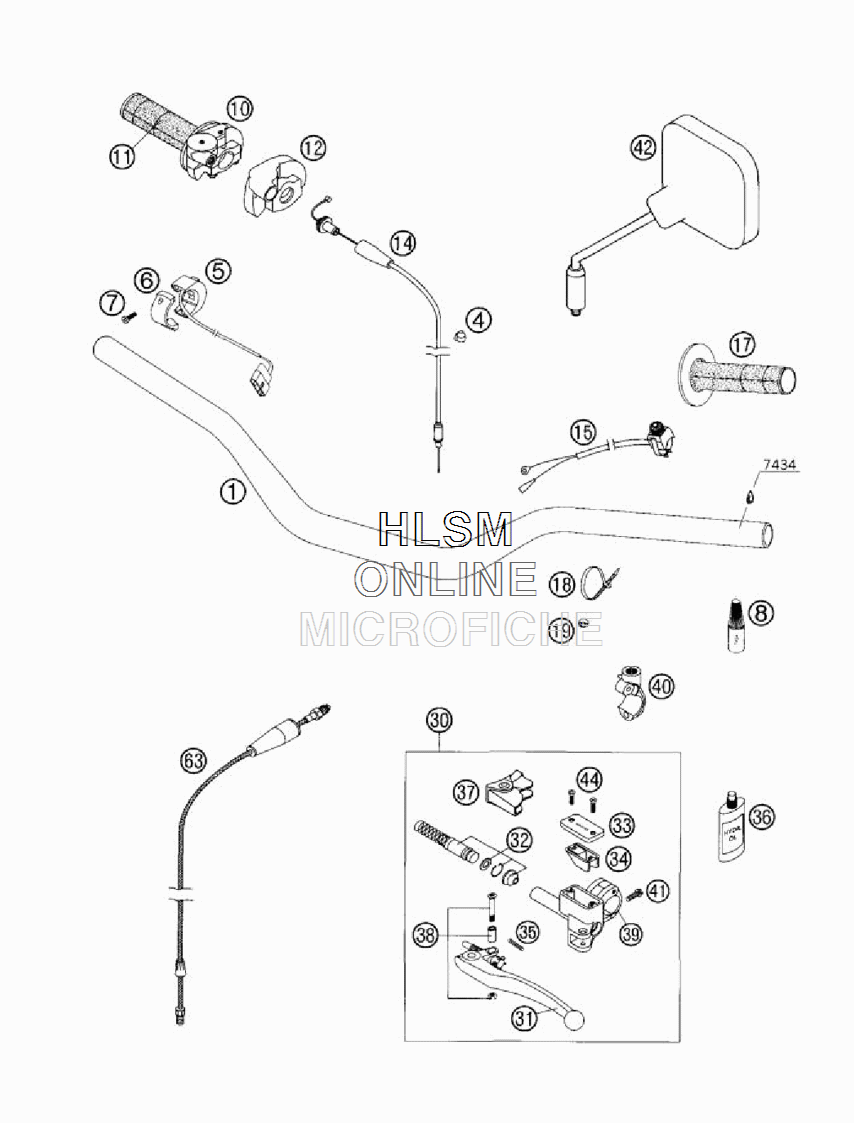

HANDLEBAR W/ CONTROLS для Ktm 300 EXC - 2005 года выпуска
-
№АртикулНазвание
-
154802001100 HANDLEBAR D=28MM HIGHHANDLEBAR D=28MM HIGH
-
457013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
550311074100 ENGINE STOP SWITCH CEVENGINE STOP SWITCH CEV
-
650311074050 CLAMP ENGINE STOP SWITCHCLAMP ENGINE STOP SWITCH
-
70985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
86899792 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1054802010000 THR.TWISTCR/PCPL. W.O.CA.THR.TWISTCR/PCPL. W.O.CA.
-
1154802013000 TWIST GRIP COVER RENTHALTWIST GRIP COVER RENTHAL
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
1450302091000 THROTTLE C.THROTTLE C.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1754802039000 FIXED GRIP RENTHALFIXED GRIP RENTHAL
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1950301089000 SPACER BUSHING 6X10X5SPACER BUSHING 6X10X5
-
3050302030200 MASTER CYLINDER CPL. 9,5MMMASTER CYLINDER CPL. 9,5MM
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3259002032000 REP.KIT PISTON 9,5MM RAC.REP.KIT PISTON 9,5MM RAC.
-
3350302033100 COVER HYD.CLUTCH 2TCOVER HYD.CLUTCH 2T
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECTCAP FOR LEVER PERCHPROTECTCAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
4059002044000 CLAMP MIRROR WITH PINCLAMP MIRROR WITH PIN
-
410015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
4258012040000 REAR MIRROR USREAR MIRROR US
-
4258012140000 REAR MIRROR R/SREAR MIRROR R/S
-
440965040123 FLAT HEAD SCREW DIN0965-M4X12FLAT HEAD SCREW DIN0965-M4X12
-
6354732063100 CLUTCH PIPECLUTCH PIPE
