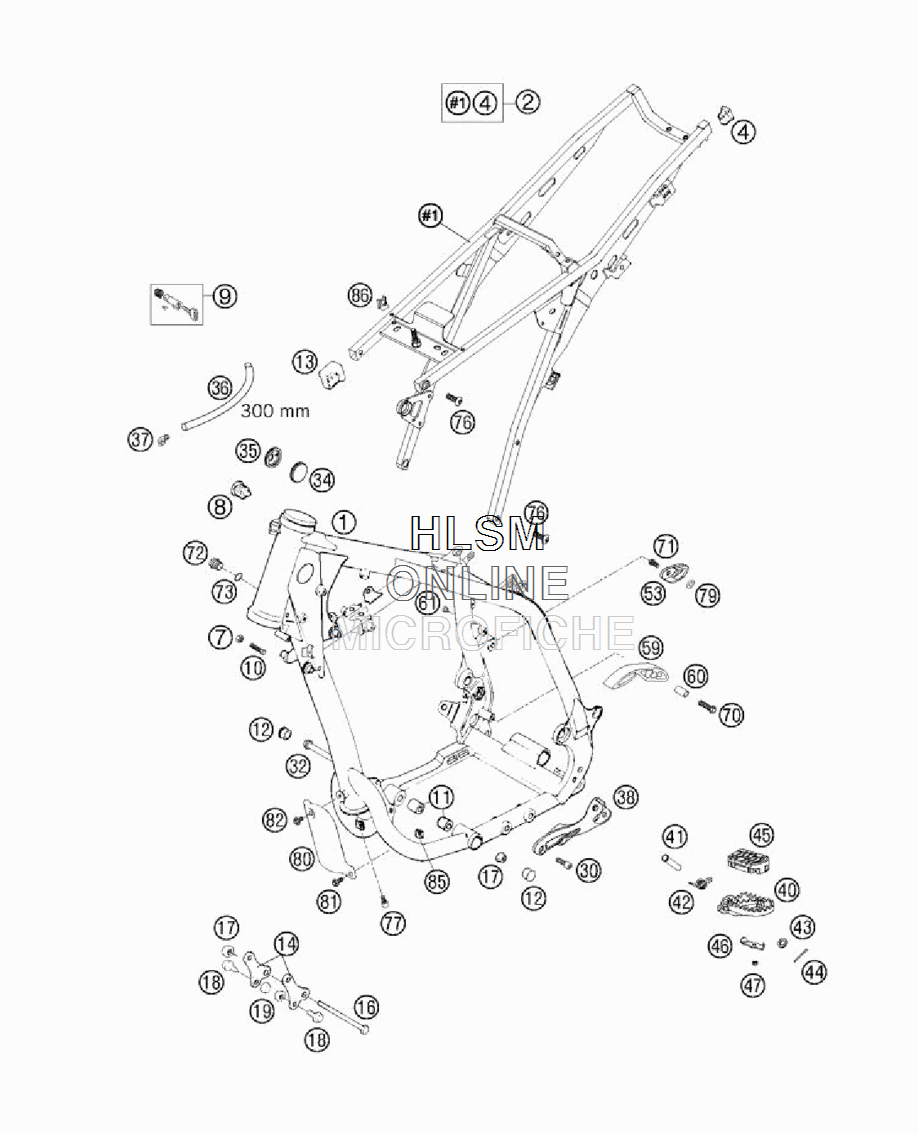

FRAME W/ SUB FRAME для Ktm 625 SMC - 2005 года выпуска
-
№АртикулНазвание
-
15860300104430 FRAME CPL. "EG05"FRAME CPL. "EG05"
-
25860300204430 SUBFRAME CPL. "P5"SUBFRAME CPL. "P5"
-
458303002090 PLUG 12 X 17 MMPLUG 12 X 17 MM
-
70934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
842007049000 PLASTIC CAPPLASTIC CAP
-
971003007000 STEERING HEAD LOCK CPL. ZADISTEERING HEAD LOCK CPL. ZADI
-
1059001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
1158003012000 SPACER ROLLER 10,3X20X22SPACER ROLLER 10,3X20X22
-
1271001012100 PVC CAP D=22MMPVC CAP D=22MM
-
1358307015000 TANK SUPPORTTANK SUPPORT
-
1458303055000 ENGINE SUPPORT AGWENGINE SUPPORT AGW
-
1658403013000 ENGINE BRAC.SCREW M10X110 WS13ENGINE BRAC.SCREW M10X110 WS13
-
1754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1849109481052 HH COLLAR SCREW M 8X16 WS=13HH COLLAR SCREW M 8X16 WS=13
-
1954310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
300912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
3258403014000 ENGINE BRAC.SCREW M10X160 WS13ENGINE BRAC.SCREW M10X160 WS13
-
3454606004000 PLUG 37MMPLUG 37MM
-
3554606004100 PLUG 37MM PERFORATEDPLUG 37MM PERFORATED
-
3655007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
3750303089000 ANGEL PIECEANGEL PIECE
-
3858403038000 FOOTREST BRACKET L/S ALUFOOTREST BRACKET L/S ALU
-
4059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLTBOLT
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
