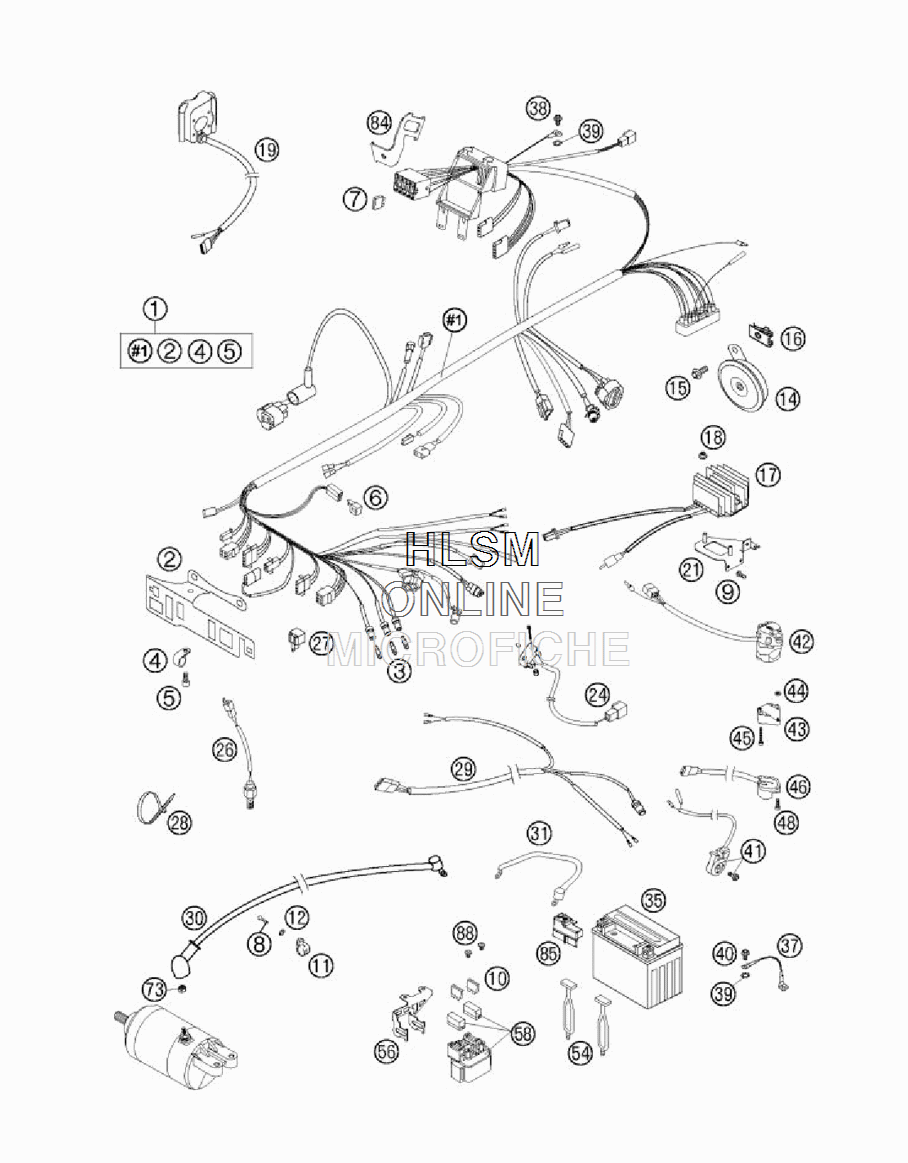

WIRING HARNESS для Ktm 625 SMC - 2005 года выпуска
-
№АртикулНазвание
-
158611075100 WIRING HARNESSWIRING HARNESS
-
259011083000 SUPPORT BRACKET BLACKSUPPORT BRACKET BLACK
-
349111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
457013070100 PVC-CLAMP 7,9 MM HEYCO 3355PVC-CLAMP 7,9 MM HEYCO 3355
-
50912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
658411096100 DIODEDIODE
-
758011109110 FUSE 10 AFUSE 10 A
-
80981480133 SHEET MET.SCR.DIN7981- 4,8X13SHEET MET.SCR.DIN7981- 4,8X13
-
90016050121 SCREWSCREW
-
1058011109120 FUSE 20 AFUSE 20 A
-
1145001070000 BRAKE CABLE CLAMP RSGU 9/12BRAKE CABLE CLAMP RSGU 9/12
-
120797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
1450311060100 DC HORN L.E.B.DC HORN L.E.B.
-
150014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1758411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
1856509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
1959011074100 START-STOP SWITCH AUS/GBSTART-STOP SWITCH AUS/GB
-
1959011074200 START-STOP TIP SWITCH 2001 EUSTART-STOP TIP SWITCH 2001 EU
-
2158611055000 BRACKET REGULATORBRACKET REGULATOR
-
2458411050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
2650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
2744611207200 FLASHER UNITFLASHER UNIT
-
2844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2844011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
2958611076000 WIRING HARNESS REARWIRING HARNESS REAR
-
3058611059000 STARTERCABLE L=810MMSTARTERCABLE L=810MM
-
3158611059050 BATTERY CABLE L=140MMBATTERY CABLE L=140MM
-
3558411053100 BATTERY 12V 8,6AHBATTERY 12V 8,6AH
-
3758611097000 GROUND CABLE L=80MMGROUND CABLE L=80MM
-
380015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
3958411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
400015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
4158411045000 SIDE STAND SWITCH CPL.SIDE STAND SWITCH CPL.
-
4250311070100 H.LIGHT SWITCH CEVH.LIGHT SWITCH CEV
-
4313011070060 ADAPTERADAPTER
-
440934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
450084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
4650311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
480985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
5450303018000 RUBBERRUBBER
-
5658611058050 BRACKET STARTER RELAYBRACKET STARTER RELAY
-
5858211058000 STARTER RELAY 12V '99STARTER RELAY 12V '99
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
8458611087050 BRACKET FUSE BOX 05BRACKET FUSE BOX 05
-
8558611059060 TERMINAL POST COVER 05TERMINAL POST COVER 05
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
