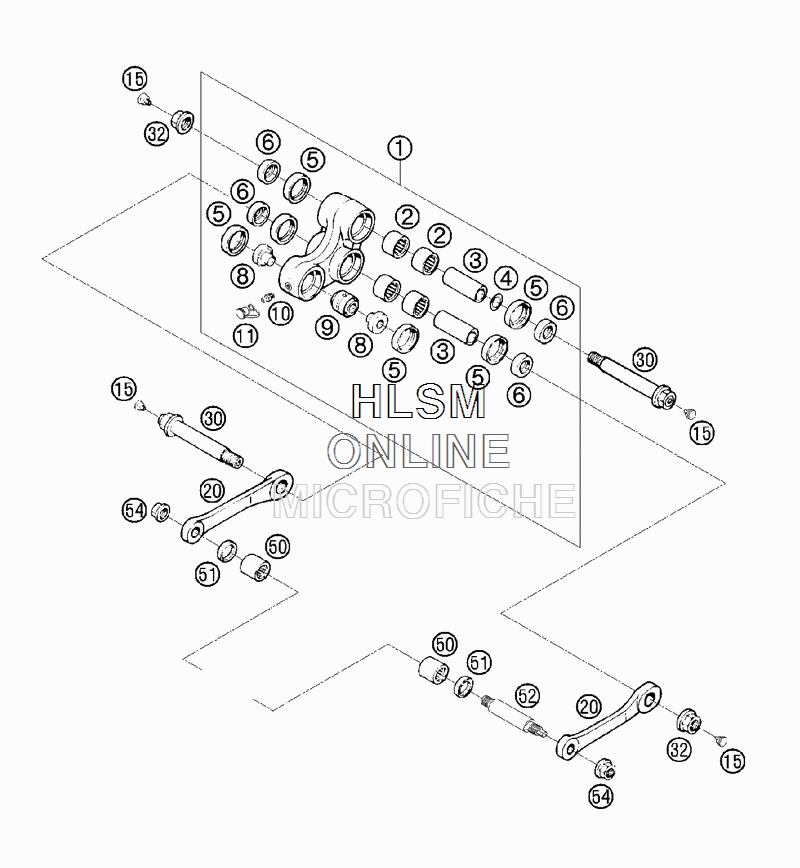

PRO LEVER SYSTEM для Ktm 640 LC4 ENDURO - 2005 года выпуска
-
№АртикулНазвание
-
158303080244 ROCKER ARM CPL. FORGEDROCKER ARM CPL. FORGED
-
254603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
354603081000 BUSHING SLEEVE 15 X 20 X 48BUSHING SLEEVE 15 X 20 X 48
-
454603090010 STEEL WASHER 15,2X19X0,1STEEL WASHER 15,2X19X0,1
-
454603090020 STEEL WASHER 15,2X19X0,2STEEL WASHER 15,2X19X0,2
-
454603090030 STEEL WASHER 15,2X19X0,3STEEL WASHER 15,2X19X0,3
-
50760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
658303090000 SPAC.F.SHAFT SEALRING 15X25X11SPAC.F.SHAFT SEALRING 15X25X11
-
858303085100 BUSHING FOR BEARING LINK '95BUSHING FOR BEARING LINK '95
-
954203083050 LINK BEARING 12X25X22 (16-1061)LINK BEARING 12X25X22 (16-1061)
-
1072003035000 GREASE FITTING M6 STRAIGHTGREASE FITTING M6 STRAIGHT
-
1153003099000 CAP WITH LOOP REDCAP WITH LOOP RED
-
1554403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2058303083000 LINKAGE ARM L=127MMLINKAGE ARM L=127MM
-
3054603182044 BOLT CPL. 15X98MM / M14X1,5BOLT CPL. 15X98MM / M14X1,5
-
3254603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
5056503195100 NEEDLE BEARING HK 1816NEEDLE BEARING HK 1816
-
510760182442 SHAFT SEAL RING 18X24X4SHAFT SEAL RING 18X24X4
-
5258303084100 BUSHING BOLT CONNECTING BARBUSHING BOLT CONNECTING BAR
-
5449103415000 SELF LOCK. NUT M12X1,75 WS=19SELF LOCK. NUT M12X1,75 WS=19
