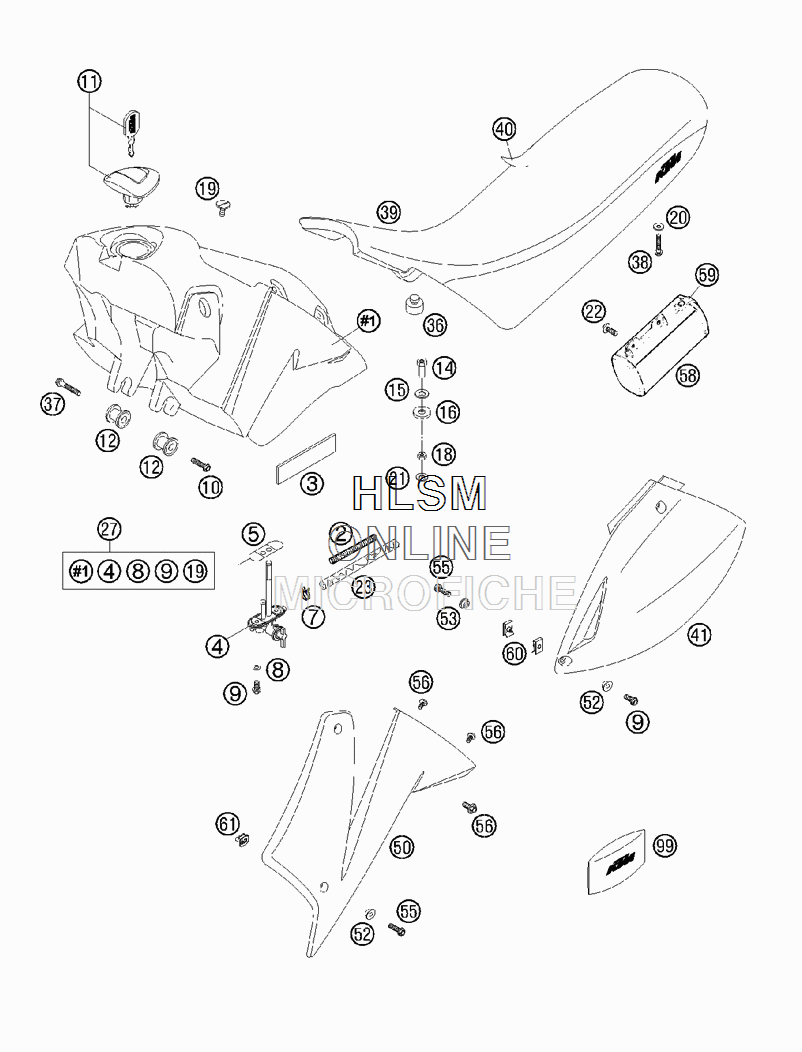

TANK - SEAT - COVER для Ktm 640 LC4 ENDURO - 2005 года выпуска
-
№АртикулНазвание
-
258036006100 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
354601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
451107004000 FUEL COCK CPL.MIKUNI CK-69FUEL COCK CPL.MIKUNI CK-69
-
558307106100 GASKET FUEL COCK MIKUNIGASKET FUEL COCK MIKUNI
-
758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
90015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
100015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1158407008100 TANK PLUG LC4 USATANK PLUG LC4 USA
-
1258307113250 TANK BUSHING CPL. 12 X 34 X 25TANK BUSHING CPL. 12 X 34 X 25
-
1458307014000 SPECIAL NUT M8SPECIAL NUT M8
-
1531004001100 WASHER 10,5 X 21 X 3WASHER 10,5 X 21 X 3
-
1651005067100 INSOLATE WASHER 12X28X3INSOLATE WASHER 12X28X3
-
180934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1958407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
2050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
210125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
220014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2354435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
2758407013300 FUEL TANK 11LI.CPL.LC4 BLACKFUEL TANK 11LI.CPL.LC4 BLACK
-
3658407040060 PLUG FOR SEATPLUG FOR SEAT
-
370015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
380015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
3958407040800 SEAT STANDARDSEAT STANDARD
-
4058407040850 SEAT COVERSEAT COVER
-
415840804100004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
-
415840804210004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
-
505840805000004 SPOILER L/S ORANGESPOILER L/S ORANGE
-
505840805100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
550015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
560014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
5858012058000 TOOL BOX CPL.TOOL BOX CPL.
-
5958012058050 RUBBER FOR TOOL BOXRUBBER FOR TOOL BOX
-
6054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
6150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
9958329099000 TOOL SETTOOL SET
