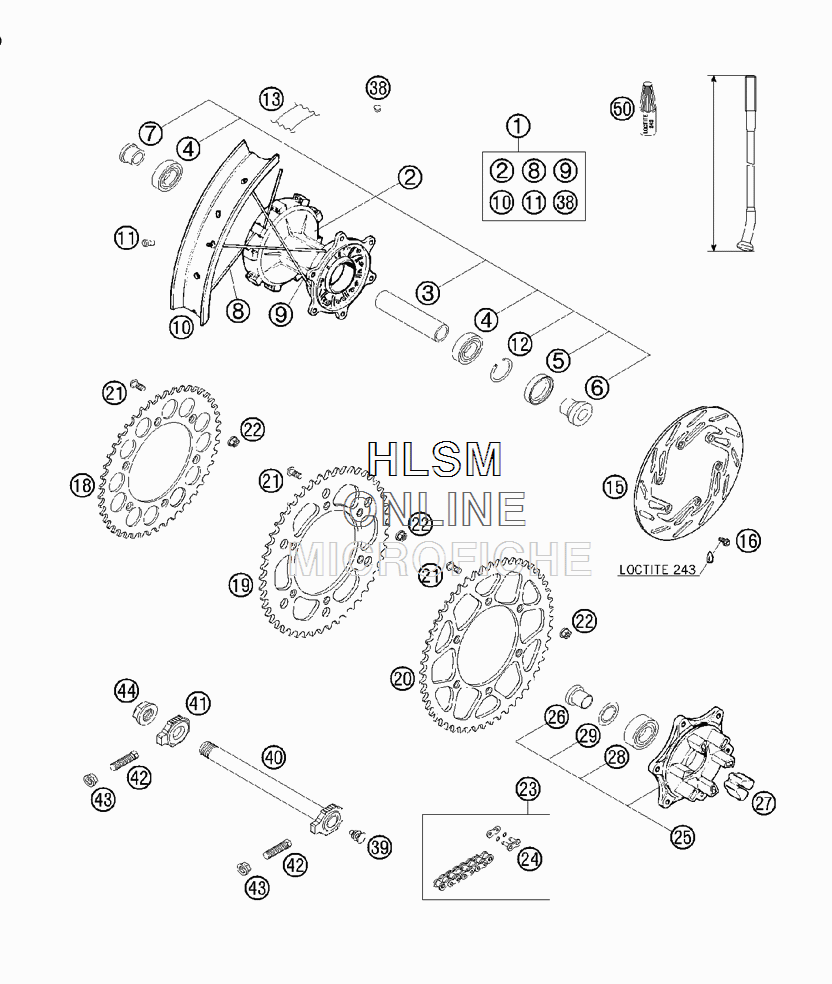

REAR WHEEL 18'' DAMPED для Ktm 640 LC4 ENDURO - 2005 года выпуска
-
№АртикулНазвание
-
158410001544 REAR WHEEL CPL. DAMPED 2,5X18"REAR WHEEL CPL. DAMPED 2,5X18"
-
258410010044 REAR WHEEL HUB DAMPED CPL.REAR WHEEL HUB DAMPED CPL.
-
358410011000 BUSHING SPACER TUBE L=98,3MMBUSHING SPACER TUBE L=98,3MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50760325272 SHAFT SEAL RING 32X52X7 BSHAFT SEAL RING 32X52X7 B
-
658410016000 BUSHING FOR HUBBUSHING FOR HUB
-
754610416300 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
854610471000 SPOKE M5X223-10G 18"SPOKE M5X223-10G 18"
-
950310071197 SPOKE M5X197-10G 18" DDESPOKE M5X197-10G 18" DDE
-
1058010470100 REAR RIM 2,50X18" DIDREAR RIM 2,50X18" DID
-
1158309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
120472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
1358410073200 RIM BAND REAR 2MMRIM BAND REAR 2MM
-
1558010060600 REAR BRAKE DISK 220MM COUNTERSREAR BRAKE DISK 220MM COUNTERS
-
1659009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350310800118 CHAIN X-RING 118 ROLLS REGINACHAIN X-RING 118 ROLLS REGINA
-
2450310366000 MASTER LINK 520 ZRDK REGINAMASTER LINK 520 ZRDK REGINA
-
2558310050144 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2654610417300 BUSH. F.SPROCKETSUPPORT L=25MMBUSH. F.SPROCKETSUPPORT L=25MM
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
280625032057 GR. BALL BEARING 3205B-2RSRTNGGR. BALL BEARING 3205B-2RSRTNG
-
2954610018000 SEAL WASHER 3205 AVSEAL WASHER 3205 AV
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5 'HEXAGON NUT M20X1,5 '
-
506899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
