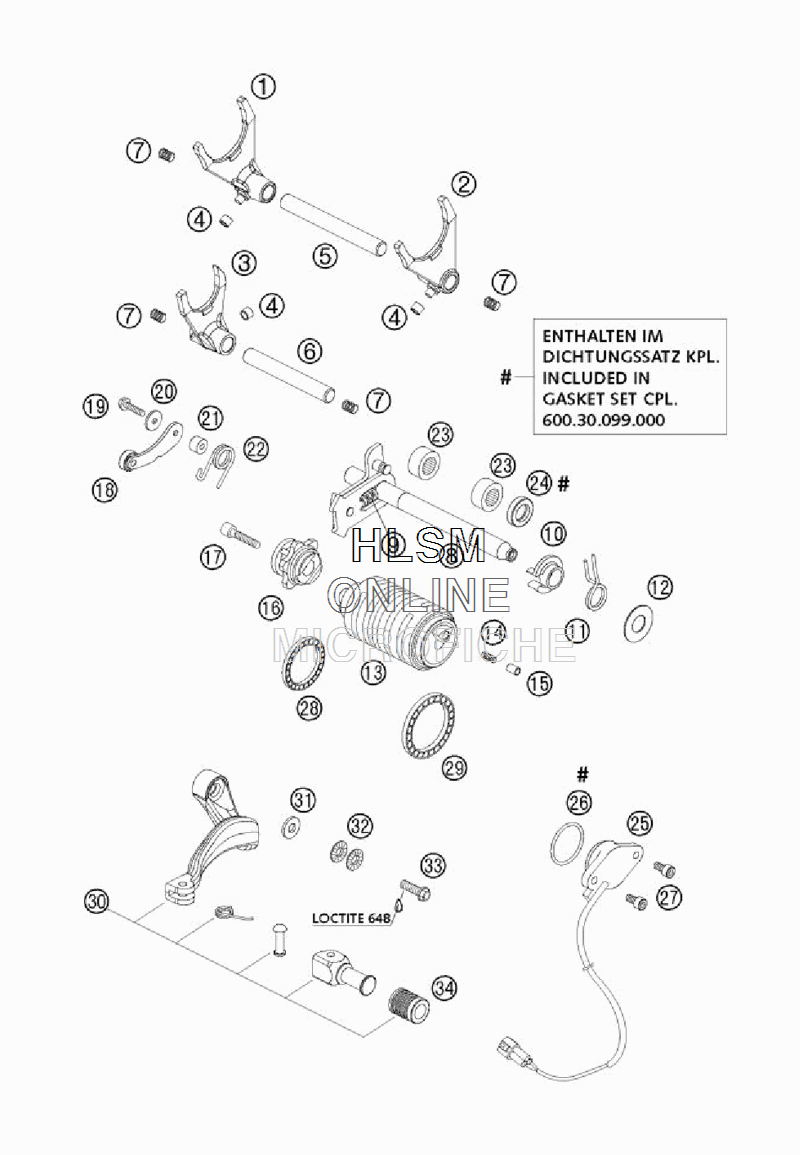

SHIFTING MECHANISM для Ktm 950 ADVENTURE US - 2005 года выпуска
-
№АртикулНазвание
-
160034001000 SHIFT FORK 1-4 GEARSHIFT FORK 1-4 GEAR
-
260034002000 SHIFT FORK 2-3 GEARSHIFT FORK 2-3 GEAR
-
360034003000 SHIFT FORK 5-6 GEARSHIFT FORK 5-6 GEAR
-
450334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
559034020000 SHIFT RAIL 11,8X105MMSHIFT RAIL 11,8X105MM
-
659034019000 SHIFT RAIL 11,8X89MMSHIFT RAIL 11,8X89MM
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
860034005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
956534013100 SPANNER SPRING 0,8MMSPANNER SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
1154634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
1254634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
1360034012100 SHIFT ROLLER STEELSHIFT ROLLER STEEL
-
1460034014000 CONTACT SPRINGCONTACT SPRING
-
1560034037000 CONTACT BOLTCONTACT BOLT
-
1660034015044 SHIFT ARRESTING CPL.SHIFT ARRESTING CPL.
-
170984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
1860034024044 ARRESTING LEVER CPL.ARRESTING LEVER CPL.
-
190015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
200349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
2154634052300 SLEEVESLEEVE
-
2260034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2354632095000 NEEDLE BEAR.HK 1412 14,6X20X12NEEDLE BEAR.HK 1412 14,6X20X12
-
240760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
2560011023000 GEAR-POSITION SENSORGEAR-POSITION SENSOR
-
260770275025 O-RING 27,5X2,5 NBRO-RING 27,5X2,5 NBR
-
270912050103 AH SCREW DIN0912-M 5X10AH SCREW DIN0912-M 5X10
-
280625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
290625068080 GROOVED BALL BEARING 6808 JRC3GROOVED BALL BEARING 6808 JRC3
-
3060034031044 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
3150232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
3250233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
3359009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
3436205018000 RUBBERRUBBER
