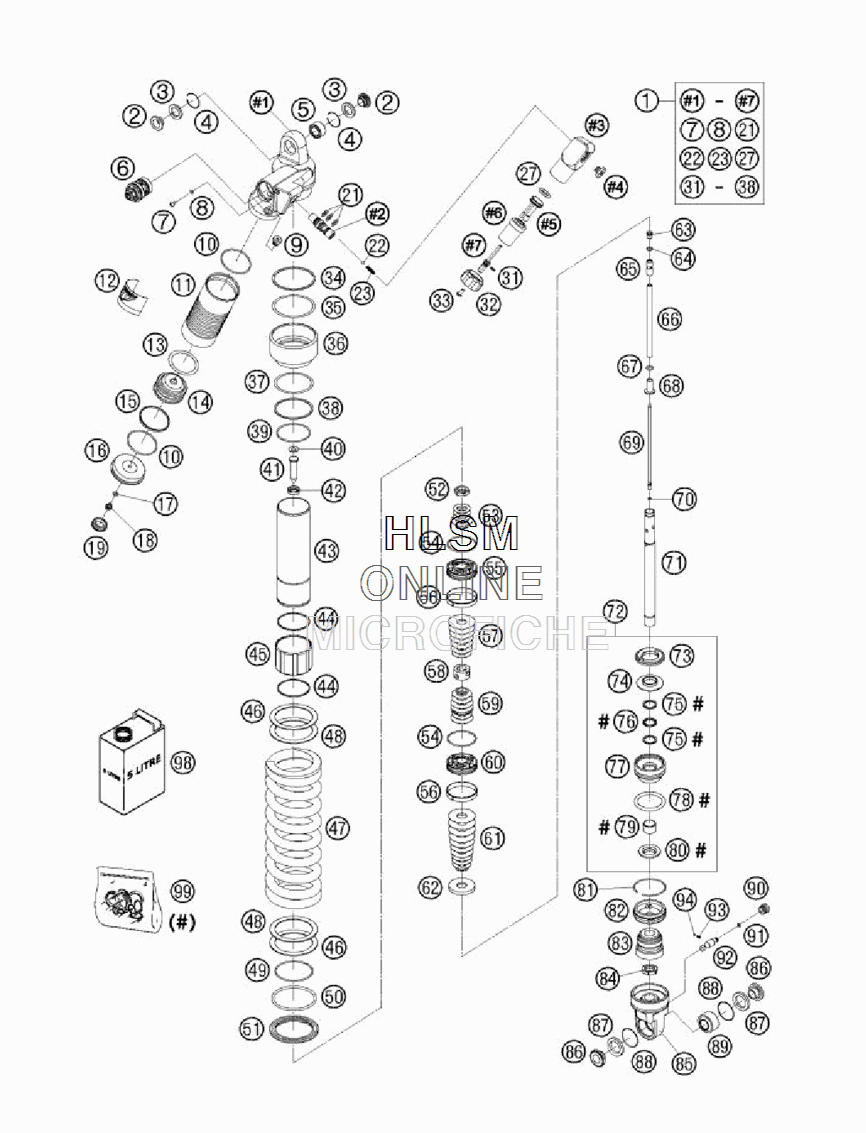

SHOCK ABSORBER - DISASSEMBLED для Ktm 950 ADVENTURE US - 2005 года выпуска
-
№АртикулНазвание
-
11200Y002 PRELOAD ADJUSTER 5018PRELOAD ADJUSTER 5018
-
250180366 ADAPTOR BUSH KGW 14X24ADAPTOR BUSH KGW 14X24
-
346180003 OIL SEAL KGW D=25OIL SEAL KGW D=25
-
450180168 WASHER KGW D=25WASHER KGW D=25
-
550180005 BUSHING KGW 1525 HDBUSHING KGW 1525 HD
-
650180213S4 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
748600058 VENT SCREW M4X6VENT SCREW M4X6
-
848600009 O-RING NBR 3,7X1,6O-RING NBR 3,7X1,6
-
950180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1046810016 O-RING NBR 48X2O-RING NBR 48X2
-
1150180237 RESERVOIR SCREW L=123,5 D=52RESERVOIR SCREW L=123,5 D=52
-
1252000044 STICKER WP KTMSTICKER WP KTM
-
1346180014 O-RING VITON 41X5O-RING VITON 41X5
-
1446180002 SEPARATION PISTON D=52; H=32SEPARATION PISTON D=52; H=32
-
1546180015 PISTON RING 3,9X1,5X156PISTON RING 3,9X1,5X156
-
1650180344 RESERVOIR CAP D=58RESERVOIR CAP D=58
-
1746810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1836120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1946811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
2135480083 O-RING NBR 10X2O-RING NBR 10X2
-
2240540440 STEEL BALL D=5STEEL BALL D=5
-
2346810332 SPRING D=4,8 ADJUST KNOB CCSPRING D=4,8 ADJUST KNOB CC
-
2746810003 O-RING NBR 17X3O-RING NBR 17X3
-
3148600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
3250180381 ADJUST KNOB PAADJUST KNOB PA
-
3346811771 AH SCREW M 5X10AH SCREW M 5X10
-
3450180370 BACKUP RING BG 2700646BACKUP RING BG 2700646
-
3550180369 O-RING NBR 63,09X3,53O-RING NBR 63,09X3,53
-
3650180371 OUTER RING PA LC8OUTER RING PA LC8
-
3750180372 O-RING 57,15X3,53 NBRO-RING 57,15X3,53 NBR
-
3850180373 BACKUP RING BU 2700580BACKUP RING BU 2700580
-
3950180097 O-RING 52X2O-RING 52X2
-
4050180177 WASHER 16X8,2X0,6WASHER 16X8,2X0,6
-
4150180300 NEEDLE D=10 L=37NEEDLE D=10 L=37
-
4250180271 SCREW CAP M20X1; D=11SCREW CAP M20X1; D=11
-
4350180367 TUBE M54X1 L=180 PDSTUBE M54X1 L=180 PDS
-
4450180133 CIRCLIP 50X1,5CIRCLIP 50X1,5
-
4550180081 SPRING GUIDANCE L=40SPRING GUIDANCE L=40
-
4650180114 INTERM.RING SCREW SPRING RET.INTERM.RING SCREW SPRING RET.
-
4791210028 SPRING 140-255 (62) D=15,0SPRING 140-255 (62) D=15,0
-
4850180402 INTERM.RING SPRING RET. H=3,5INTERM.RING SPRING RET. H=3,5
-
4950180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
5050180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
5150180355 SPRING RETAINER D=80SPRING RETAINER D=80
-
5250180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
5350180210 WASHER 16X21X1WASHER 16X21X1
-
5350180209 WASHER 21X36X0,25WASHER 21X36X0,25
-
5350180054 SHIM 16X28X0,20SHIM 16X28X0,20
-
5450180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
5550180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
5650180135 PISTON RING 50-8PISTON RING 50-8
-
5750180074 SHIM 16X32X0,30SHIM 16X32X0,30
-
5750180075 SHIM 16X34X0,30SHIM 16X34X0,30
-
5750180076 SHIM 16X36X0,30SHIM 16X36X0,30
-
5750180068 SHIM 16X38X0,25SHIM 16X38X0,25
-
5750180069 SHIM 16X40X0,25SHIM 16X40X0,25
-
5750180070 SHIM 16X42X0,25SHIM 16X42X0,25
-
5750180062 SHIM 16X44X0,20SHIM 16X44X0,20
-
5850180269 SANDWICH BUSH D25XD16X14,5/DSANDWICH BUSH D25XD16X14,5/D
-
5950180047 SHIM 16X32X0,15SHIM 16X32X0,15
-
5946811637 PRESSURE RING 36X32,25PRESSURE RING 36X32,25
-
5950180008 SHIM 16X22X0,10SHIM 16X22X0,10
-
5950180058 SHIM 16X36X0,20SHIM 16X36X0,20
-
5950180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
5950180056 SHIM 16X32X0,20SHIM 16X32X0,20
-
5950180035 BACKPLATE 16X21X0,30BACKPLATE 16X21X0,30
-
6050180311 PISTON 6+6X7/4,5 VB 1,0PISTON 6+6X7/4,5 VB 1,0
-
6150180036 BACKPLATE 16X22X0,30BACKPLATE 16X22X0,30
-
6150180064 SHIM 16X30X0,25SHIM 16X30X0,25
-
6150180065 SHIM 16X32X0,25SHIM 16X32X0,25
-
6150180066 SHIM 16X34X0,25SHIM 16X34X0,25
-
6150180058 SHIM 16X36X0,20SHIM 16X36X0,20
-
6150180059 SHIM 16X38X0,20SHIM 16X38X0,20
-
6150180069 SHIM 16X40X0,25SHIM 16X40X0,25
-
6150180070 SHIM 16X42X0,25SHIM 16X42X0,25
-
6150180071 SHIM 16X44X0,25SHIM 16X44X0,25
-
6250180401 SHIM REBOUND H16SHIM REBOUND H16
-
6350180200 BUSH M8X1BUSH M8X1
-
6450180157 O-RING VITON 7X1,5O-RING VITON 7X1,5
-
6550180201 NEEDLE SEAT M8X1NEEDLE SEAT M8X1
-
6650180363 TUBE M8X1 L=138TUBE M8X1 L=138
-
6748600049 O-RING NBR 8X2O-RING NBR 8X2
-
6850180279 TUBE ADAPTOR M8X1 L=23TUBE ADAPTOR M8X1 L=23
-
6950180364 NEEDLE L=161NEEDLE L=161
-
7046811265 O-RING VITON 2,2X1,6O-RING VITON 2,2X1,6
-
7150180362 PISTON ROD D=18 M16X1PISTON ROD D=18 M16X1
-
7250180349S1 ADAPTOR CPL. D=50; H=28,5ADAPTOR CPL. D=50; H=28,5
-
7350180107 REBOUND RUBBERREBOUND RUBBER
-
7450180304 STEEL DISC 18,5X43,7X6STEEL DISC 18,5X43,7X6
-
7550180102 BACKUPRING 22,55X1,5BACKUPRING 22,55X1,5
-
7650180101 QUAD RING 18X2,62QUAD RING 18X2,62
-
7750180349 ADAPTOR D=50; H=28,5ADAPTOR D=50; H=28,5
-
7850180103 O-RING 41X5O-RING 41X5
-
7946180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
8050180082 DUST SEAL 1835DUST SEAL 1835
-
8150180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8250180165 COVER D=50COVER D=50
-
8350180276 BUMP RUBBER WP60 D=18-26BUMP RUBBER WP60 D=18-26
-
8450180283 CONTRA NUT M18X1 H=5CONTRA NUT M18X1 H=5
-
8550180358 SHOCK ABS.BOTTOM 54X20X32SHOCK ABS.BOTTOM 54X20X32
-
8650180365 ADAPTOR BUSH KGW D=32 14X32ADAPTOR BUSH KGW D=32 14X32
-
8750180159 SHAFT SEAL RING KGW D=32SHAFT SEAL RING KGW D=32
-
8850180175 CIRCLIP KGW D=32CIRCLIP KGW D=32
-
8950180179 PIVOT BEARING KGW 1632PIVOT BEARING KGW 1632
-
9050180281 RESERVOIR CAP M14X1RESERVOIR CAP M14X1
-
9150180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
9250180280 ADJUSTING SCREW 80 DEG.; L=39ADJUSTING SCREW 80 DEG.; L=39
-
9340540602 SPRING D=2,9; L=6,2SPRING D=2,9; L=6,2
-
9440540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
9850180342S1 SHOCK ABSORBER FLUID 5 LT 0,33 LSHOCK ABSORBER FLUID 5 LT 0,33 L
-
99R12008 REPAIR-KIT GASKET 5018 PDSREPAIR-KIT GASKET 5018 PDS
