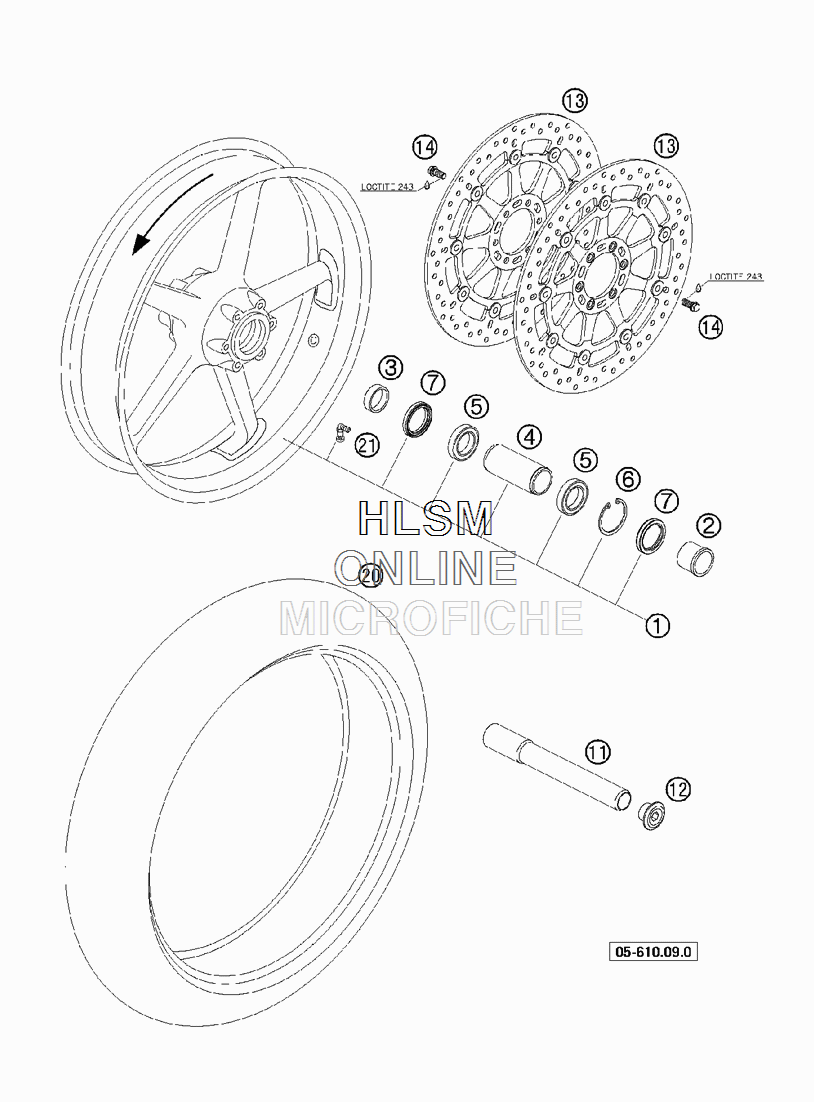

FRONT WHEEL для Ktm 950 SUPERDUKE - 2005 года выпуска
-
№АртикулНазвание
-
161009001044 FRONT WHEEL CPL.FRONT WHEEL CPL.
-
261009012000 SPACER BUSH. FR. WHEEL L/SSPACER BUSH. FR. WHEEL L/S
-
360009013000 SPACER BUSH. FR. WHEEL R/SSPACER BUSH. FR. WHEEL R/S
-
461009011000 BEARING SPACER TUBE FRONTBEARING SPACER TUBE FRONT
-
50625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60472048175 LOCK RING DIN0472-48X1,75LOCK RING DIN0472-48X1,75
-
70760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
1161009081000 WHEEL SPINDEL FRONTWHEEL SPINDEL FRONT
-
1261009082000 AH SCREW M25X1,5 WS=12AH SCREW M25X1,5 WS=12
-
1361009060000 BRAKE DISK FRONT 320MMBRAKE DISK FRONT 320MM
-
1461009062018 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
-
2061009074000 DIABLO T 120/70 ZR17M/C(58W)TLDIABLO T 120/70 ZR17M/C(58W)TL
-
2161009076000 VALVE ANGLED 90°VALVE ANGLED 90°
