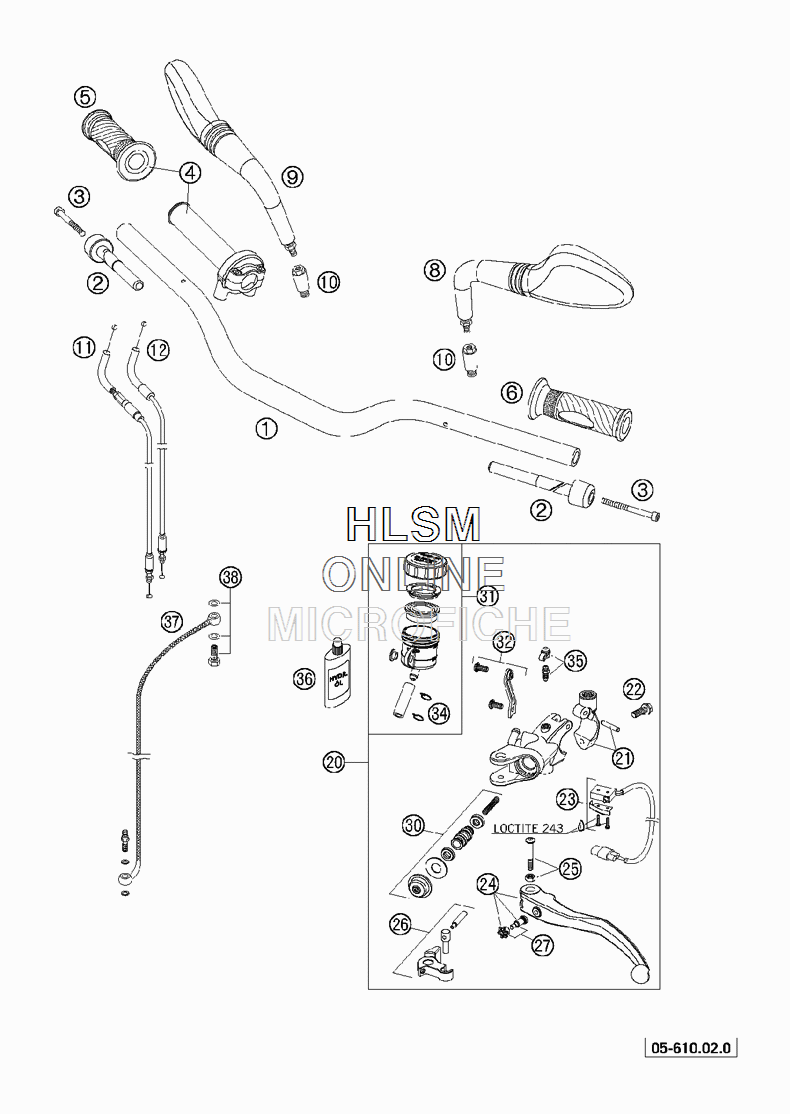

HANDLEBAR W/ CONTROLS для Ktm 950 SUPERDUKE - 2005 года выпуска
-
№АртикулНазвание
-
161002001000 HANDLEBAR ALUHANDLEBAR ALU
-
261002004000 VIBRATIONS ABSORBERVIBRATIONS ABSORBER
-
30912060653 AH SCREW DIN0912-M 6X65AH SCREW DIN0912-M 6X65
-
461002010000 THROTTLE GRIPTHROTTLE GRIP
-
561002013000 TWIST GRIP COVER PERFORATEDTWIST GRIP COVER PERFORATED
-
661002052000 FIXED GRIP PERFORATEDFIXED GRIP PERFORATED
-
858712040000 REAR MIRROR L/S DUKE BLACKREAR MIRROR L/S DUKE BLACK
-
958712041000 REAR MIRROR R/S DUKE BLACKREAR MIRROR R/S DUKE BLACK
-
1058412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
1161002091000 THROTTLE CABLE OPENTHROTTLE CABLE OPEN
-
1261002092000 THROTTLE CABLE CLOSETHROTTLE CABLE CLOSE
-
2061002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
2161002044000 CLAMP MIRROR WITH PINCLAMP MIRROR WITH PIN
-
220015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
2361011049000 CLUTCH SWITCHCLUTCH SWITCH
-
2461002031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
2561002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2661002056000 ROCKER CPL.ROCKER CPL.
-
2761002043000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
3061002032000 REP.SET PISTON D=13REP.SET PISTON D=13
-
3161002055000 RESERVOIR CPL.RESERVOIR CPL.
-
3261002055050 BRACKET AND SCREWS F. RESERV.BRACKET AND SCREWS F. RESERV.
-
3458007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
3561002054000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3761032063000 CLUTCH PIPECLUTCH PIPE
-
3859032062000 HOLLOW SCREW HYDR. CLUTCH CPL.HOLLOW SCREW HYDR. CLUTCH CPL.
