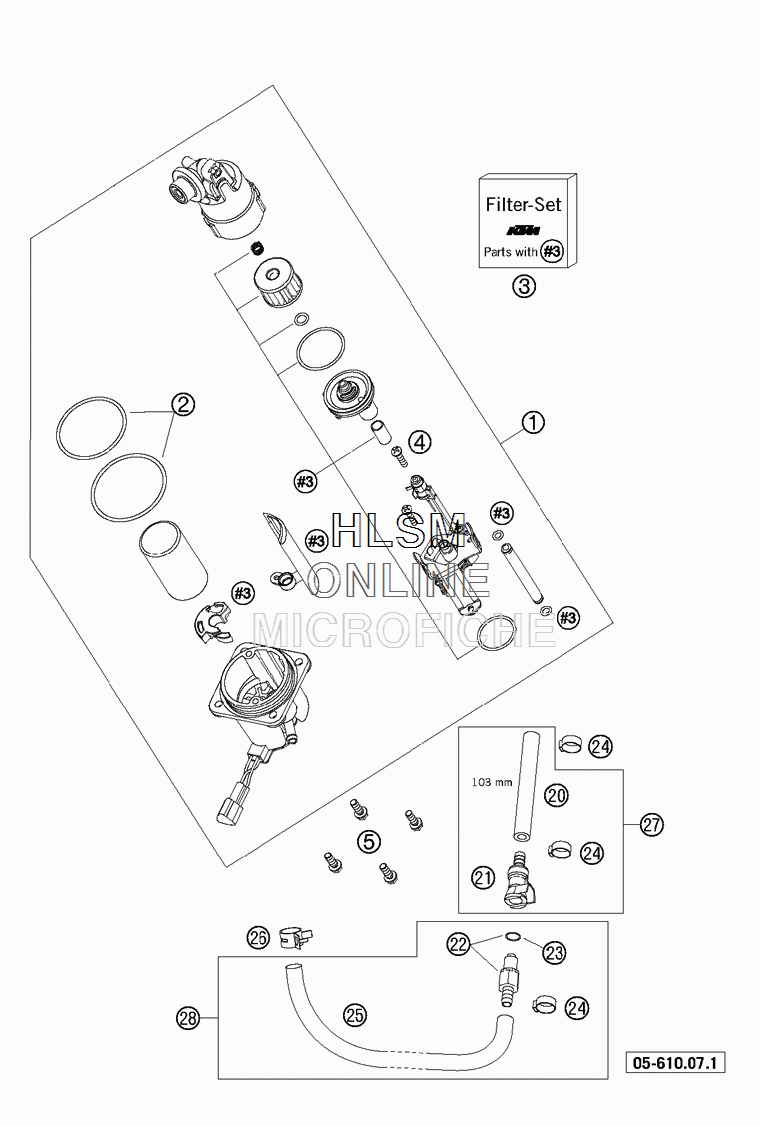

FUEL PUMP для Ktm 950 SUPERDUKE - 2005 года выпуска
-
№АртикулНазвание
-
161007088000 FUEL PUMPFUEL PUMP
-
261007089000 O-RING SET FOR FUEL PUMPO-RING SET FOR FUEL PUMP
-
361007090000 FILTER-SET FUEL PUMPFILTER-SET FUEL PUMP
-
461007091000 SCREW FOR FILTER-SETSCREW FOR FILTER-SET
-
50015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
2060007016001 HOSE 7,5X13,5 PER METERHOSE 7,5X13,5 PER METER
-
215850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
225850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
2358507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
2400050153706 VARIABLE ONE-EAR CLAMP 15,3MMVARIABLE ONE-EAR CLAMP 15,3MM
-
2561007016000 FUEL HOSEFUEL HOSE
-
2600049140121 CLAMP STD DN14CLAMP STD DN14
-
2761007016051 FUEL HOSE 2 CPL.FUEL HOSE 2 CPL.
-
2861007016050 FUEL HOSE 90° 1 CPL.FUEL HOSE 90° 1 CPL.
