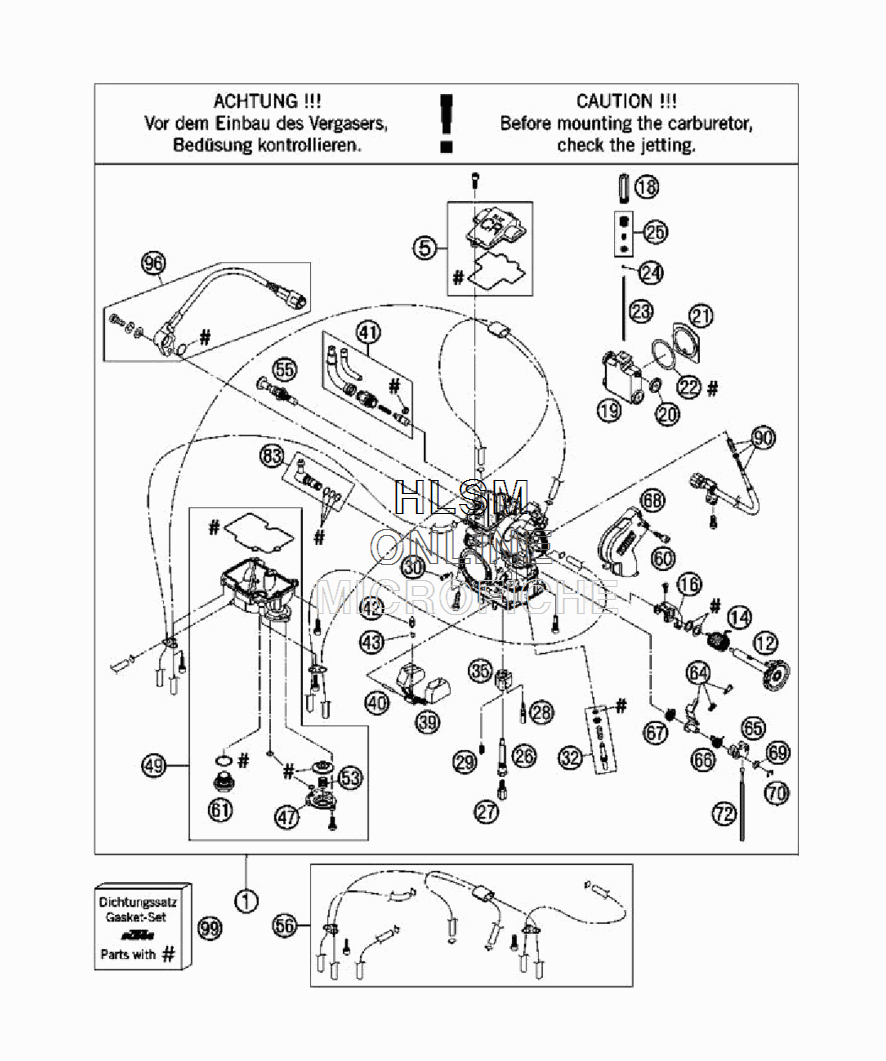

CARBURETOR для Ktm 250 SX-F - 2006 года выпуска
-
№АртикулНазвание
-
177031001000 CARBURETORCARBURETOR
-
557331027044 CARBURETOR COVER WITH GASKETCARBURETOR COVER WITH GASKET
-
1257331046100 THROTTLE SHAFT CPL.THROTTLE SHAFT CPL.
-
1457331046050 COIL SPRING THROTTLE SHAFTCOIL SPRING THROTTLE SHAFT
-
1657331035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1859031029010 SLIDE STOPSLIDE STOP
-
1957331035000 THROTTLE VALVE CPL.THROTTLE VALVE CPL.
-
2059031035050 BUSHING THROTTLE VALVEBUSHING THROTTLE VALVE
-
2157331035153 GASKET PLATE THROTTLE VALVEGASKET PLATE THROTTLE VALVE
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
2359031034100 JET NEEDLE KEIHIN OBETPJET NEEDLE KEIHIN OBETP
-
2359031034200 JET NEEDLE KEIHIN OBETNJET NEEDLE KEIHIN OBETN
-
2359031034300 JET NEEDLE KEIHIN OBETQJET NEEDLE KEIHIN OBETQ
-
2459031029000 BAR CLIPBAR CLIP
-
2557331032000 NEEDLE SET SCREW CPL.NEEDLE SET SCREW CPL.
-
2659031121000 NEEDLE JET FCR-MXNEEDLE JET FCR-MX
-
2754531623155 MAIN JET 155 KEIHINMAIN JET 155 KEIHIN
-
2754531623158 MAIN JET 158 KEIHINMAIN JET 158 KEIHIN
-
2754531623160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
2754531623162 MAIN JET 162 KEIHINMAIN JET 162 KEIHIN
-
2754531623165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
2754531623168 MAIN JET 168 KEIHINMAIN JET 168 KEIHIN
-
2754531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2754531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2754531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2854531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
2854531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
2854531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
2959031051085 STARTER JET 85STARTER JET 85
-
3057331107100 IDLE AIR JET 100 KEIHINIDLE AIR JET 100 KEIHIN
-
3259031017100 ADJUST SCREW CPL.FCR-MXADJUST SCREW CPL.FCR-MX
-
3557331085000 BUFFER PLATEBUFFER PLATE
-
3957331009000 FLOAT CPL.FLOAT CPL.
-
4057331008000 ARM PIN FLOATARM PIN FLOAT
-
4177031075000 HOT-STARTER VALVEHOT-STARTER VALVE
-
4254631220000 FLOAT NEEDLEFLOAT NEEDLE
-
4354531621000 CLAMPCLAMP
-
4757331060000 COVER ACCELERATOR PUMPCOVER ACCELERATOR PUMP
-
4957331011000 FLOAT CHAMBER CPL. SETFLOAT CHAMBER CPL. SET
-
5359031059000 COIL SPRINGCOIL SPRING
-
5557331048000 STARTER VALVE CPL.STARTER VALVE CPL.
-
5657331098000 BREATH.HOSE FCR-MX KEIHIN CPL.BREATH.HOSE FCR-MX KEIHIN CPL.
-
6057331038100 SCREW F. COVER KEIHINSCREW F. COVER KEIHIN
-
6154531699000 PLUG M 18X1PLUG M 18X1
-
6457331062000 INTERMEDIATE LEVER CPL.INTERMEDIATE LEVER CPL.
-
6557331056000 LINK LEVERLINK LEVER
-
6657331059000 SPRING LINK LEVERSPRING LINK LEVER
-
6757331159000 SPRING INTERMEDIATE LEVERSPRING INTERMEDIATE LEVER
-
6857331038200 CARBURETOR COVERCARBURETOR COVER
-
6957331087000 WASHER LINK LEVERWASHER LINK LEVER
-
7057331084000 E-CLIPE-CLIP
-
7257331061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
8359031013044 HOSE CONNECTOR CPL.HOSE CONNECTOR CPL.
-
9057331025000 STOP SCREW CPL. FCR-MXSTOP SCREW CPL. FCR-MX
-
9659031077200 THROTTLE POSITION SENSORTHROTTLE POSITION SENSOR
-
9957331099000 GASKET SET FCR-MX KEIHINGASKET SET FCR-MX KEIHIN
