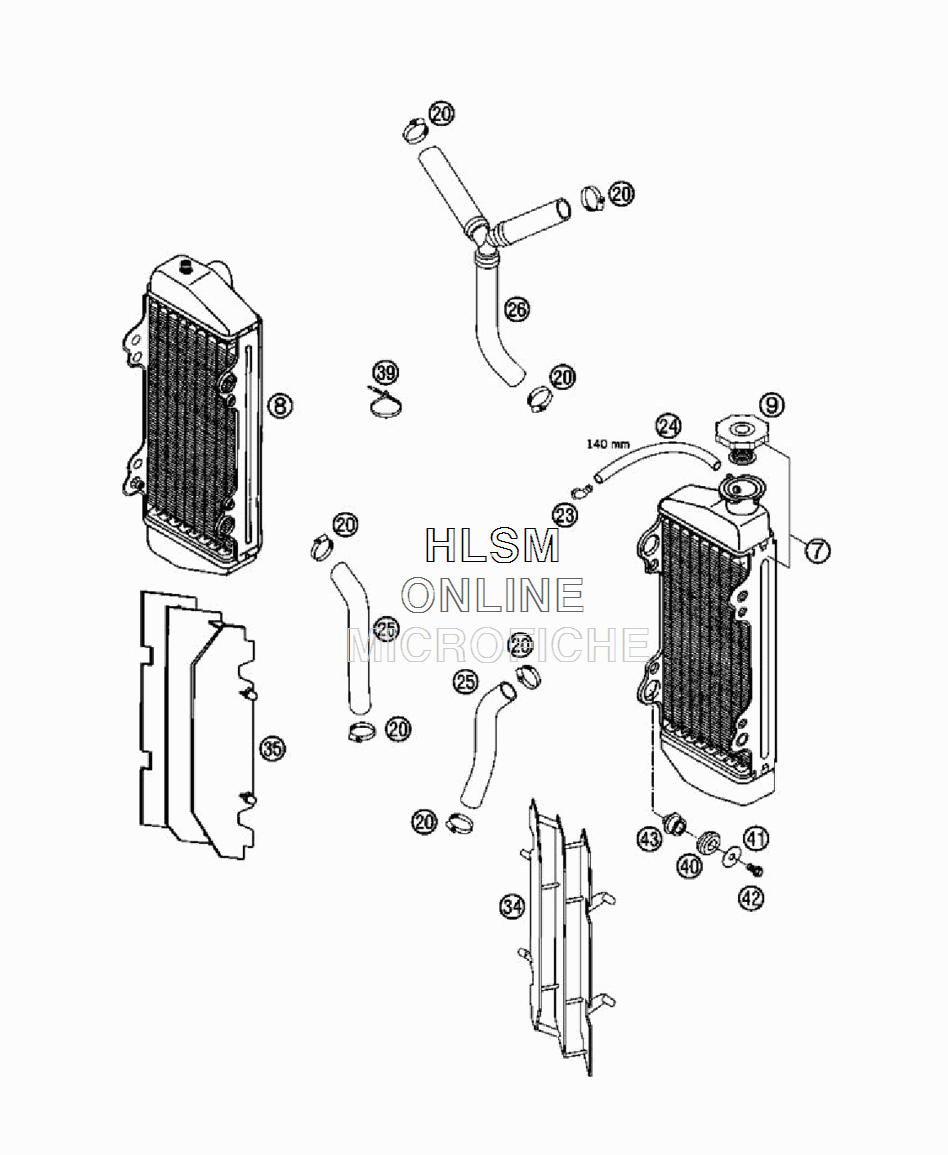

COOLING SYSTEM для Ktm 250 SX-F - 2006 года выпуска
-
№АртикулНазвание
-
777035007000 RADIATOR L/SRADIATOR L/S
-
877035008000 RADIATOR R/SRADIATOR R/S
-
959035009000 RADIAT.CAP 20,3PSI (1,4BAR)RADIAT.CAP 20,3PSI (1,4BAR)
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2350303089000 ANGEL PIECEANGEL PIECE
-
2431007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
2577035025000 RADIATOR HOSE L/SRADIATOR HOSE L/S
-
2677035026000 RADIATOR HOSE WITH Y-PARTRADIATOR HOSE WITH Y-PART
-
345463503420030 RADIATOR PROTECTOR L.BLACKRADIATOR PROTECTOR L.BLACK
-
355463513420030 RADIATOR PROTECTOR BLACKRADIATOR PROTECTOR BLACK
-
3944011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
410021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
420015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
4377035002000 SPACER BUSHINGSPACER BUSHING
