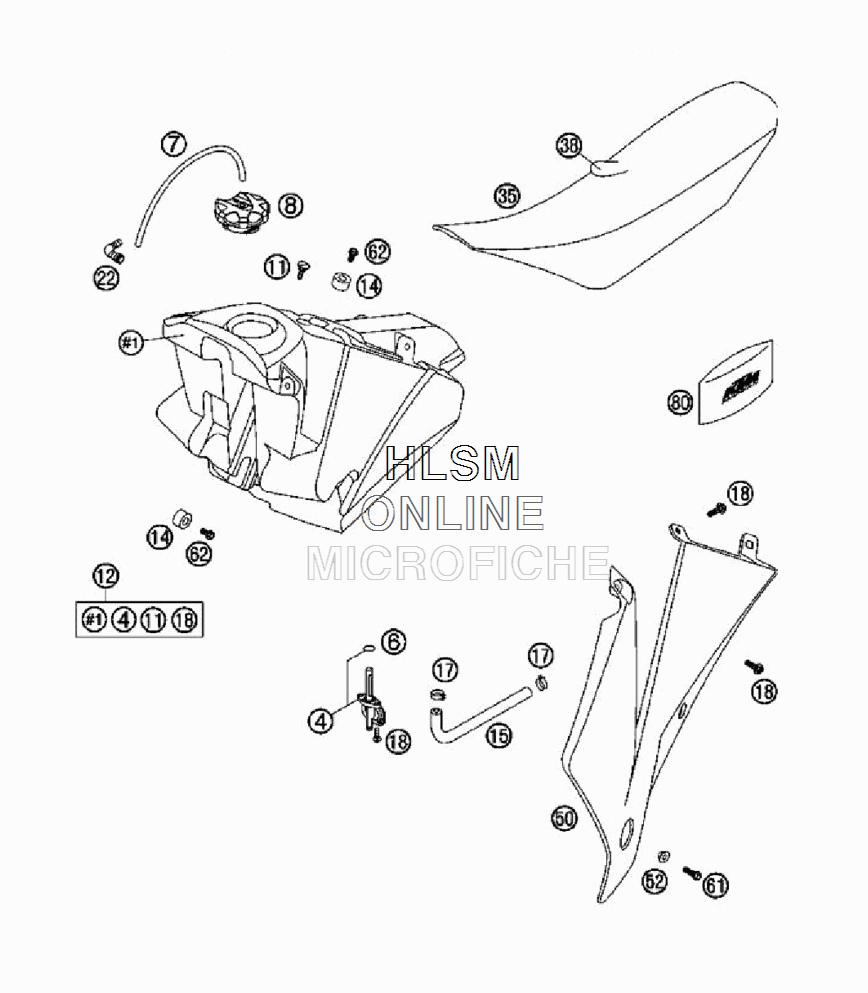

TANK - SEAT - COVER для Ktm 250 SX-F - 2006 года выпуска
-
№АртикулНазвание
-
450307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
731007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
877007008044 FILLER CAP CPL.FILLER CAP CPL.
-
1150307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
127700701300004 FUEL TANKFUEL TANK
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1577007016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3554807040400 SEAT BLACK WITHOUT KTM-LOGOSEAT BLACK WITHOUT KTM-LOGO
-
3854807040450 SEAT COV.BLACK WITHOUT LOGOSEAT COV.BLACK WITHOUT LOGO
-
505480805000004 SPOILER L/S ORANGESPOILER L/S ORANGE
-
505480805100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
620015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
8050212100100 ORIGINAL EQUIPMENT TOOL KITORIGINAL EQUIPMENT TOOL KIT
