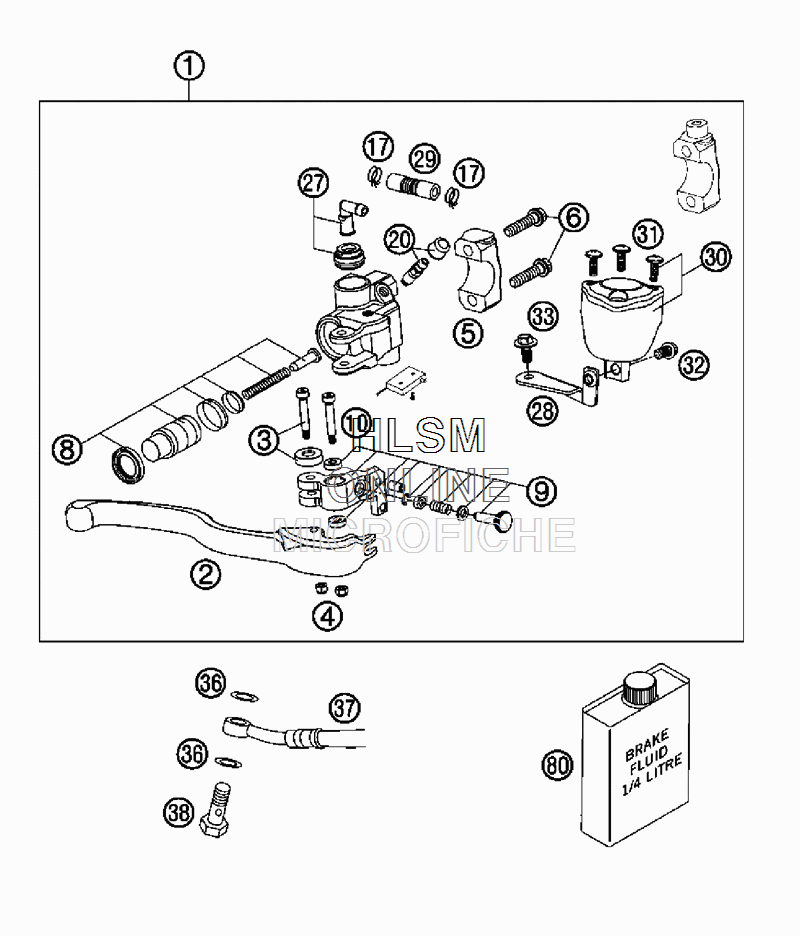

HAND BRAKE CYLINDER для Ktm 560 SMR - 2006 года выпуска
-
№АртикулНазвание
-
158613001044 HANDBRAKECYLINDER CPL.HANDBRAKECYLINDER CPL.
-
258613002000 HANDBRAKE LEVERHANDBRAKE LEVER
-
358613002150 LEVER SCREWLEVER SCREW
-
40985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
558613005150 CLAMPCLAMP
-
60015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
858613008000 REP. SET PISTONREP. SET PISTON
-
958613002050 ROCKER CPL.ROCKER CPL.
-
1058613006000 BEARING BOLTBEARING BOLT
-
1759007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
2058613020000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
2758613027000 CONNECTING TUBE CPL.CONNECTING TUBE CPL.
-
2858613028000 RETAINING PLATERETAINING PLATE
-
2958613029150 HOSE FOR RESERVOIRHOSE FOR RESERVOIR
-
3058613029044 BRAKE FLUID RESERVOIR CPL.BRAKE FLUID RESERVOIR CPL.
-
3158613029050 FIXING SCREW F. RESERV.FIXING SCREW F. RESERV.
-
320015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
330014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
360603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3758613012100 BRAKEHOSE 1175MMBRAKEHOSE 1175MM
-
3858613013100 HOLLOW SCREWHOLLOW SCREW
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
