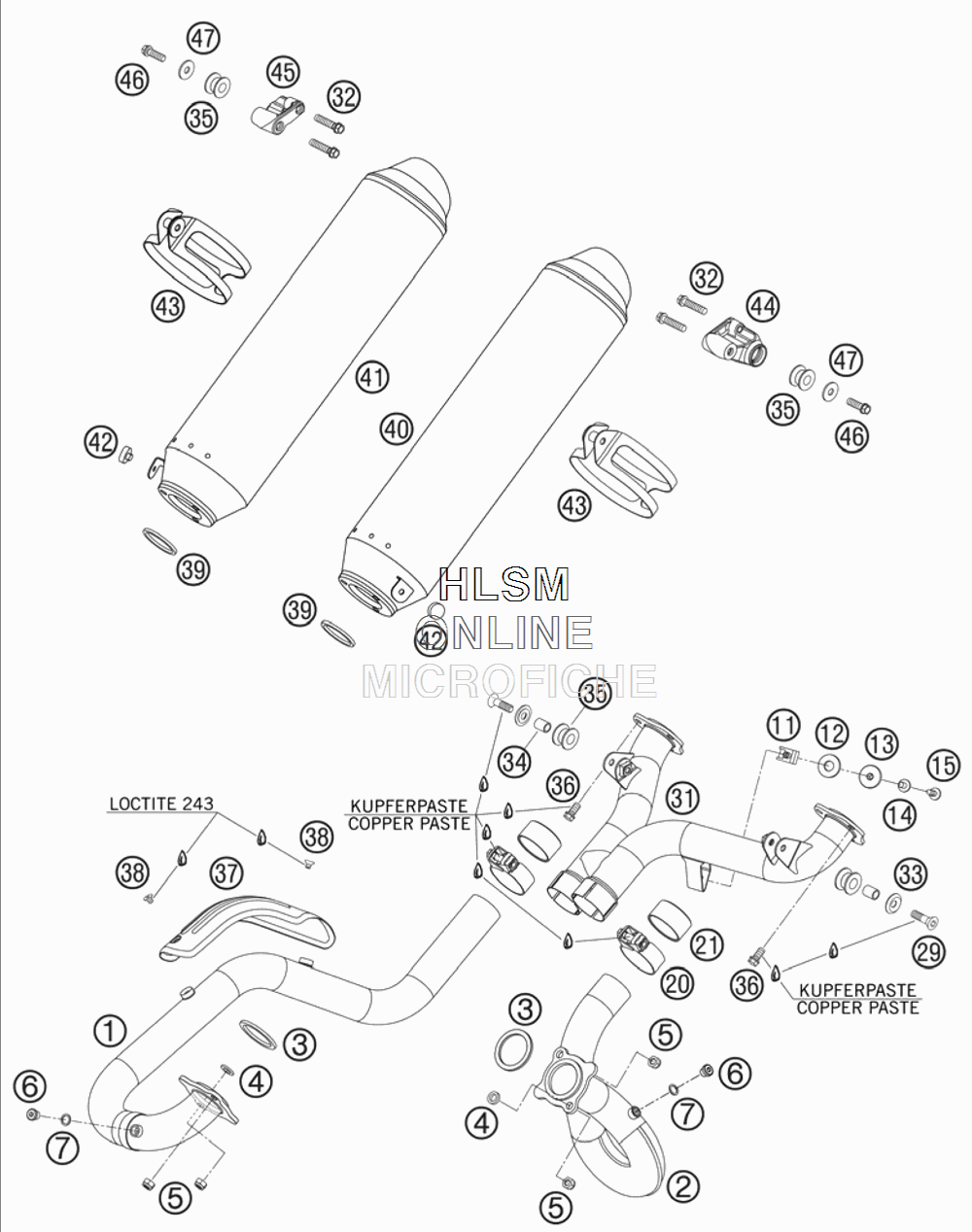

EXHAUST SYSTEM для Ktm 950 Super Enduro Europe - 2006 года выпуска
-
№АртикулНазвание
-
163005007000 EXHAUST PIPE FRONTEXHAUST PIPE FRONT
-
260005008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
360005005000 GASKETGASKET
-
40125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
551010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
60908100000 PLUG DIN0908-M10X1 A2PLUG DIN0908-M10X1 A2
-
70603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1154603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1251005067000 INSOLATE WASHER 8,5X28X3INSOLATE WASHER 8,5X28X3
-
1363005013000 INSULATING DISKINSULATING DISK
-
1454830048000 % DISTANCE BUSHING F. CHAIN.% DISTANCE BUSHING F. CHAIN.
-
150014060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
2060105051000 CLAMP CPL. D=49,2MMCLAMP CPL. D=49,2MM
-
2160005005001 GRAPHIT RING 42X47X25GRAPHIT RING 42X47X25
-
290991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
3163005048000 DISTRIBUTOR TUBEDISTRIBUTOR TUBE
-
320015080303 HH COLLAR SCREW M 8X30HH COLLAR SCREW M 8X30
-
3358303061100 SPECIAL WASHER ALU 8X24 MM ELOSPECIAL WASHER ALU 8X24 MM ELO
-
3462505069000 SPACER BUSH. 8,5X12X18MMSPACER BUSH. 8,5X12X18MM
-
3554305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
360015080163 HH COLLAR SCREW M 8X16HH COLLAR SCREW M 8X16
-
3763005011000 THERMAL SHIELDTHERMAL SHIELD
-
380991060082 FLAT H.SCREW M6X8 DIN7991 NIROFLAT H.SCREW M6X8 DIN7991 NIRO
-
3960005005002 EXHAUST GASKETEXHAUST GASKET
-
4062505083100 SILENCER L/SSILENCER L/S
-
4162505083000 SILENCER R/SSILENCER R/S
-
4254308042000 RUBBER BUFFERRUBBER BUFFER
-
4360005095000 CLAMP FOR SILENCER CPL.CLAMP FOR SILENCER CPL.
-
4460005085000 SILENCER/HANDLE HOLDER L/SSILENCER/HANDLE HOLDER L/S
-
4560005086000 SILENCER/HANDLE HOLDER R/SSILENCER/HANDLE HOLDER R/S
-
460015080253 HH COLLAR SCREW M 8X25HH COLLAR SCREW M 8X25
-
470021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
480797050000 TOOTH LOCK WASHER DIN6797-JTOOTH LOCK WASHER DIN6797-J
