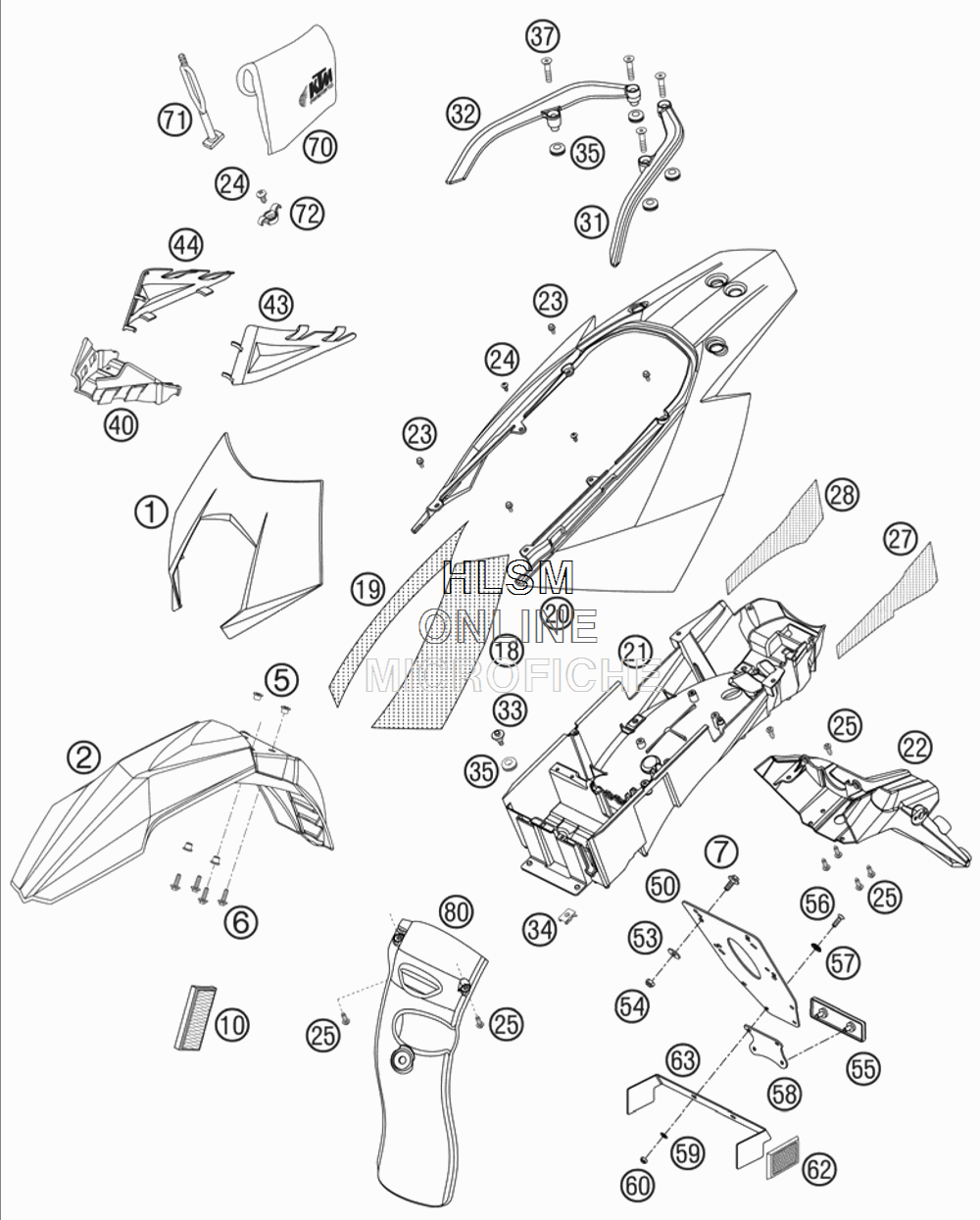

MASK FENDERS для Ktm 950 Super Enduro Europe - 2006 года выпуска
-
№АртикулНазвание
-
15860800100030 HEAD LIGHT MASK BLACKHEAD LIGHT MASK BLACK
-
26300801000004 FENDER FRONT ORANGEFENDER FRONT ORANGE
-
558408009050 SPACER BUSHING FRONT FENDERSPACER BUSHING FRONT FENDER
-
60014060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
70014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
1060012080000 SIDE REFLECTOR YELLOW FOR USA+AUS+UKSIDE REFLECTOR YELLOW FOR USA+AUS+UK
-
1862508018050 THERM.PROTECT. FOIL L/S TOPTHERM.PROTECT. FOIL L/S TOP
-
1962508018060 THERM.PROTECT. FOIL R/S TOPTHERM.PROTECT. FOIL R/S TOP
-
206250801800030 REAR END TOP PART BLACKREAR END TOP PART BLACK
-
2162508019200 REAR END LOWER PARTREAR END LOWER PART
-
2263008015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
230015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
240016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
250017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
2762508019150 THERMAL PROTECTION FOIL L/STHERMAL PROTECTION FOIL L/S
-
2862508019160 THERMAL PROTECTION FOIL R/STHERMAL PROTECTION FOIL R/S
-
3163012008000 HAND GRIP L/SHAND GRIP L/S
-
3263012009000 HAND GRIP R/SHAND GRIP R/S
-
3360035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
3454603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
3541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
370991080403 FLAT HEAD SCREW DIN7991-M 8X40FLAT HEAD SCREW DIN7991-M 8X40
-
4060003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
4362503083000 COVER FRAME L/S REARCOVER FRAME L/S REAR
-
4462503084000 COVER FRAME R/S REARCOVER FRAME R/S REAR
-
5060012081100 LICENCE NUMBER SUPPORTLICENCE NUMBER SUPPORT
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR RED LC4 '98REFLECTOR RED LC4 '98
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
6216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6362512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
7061029099000 TOOL SET 950/990TOOL SET 950/990
-
7150303018000 RUBBER L=145MMRUBBER L=145MM
-
7262508021000 SUPPORT TOOL SETSUPPORT TOOL SET
-
8063006010000 SPLASH PROTECT.SPLASH PROTECT.
