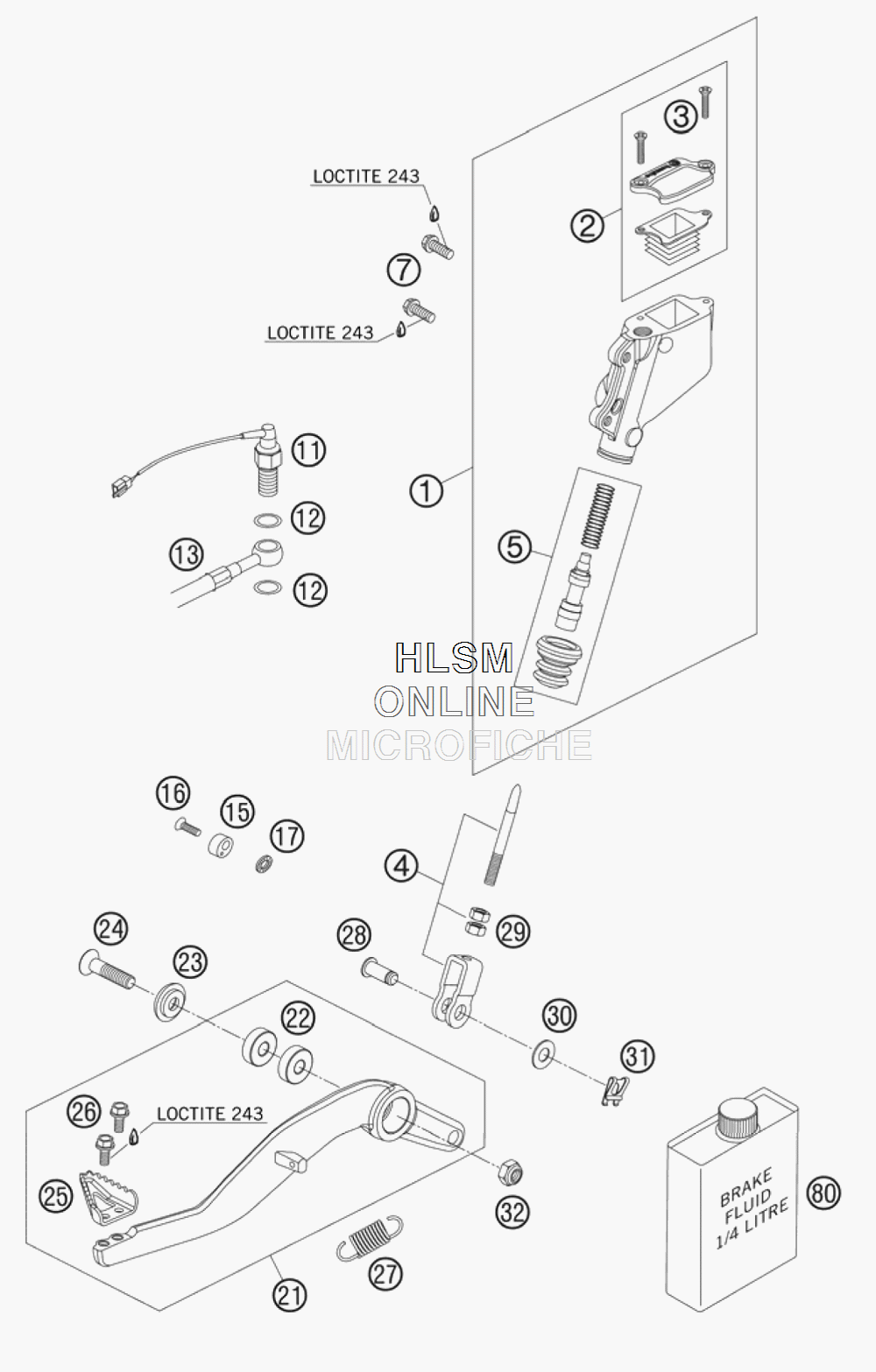

REAR BRAKE CONTROL для Ktm 950 Super Enduro Europe - 2006 года выпуска
-
№АртикулНазвание
-
160013060100 MAIN BRAKE CYLINDER CPL.MAIN BRAKE CYLINDER CPL.
-
260013059000 COVER MAIN BRAKE CYLINDER CPL.COVER MAIN BRAKE CYLINDER CPL.
-
30965040161 FLAT HEAD SCREW DIN0965-M 4X16FLAT HEAD SCREW DIN0965-M 4X16
-
463013056044 PUSH ROD CPL.PUSH ROD CPL.
-
560013061000 REPAIR KIT PISTONREPAIR KIT PISTON
-
759009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
1242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1362513072000 BRAKE HOSE REARBRAKE HOSE REAR
-
1558413048000 BRAKE LEVER STOP LC4BRAKE LEVER STOP LC4
-
160991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
170797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
2160013050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2360003061000 SPECIAL WASHER ALU 8X24MMSPECIAL WASHER ALU 8X24MM
-
240991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
2560013051000 STEP PLATE FOOT BRAKE LEVERSTEP PLATE FOOT BRAKE LEVER
-
260015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
2754603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
2860013057000 BOLT F. LINK FORK 8X20X16,5BOLT F. LINK FORK 8X20X16,5
-
290934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
300125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
3160013058000 SECURING CLIP D=8MMSECURING CLIP D=8MM
-
320985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
80306054 BRAKE FLUID DOT 4.0BRAKE FLUID DOT 4.0
