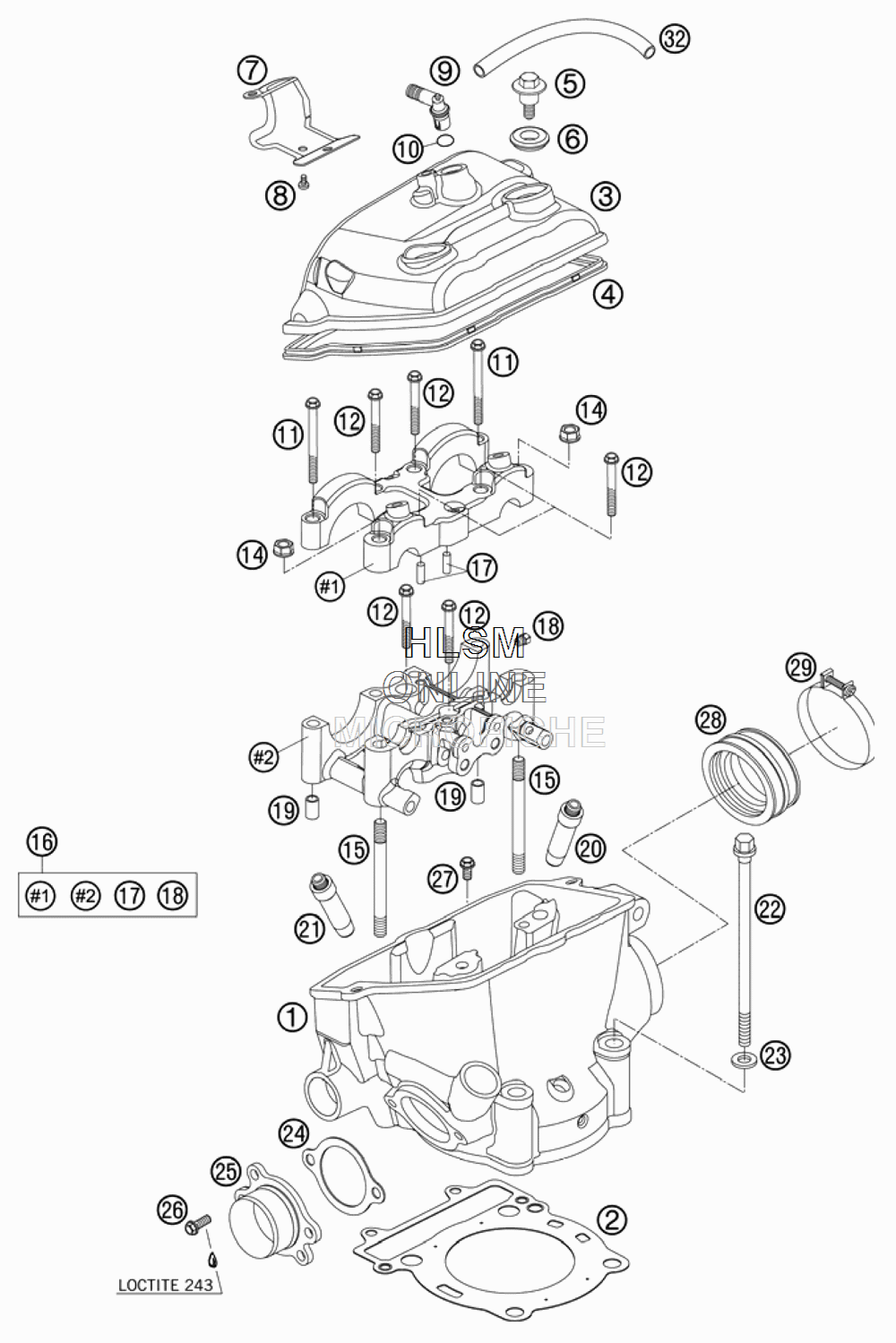

CYLINDER HEAD для Ktm 250 SX-F - 2007 года выпуска

№

Артикул

Название
1

77036020144 CYLINDER HEAD CPL.

CYLINDER HEAD CPL.

158 900 ₽
2

77030036000 CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

9 840 ₽
3

77036052100 VALVE COVER

VALVE COVER

9 730 ₽
4

77036053000 VALVE COVER GASKET

VALVE COVER GASKET

2 510 ₽
5

77036055000 VALVE COVER SCR. M6X12 WS10

VALVE COVER SCR. M6X12 WS10

700 ₽
6

77036054050 RUBBER GASKET FOR SCREW

RUBBER GASKET FOR SCREW

2 220 ₽
7

77036052050 COVER PLATE BREATHER

COVER PLATE BREATHER

4 320 ₽
8

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
9

60038082000 ANGLE CONNECTOR LC8

ANGLE CONNECTOR LC8

300 ₽
10

0770080020 O-RING 8X2 SILICONE

O-RING 8X2 SILICONE

210 ₽
11

77036081000 SPECIAL SCREW M7X73 WS

SPECIAL SCREW M7X73 WS

790 ₽
12

77036080000 SPECIAL SCREW M7X40 WS

SPECIAL SCREW M7X40 WS

700 ₽
14

77036024000 COLLAR NUT 7X1

COLLAR NUT 7X1

1 140 ₽
15

77036023000 STUD 7X1

STUD 7X1

1 320 ₽
16

77036020150 BUSH SUPPORT A.BRIDGE CPL

BUSH SUPPORT A.BRIDGE CPL

76 460 ₽
17

0402050980 NEEDLE ROLLER DIN5402 5X9,8

NEEDLE ROLLER DIN5402 5X9,8

240 ₽
18

60030063050 OIL JET 50

OIL JET 50

2 160 ₽
19

77036090000 DOWEL(BUSH BRIDGE)7/9/8

DOWEL(BUSH BRIDGE)7/9/8

1 080 ₽
20

77036025101 VALVE GUIDE INTAKE

VALVE GUIDE INTAKE

23 860 ₽
21

77036026001 VALVE GUIDE OUTLET

VALVE GUIDE OUTLET

9 200 ₽
22

77036079000 CYLINDER HEAD SCREW

CYLINDER HEAD SCREW

2 490 ₽
23

59036090000 WASHER 10,8X18,8X1,5

WASHER 10,8X18,8X1,5

180 ₽
24

77036041000 GASKET EXHAUST FLANGE

GASKET EXHAUST FLANGE

1 610 ₽
25

77036039000 EXHAUST FLANGE CPL.

EXHAUST FLANGE CPL.

14 310 ₽
26

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
27

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
28

77036044000 INTAKE BOOT

INTAKE BOOT

8 040 ₽
29

59030061000 CLAMP D=56MM B=9MM M4X25

CLAMP D=56MM B=9MM M4X25

1 000 ₽
32

59031050100 ENGINE BREATHER TUBE

ENGINE BREATHER TUBE

3 920 ₽
