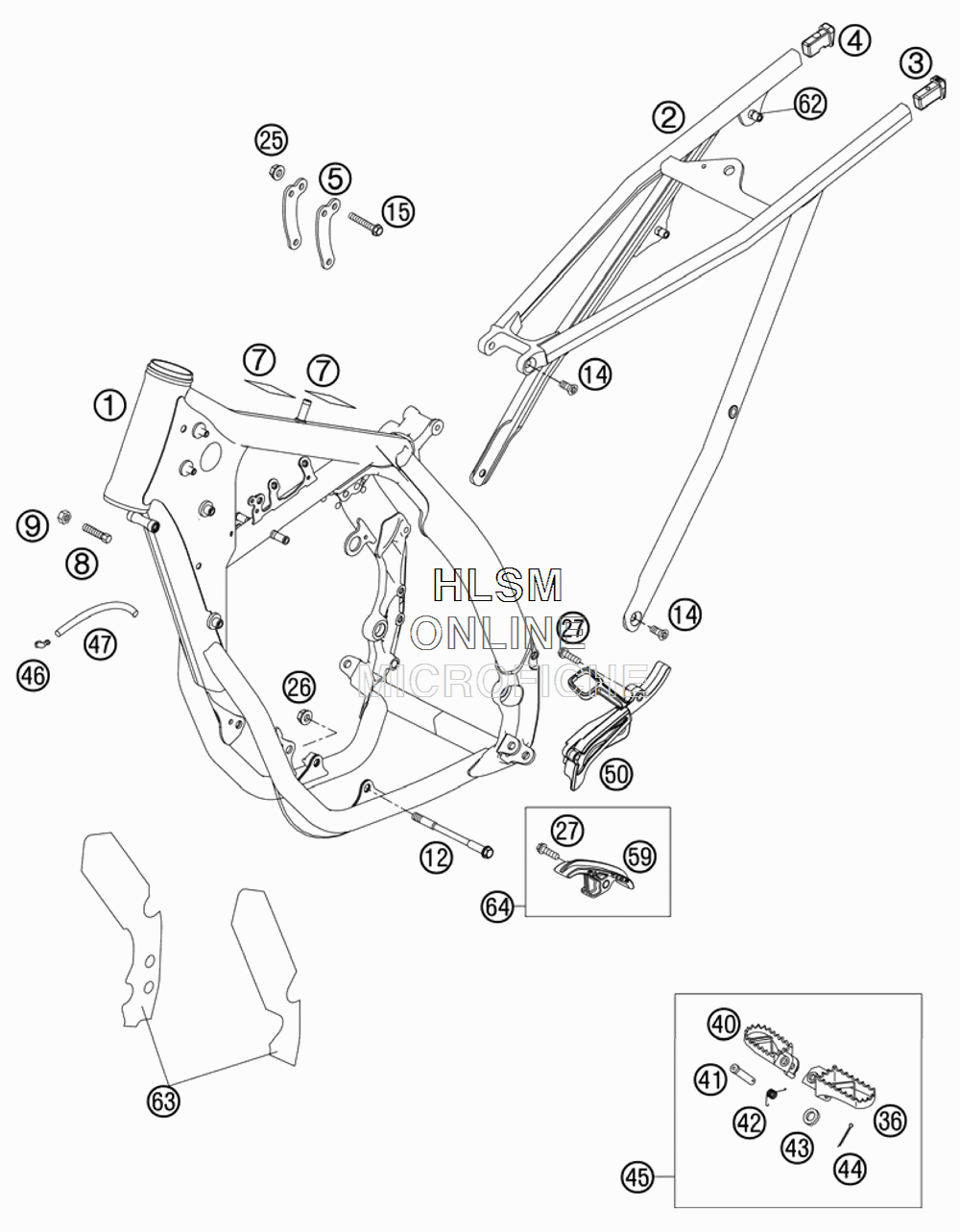

FRAME W/ SUB FRAME для Ktm 250 SX-F - 2007 года выпуска
-
№АртикулНазвание
-
17700310100030 FRAME 250 SX-F "GA07"FRAME 250 SX-F "GA07"
-
277303002000 SUB FRAME SX "Q7"SUB FRAME SX "Q7"
-
377303002010 SUB FRAME APPLICATION L/SSUB FRAME APPLICATION L/S
-
477303002020 SUB FRAME APPLICATION R/SSUB FRAME APPLICATION R/S
-
577003113000 REINFORCING B.REINFORCING B.
-
750307012000 ADH. FOIL TRANSP. 80X80 MM 04ADH. FOIL TRANSP. 80X80 MM 04
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCR. M10X105 WS=13ENGINE BRAC.SCR. M10X105 WS=13
-
140019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1556530079000 COLLAR SCREW M8X42 WS=13 10.9COLLAR SCREW M8X42 WS=13 10.9
-
2554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
3659003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTREST L.+R. CPL.FOOTREST L.+R. CPL.
-
4650303089000 ANGEL PIECEANGEL PIECE
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5077003096000 SPROCKET COVERSPROCKET COVER
-
5977303053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6277303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
6377303094000 FRAME PROTECTION STICK. SETFRAME PROTECTION STICK. SET
-
6477303053010 CHAIN SLIDING P. BELOW CPL.CHAIN SLIDING P. BELOW CPL.
