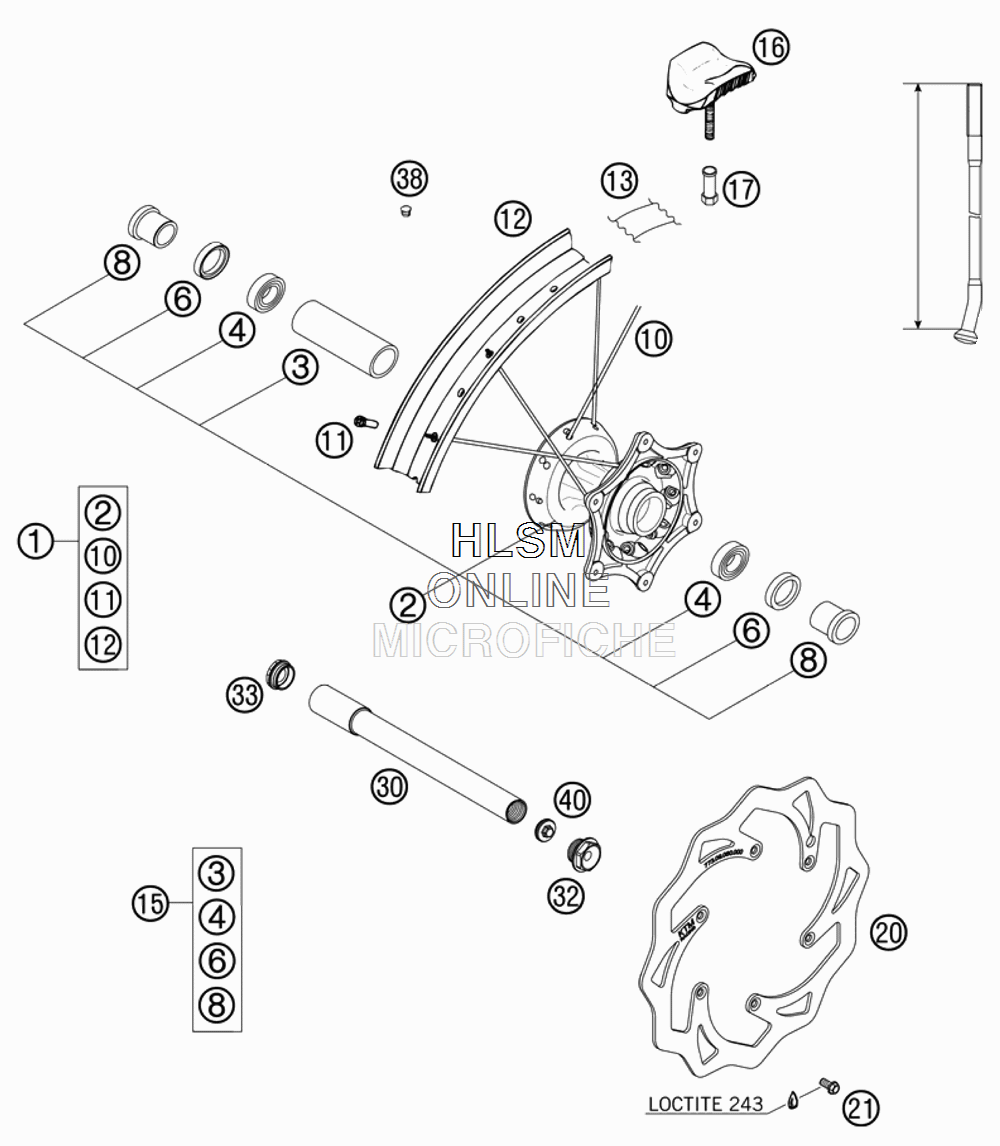

FRONT WHEEL для Ktm 250 SX-F - 2007 года выпуска
-
№АртикулНазвание
-
17730900104430 FRONT WHEEL CPL.1,6X21EXCELFRONT WHEEL CPL.1,6X21EXCEL
-
277309010044 FRONT HUB CPLFRONT HUB CPL
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4 03BEA.SPACERTUBE 35X2 L=79,4 03
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
877309012000 SPACER BUSHINGSPACER BUSHING
-
1077309072226 SPOKE M4, 5X226- 21" 06SPOKE M4, 5X226- 21" 06
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
125460907010030 RIM 1,60X21"EXCEL AL4 BLACKRIM 1,60X21"EXCEL AL4 BLACK
-
1350309073000 RIM BAND 21"RIM BAND 21"
-
1577309015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
1651009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
1750310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2077309060000 BRAKE DISC FRONTBRAKE DISC FRONT
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3077309081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27 03SPINDLE SCREW M24X1,5 WS=27 03
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4054809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
