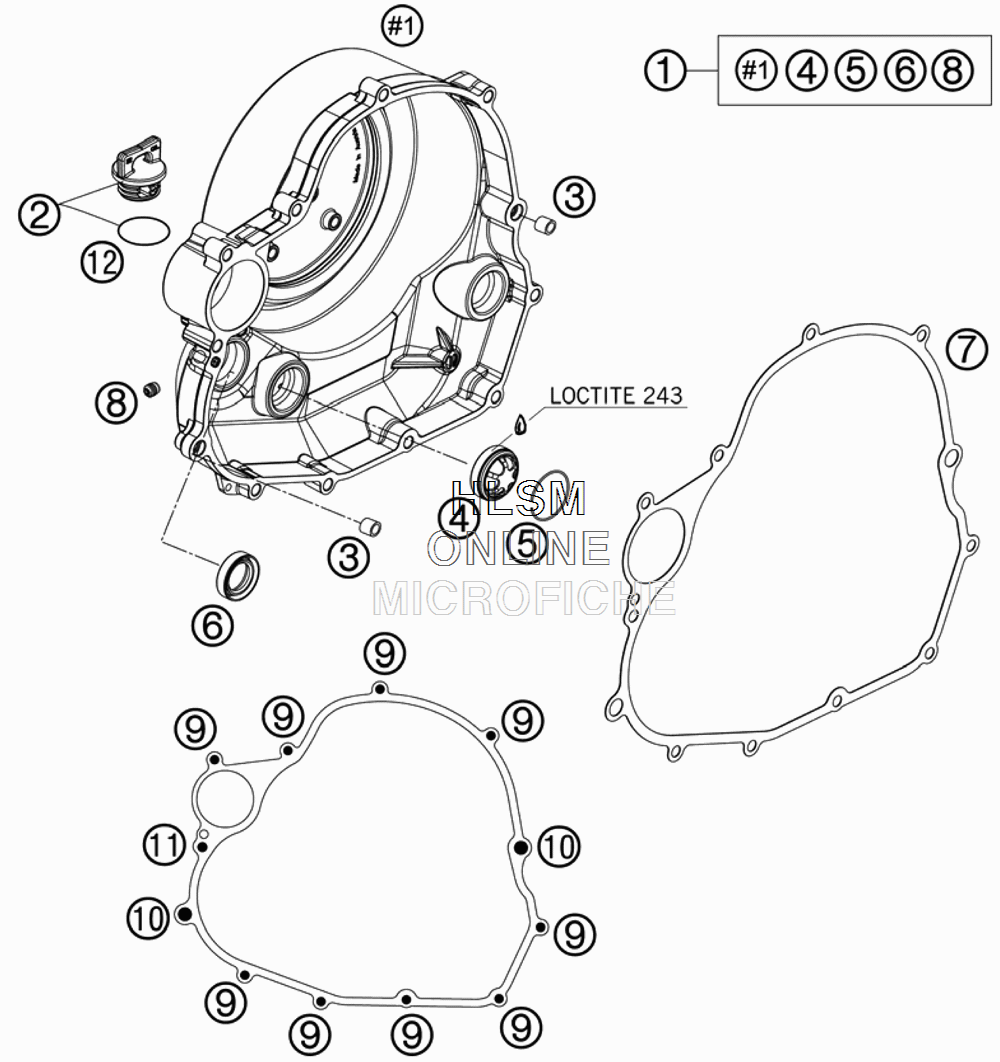

CLUTCH COVER для Ktm 690 Supermoto Black - 2007 года выпуска
-
№АртикулНазвание
-
175030001044 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
459030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
561030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
60760172871 SHAFT SEAL RING 17X28X7B VITONSHAFT SEAL RING 17X28X7B VITON
-
775030025000 CLUTCH CASE GASKETCLUTCH CASE GASKET
-
859030196000 PLUGPLUG
-
90015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
100015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
110015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
120770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
