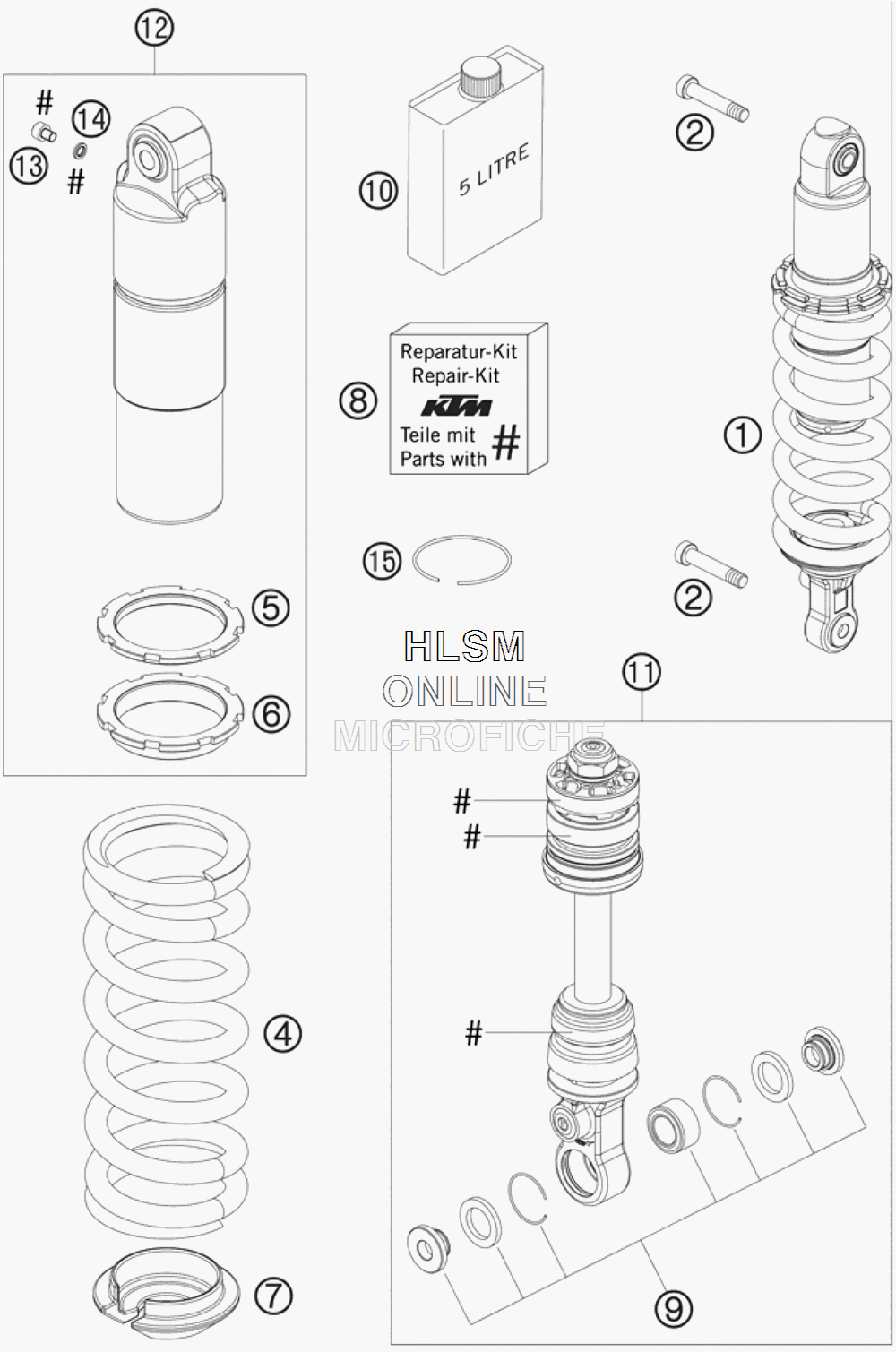

MONOSHOCK для Ktm 690 Supermoto Black - 2007 года выпуска
-
№АртикулНазвание
-
115189C07 MONOSHOCK SMMONOSHOCK SM
-
275004016000 SCREW M 10 L=53MMSCREW M 10 L=53MM
-
491110001S SPRING 65-230 (61) D=11,0SPRING 65-230 (61) D=11,0
-
546180445 COUNTERNUTCOUNTERNUT
-
646180444 ADJUSTING NUTADJUSTING NUT
-
746180396 SPRING RETAINER H=15 D=28SPRING RETAINER H=15 D=28
-
8R15005 REPAIR KIT GASKETREPAIR KIT GASKET
-
9R15006 REPAIR KIT BEARINGSREPAIR KIT BEARINGS
-
1050180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
1146180520S1 MOUNT EYE CPL.MOUNT EYE CPL.
-
1246180635S MONOSHOCK TOPMONOSHOCK TOP
-
1336120785 SCREW M5 C.K. RVSSCREW M5 C.K. RVS
-
1436120782 SEAL D5,21XD8,38X1,22SEAL D5,21XD8,38X1,22
-
1546810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
