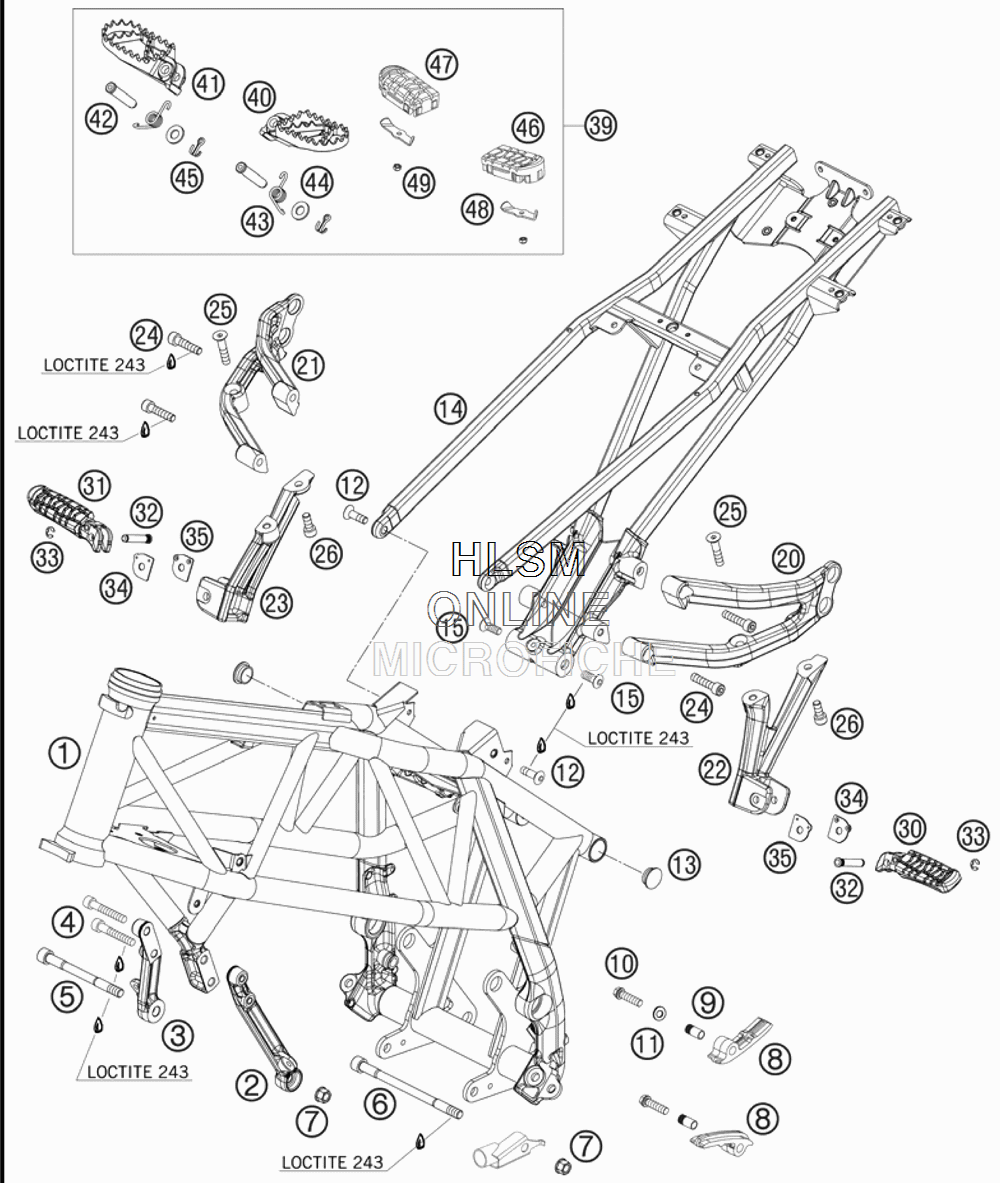

FRAME для Ktm 690 Supermoto Black - 2007 года выпуска

№

Артикул

Название
1

7500300100033 FRAME "EE07" BLACK MATT

FRAME "EE07" BLACK MATT

0 ₽
2

7500300104901 CONNECTION BRACKET ENG. L/S

CONNECTION BRACKET ENG. L/S

10 540 ₽
3

7500310104901 CONNECTION BRACKET ENG. R/S

CONNECTION BRACKET ENG. R/S

10 540 ₽
4

0912080503 AH SCREW DIN912 M8X50

AH SCREW DIN912 M8X50

500 ₽
5

75003015000 SPECIAL SCREW M10X115 ISK8

SPECIAL SCREW M10X115 ISK8

1 690 ₽
6

75003014000 SCREW

SCREW

1 550 ₽
7

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
8

54804067000 CHAIN SLIDING PIECE

CHAIN SLIDING PIECE

1 110 ₽
9

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
10

0015080303 HH COLLAR SCREW M 8X30 WS=10

HH COLLAR SCREW M 8X30 WS=10

700 ₽
11

0125080003 WASHER DIN0125-A 8,4

WASHER DIN0125-A 8,4

120 ₽
12

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
13

61003088000 PLUG SFL28

PLUG SFL28

440 ₽
14

7500300200092 SUB FRAME PLATINUM

SUB FRAME PLATINUM

0 ₽
15

60003004027 FL.HEAD SCREW M10X1,25 L=27

FL.HEAD SCREW M10X1,25 L=27

820 ₽
20

7500304800001S FOOTREST BRACKET REAR L/S

FOOTREST BRACKET REAR L/S

30 510 ₽
21

7500304900001S FOOTREST BRACKET REAR R/S

FOOTREST BRACKET REAR R/S

31 310 ₽
22

7500305800001S FOOTREST CARRIER L/S

FOOTREST CARRIER L/S

21 150 ₽
23

7500305900001S FOOTREST CARRIER R/S

FOOTREST CARRIER R/S

21 150 ₽
24

0912080353 AH SCREW DIN0912-M 8X35

AH SCREW DIN0912-M 8X35

410 ₽
25

0991080403 FLAT HEAD SCREW DIN7991-M 8X40

FLAT HEAD SCREW DIN7991-M 8X40

680 ₽
26

0912080203 AH SCREW DIN912 M8X20

AH SCREW DIN912 M8X20

320 ₽
30

60003050000 FOOTREST CPL. L/S REAR 3

FOOTREST CPL. L/S REAR 3

14 220 ₽
31

60003051000 FOOTREST CPL. R/S REAR

FOOTREST CPL. R/S REAR

14 310 ₽
32

60003044000 BOLT FOR FOOTREST REAR

BOLT FOR FOOTREST REAR

2 050 ₽
33

0799060003 TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

90 ₽
34

60003052000 ENGAGE PANEL FOOTREST R/S

ENGAGE PANEL FOOTREST R/S

1 140 ₽
35

60003152000 ENGAGE PANEL FOOTREST L/S

ENGAGE PANEL FOOTREST L/S

1 140 ₽
39

60003040033 FOOTREST L/S+R/S CPL.

FOOTREST L/S+R/S CPL.

37 410 ₽
40

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
41

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
42

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
43

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
44

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
45

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
46

60003040010 FOOTREST RUBBER FRONT L/S

FOOTREST RUBBER FRONT L/S

5 120 ₽
47

60003041010 FOOTREST RUBBER FRONT R/S

FOOTREST RUBBER FRONT R/S

5 120 ₽
48

60003044010 CLOSING PANEL FRONT L/S R/S

CLOSING PANEL FRONT L/S R/S

1 400 ₽
49

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
