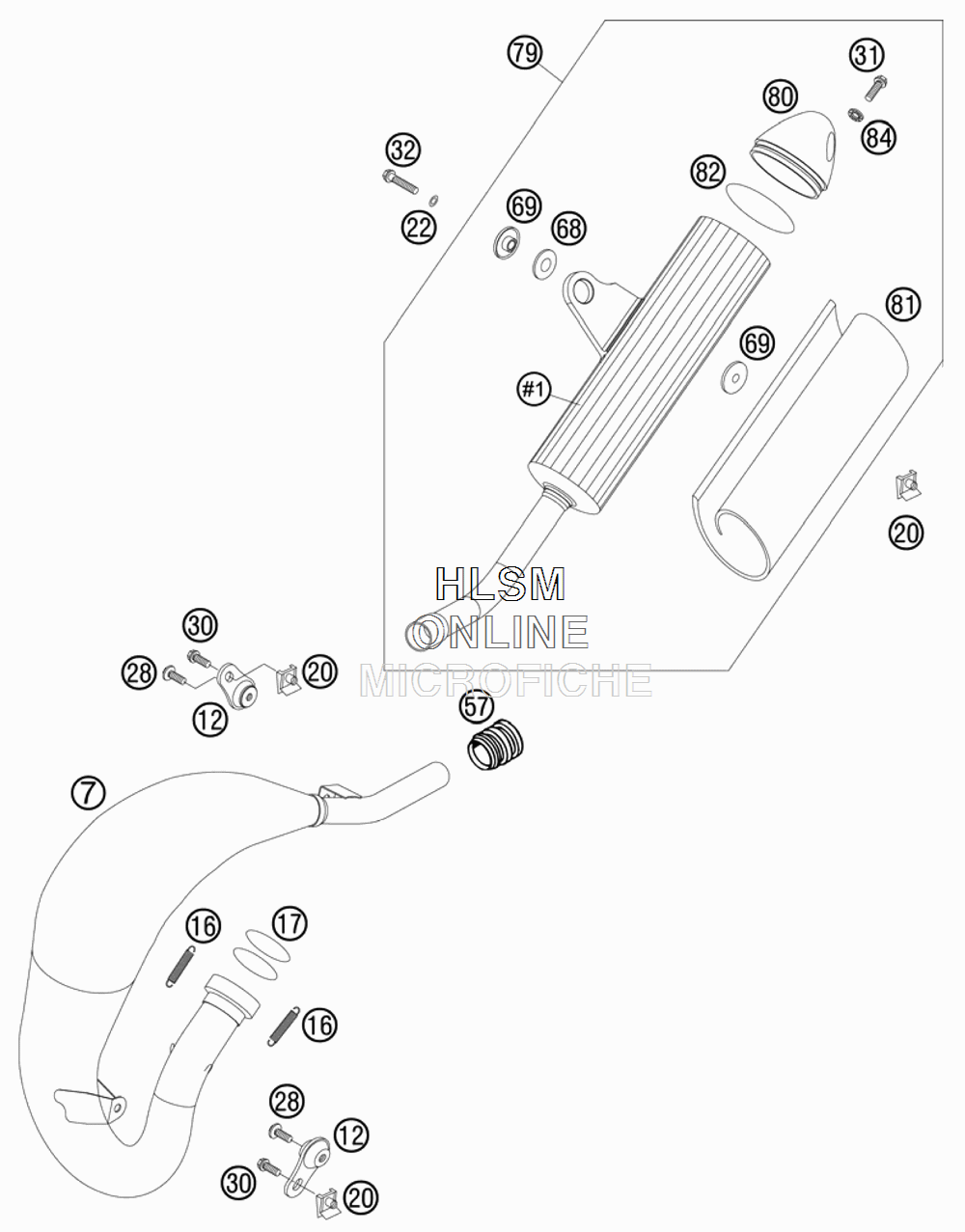

EXHAUST SYSTEM для Ktm 105 SX - 2008 года выпуска
-
№АртикулНазвание
-
747005007100 EXHAUST PIPE 85 SXEXHAUST PIPE 85 SX
-
1250305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
1650305016000 TEN.SPRING EY.MOVEABLETEN.SPRING EY.MOVEABLE
-
170770380030 O-RING 38,00X3,00 VITONO-RING 38,00X3,00 VITON
-
2054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
220137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
280024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
300025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
310025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
320025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
5754605057000 RUBBER SLEEVERUBBER SLEEVE
-
6854605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
6954605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
7947005079100 SILENCER 85 SXSILENCER 85 SX
-
8050305079169 SILENCER ENDCAP SX REARSILENCER ENDCAP SX REAR
-
8150305079160 STUFFING YARN 160 GRAMSTUFFING YARN 160 GRAM
-
820770055020 O-RING 55,00X2,00 NBR70O-RING 55,00X2,00 NBR70
-
8450233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
