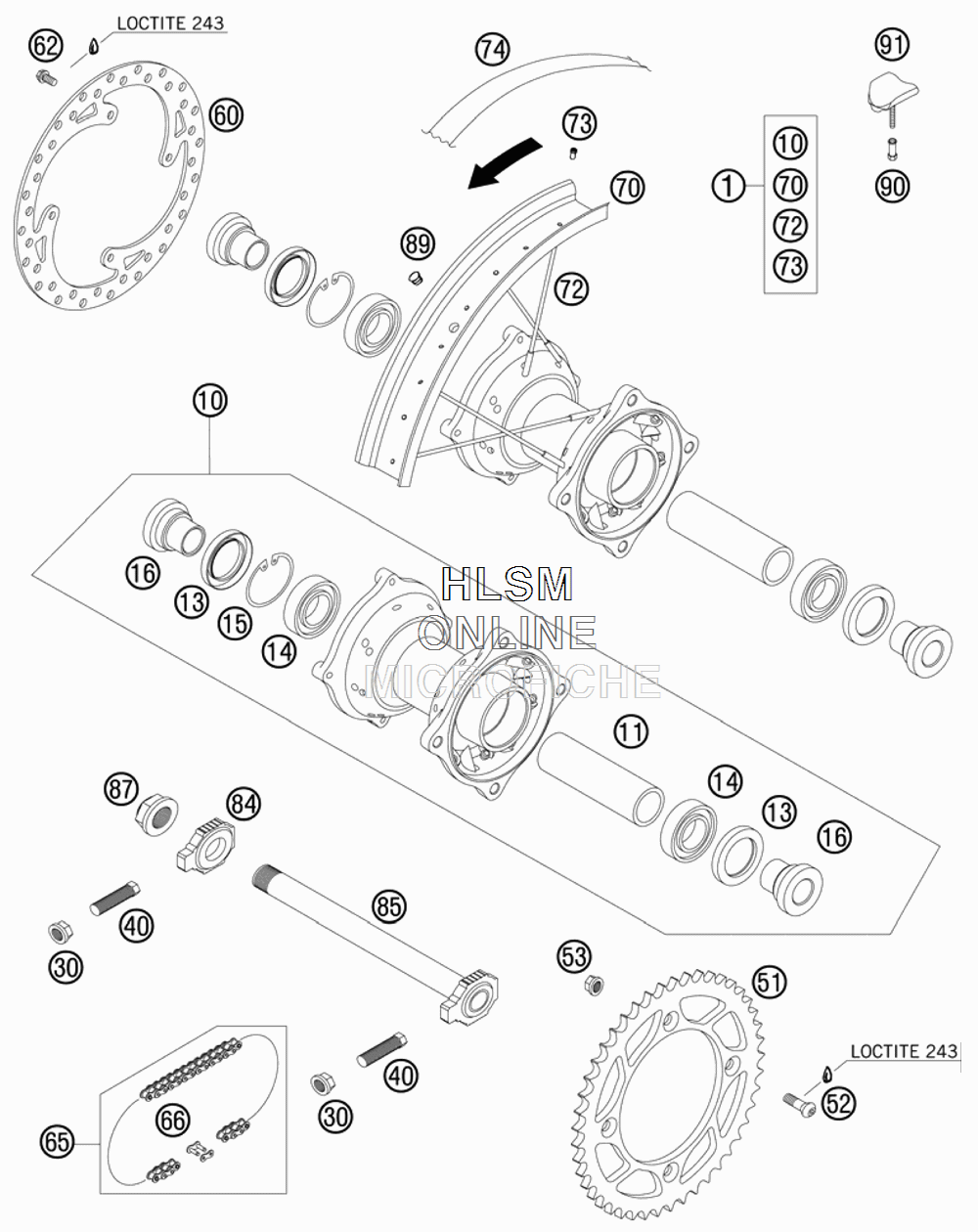

WHEEL - REAR для Ktm 105 SX - 2008 года выпуска
-
№АртикулНазвание
-
147010001544 REAR WHEEL SP 85 SX 16"REAR WHEEL SP 85 SX 16"
-
104701001004491 REAR WHEEL HUB CPL. 85 SXREAR WHEEL HUB CPL. 85 SX
-
1147010011000 BEARING SPACER TUBE 85 SXBEARING SPACER TUBE 85 SX
-
130760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
140625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
150472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
1654610016000 BUSHING FOR HUBBUSHING FOR HUB
-
3058414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
4050304040100 SCREW M10X1,25X50SCREW M10X1,25X50
-
5147010051044 REAR SPROCKET 44-T 85 SXREAR SPROCKET 44-T 85 SX
-
5147010051045 REAR SPROCKET 45-T 85 SXREAR SPROCKET 45-T 85 SX
-
5147010051046 REAR SPROCKET 46-T 85 SXREAR SPROCKET 46-T 85 SX
-
5147010051047 REAR SPROCKET 47-T 85 SXREAR SPROCKET 47-T 85 SX
-
5147010051048 REAR SPROCKET 48-T 85 SXREAR SPROCKET 48-T 85 SX
-
5147010051049 REAR SPROCKET 49-T 85 SXREAR SPROCKET 49-T 85 SX
-
5147010051050 REAR SPROCKET 50-T 85 SXREAR SPROCKET 50-T 85 SX
-
5147010051051 REAR SPROCKET 51-T 85 SXREAR SPROCKET 51-T 85 SX
-
520019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
5354310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
6047010060300 BRAKE DISC REARBRAKE DISC REAR
-
6259009062016 SPECIAL SCREW M6X16SPECIAL SCREW M6X16
-
6547010165124 CHAIN 124 ROLLS 85 SXCHAIN 124 ROLLS 85 SX
-
6647010166000 CONNECTING LINK 85 SXCONNECTING LINK 85 SX
-
7047010070200 RIM REAR AL4 16X1,85-32RIM REAR AL4 16X1,85-32
-
7247010072171 SPOKE REAR 16" 4/3,5/4-171SPOKE REAR 16" 4/3,5/4-171
-
7350309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
7447010073200 RIM BAND 85 SX 16"RIM BAND 85 SX 16"
-
8450310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
8547010085044 AXLE REAR CPL. 85 SXAXLE REAR CPL. 85 SX
-
8750310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9050310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9151010100100 RIM LOCK VM2 (1,85") MXRIM LOCK VM2 (1,85") MX
