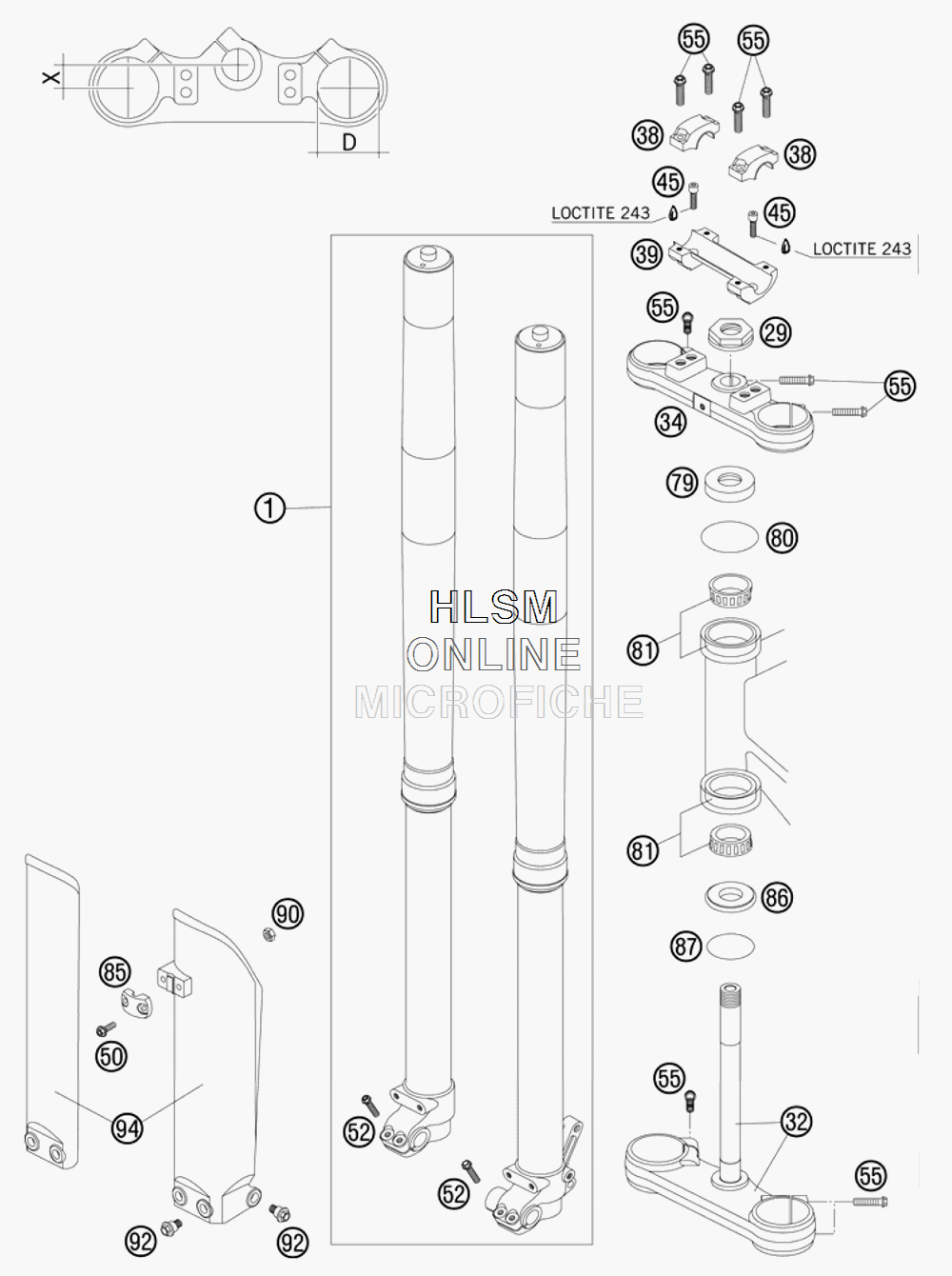

FRONT FORK для Ktm 105 SX - 2008 года выпуска
-
№АртикулНазвание
-
105187D05 FORK 85/105 SXFORK 85/105 SX
-
2959030029000 HH NUT M20X1,5 RIGHTHH NUT M20X1,5 RIGHT
-
3247001032014 BOT.TRIPLE CLAMP CPL. 85 SXBOT.TRIPLE CLAMP CPL. 85 SX
-
3447001034014 TOP TRIPLE CLAMP 85 SXTOP TRIPLE CLAMP 85 SX
-
3850301038000 HANDLEBAR CLAMPHANDLEBAR CLAMP
-
3959001039000 HANDLEBAR SUPPORT 22MM 2THANDLEBAR SUPPORT 22MM 2T
-
450912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
500025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
520025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
550025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
7949001086000 COVERING CAPCOVERING CAP
-
800770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
8149001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
855460108500004 BRAKE HOSE CLAMP ORANGEBRAKE HOSE CLAMP ORANGE
-
8646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
870770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
900985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
9259001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
944700109400004 FORK PROTECTOR L/S+R/S 85SXFORK PROTECTOR L/S+R/S 85SX
