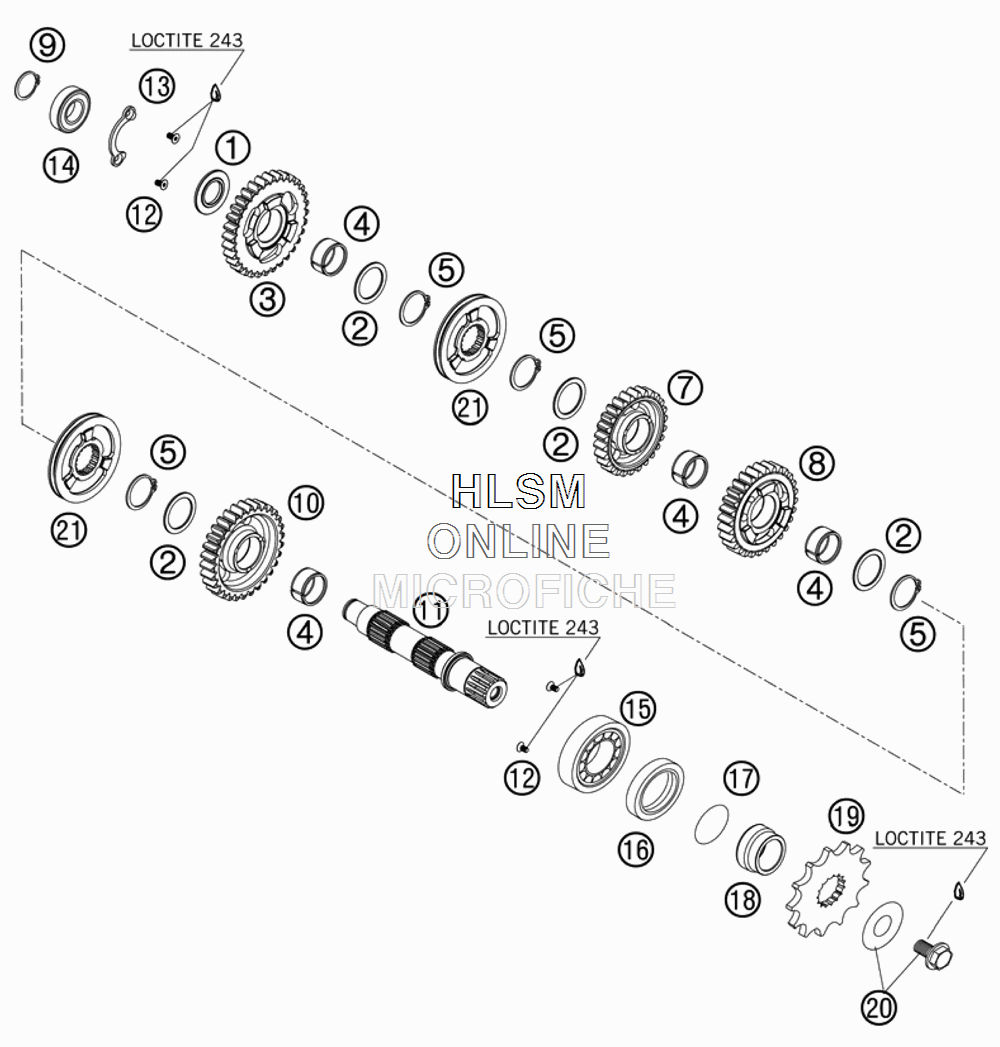

TRANSMISSION - COUNTERSHAFT для Ktm 450 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
177333243100 STOP DISC 32X17X2,2STOP DISC 32X17X2,2
-
277333244200 STOP DISC 35X25X1STOP DISC 35X25X1
-
377333211100 IDLER GEAR 1ST G 32-TIDLER GEAR 1ST G 32-T
-
40405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
50471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
777333214100 IDLER GEAR 4 G 26-TIDLER GEAR 4 G 26-T
-
877333213100 IDLER GEAR 3 G 28-TIDLER GEAR 3 G 28-T
-
90471170015 CIRCLIP DIN 0471-17X1, 5CIRCLIP DIN 0471-17X1, 5
-
1077333212100 IDLER GEAR 2 G 30-TIDLER GEAR 2 G 30-T
-
1177333210100 COUNTERSHAFTCOUNTERSHAFT
-
120019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1377333024100 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
140625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
-
150402255215 CYL.ROLLER BEARING NUP205E C3CYL.ROLLER BEARING NUP205E C3
-
160760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
170770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
-
1877333219000 SPACER BUSHINGSPACER BUSHING
-
1950033029013 SPROCKET 13-TSPROCKET 13-T
-
1950033029014 SPROCKET 14-TSPROCKET 14-T
-
1950033029015 SPROCKET 15-TSPROCKET 15-T
-
2059033034044 SCREW+SPRING WASHERSCREW+SPRING WASHER
-
2177334205000 SHIFT RINGSHIFT RING
