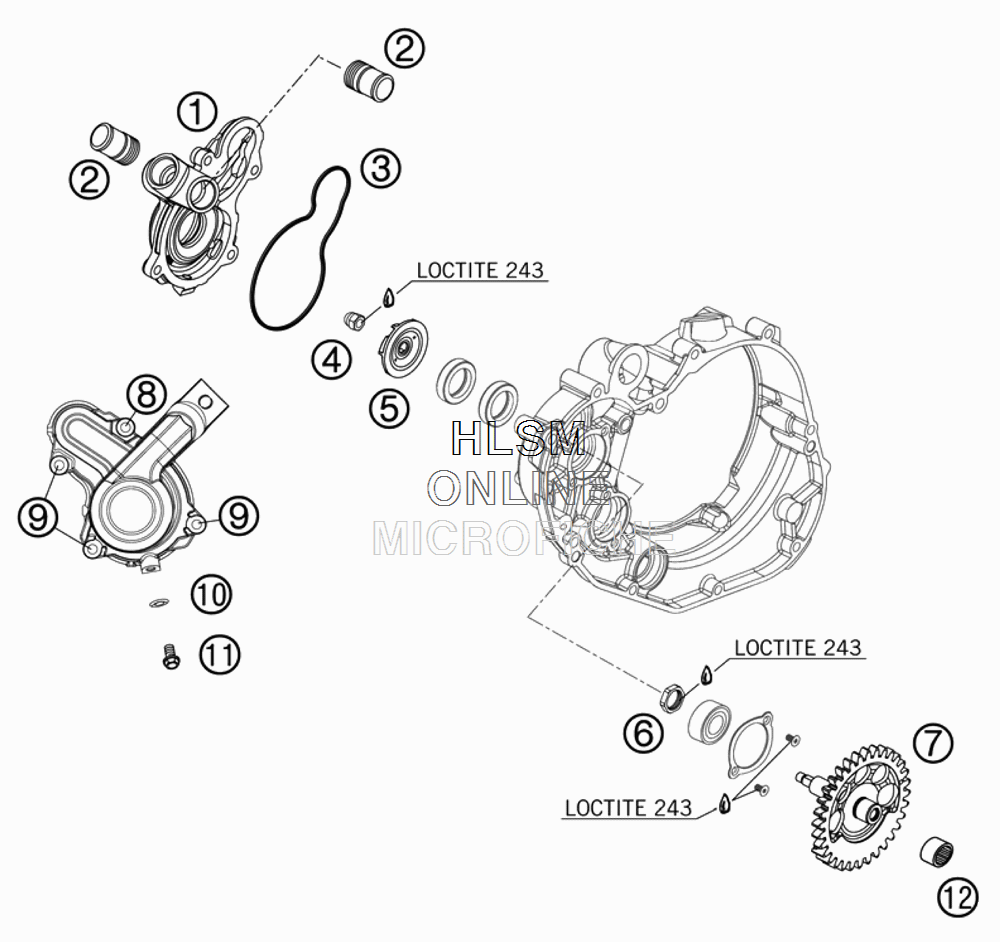

WATER PUMP для Ktm 450 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
177335052100 WATER-PUMP COVERWATER-PUMP COVER
-
258030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
377335053000 WATER-PUMP GASKETWATER-PUMP GASKET
-
40587060000 CAP NUT M6 DIN1587CAP NUT M6 DIN1587
-
577335055100 WATER-PUMP WHEELWATER-PUMP WHEEL
-
677330056050 NUT M14 X 1 FOR BALANCER.NUT M14 X 1 FOR BALANCER.
-
777330056200 BALANCER GEAR KS 32-TBALANCER GEAR KS 32-T
-
80015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
90015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
100603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
110015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
1277335050050 NEEDLE BEARING RNA 4900NEEDLE BEARING RNA 4900
