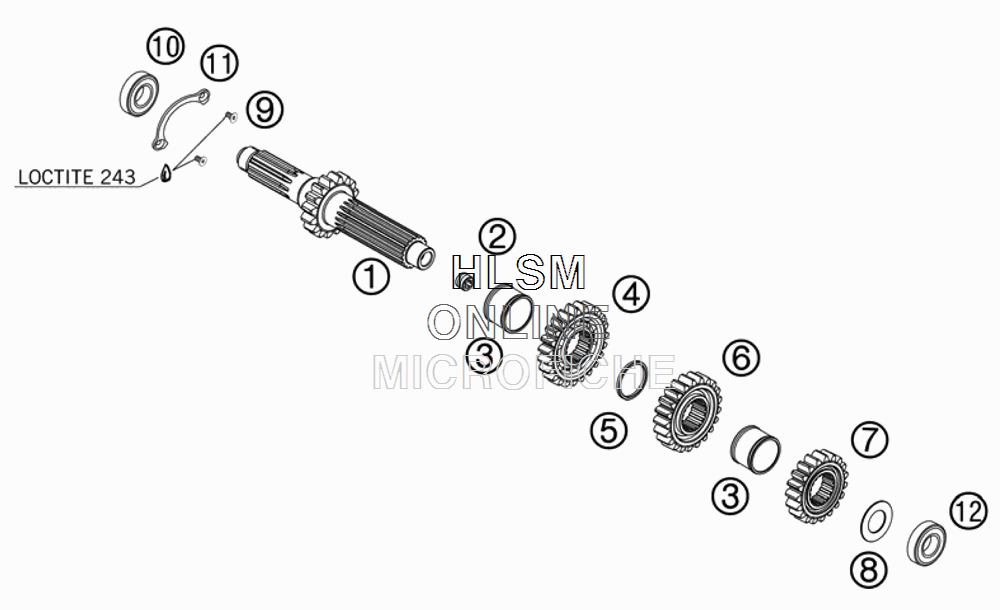

TRANSMISSION - MAIN SHAFT для Ktm 450 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
177333201100 MAIN SHAFTMAIN SHAFT
-
277333001160 GUIDE BUSHINGGUIDE BUSHING
-
377333252921 SPACER SLEEVE 25X29X21,2SPACER SLEEVE 25X29X21,2
-
477333204100 SOLID GEAR 4.G 23ZSOLID GEAR 4.G 23Z
-
577333252924 SPACER BUSHING 25X29X2,4SPACER BUSHING 25X29X2,4
-
677333203100 SOLID GEAR 3.G 21ZSOLID GEAR 3.G 21Z
-
777333202100 SOLID GEAR 2.G. 19ZSOLID GEAR 2.G. 19Z
-
877333244300 STOP DISC 32X17X1STOP DISC 32X17X1
-
90019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1177333022100 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
120625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
