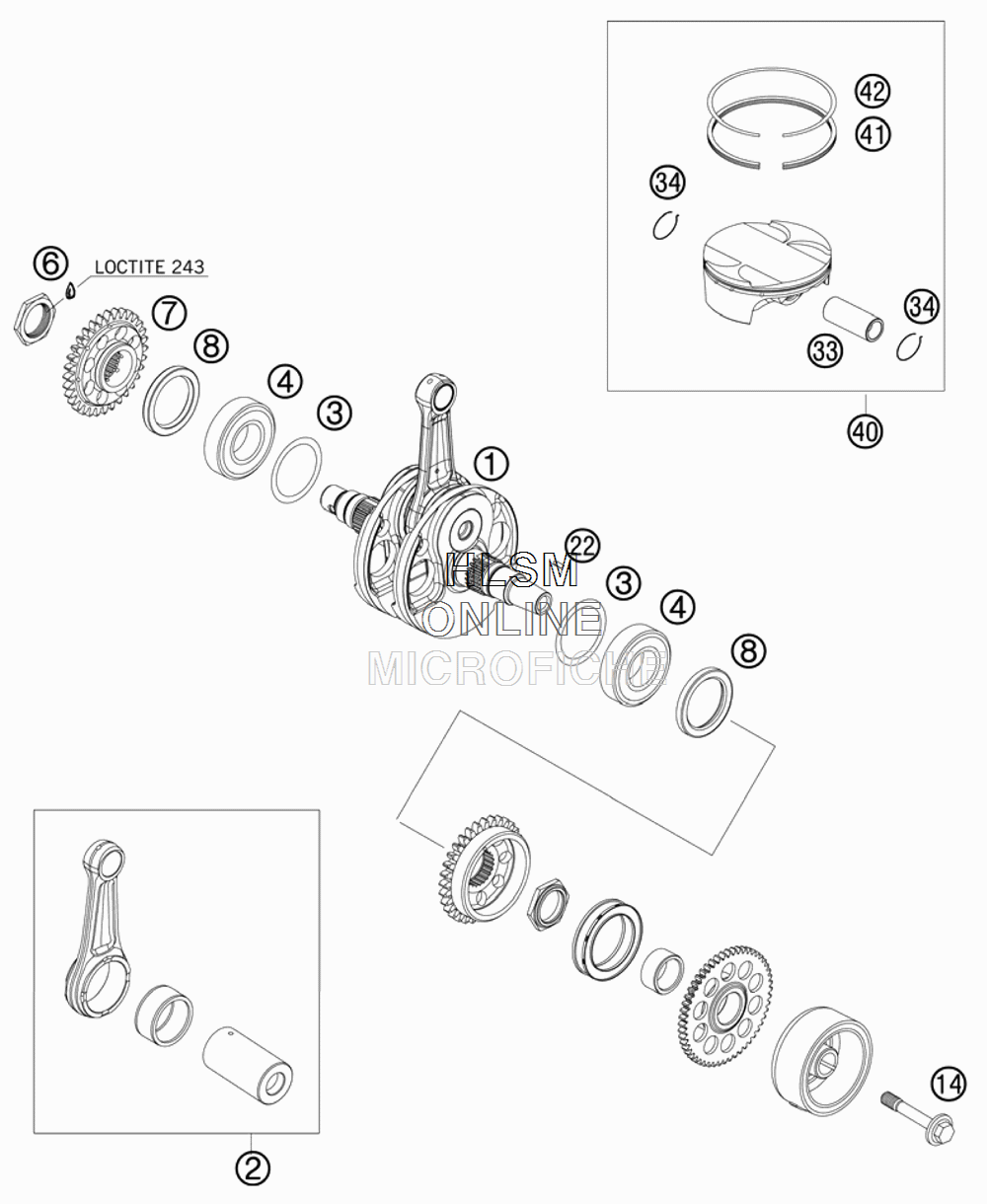

CRANKSHAFT PISTON для Ktm 505 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
177630018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
277630015144 CONNECTING ROD REPAIR SETCONNECTING ROD REPAIR SET
-
30988304201 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
30988304202 THRUST WASHER 30X42X0,2THRUST WASHER 30X42X0,2
-
30988304203 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
477330082000 CYL. ROLLER BEARING NJ206 ECPCYL. ROLLER BEARING NJ206 ECP
-
677330029000 COLLAR NUT M27X1COLLAR NUT M27X1
-
777332023177 PRIMARY GEAR CPL.PRIMARY GEAR CPL.
-
80760405560 SHAFT SEAL RING A40X55X6 VITONSHAFT SEAL RING A40X55X6 VITON
-
1477339010000 FLYWHEEL SCREWFLYWHEEL SCREW
-
220888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
3377630033000 PISTON PINPISTON PIN
-
3477630074000 CIRCLIPCIRCLIP
-
4077630007000I PISTON IPISTON I
-
4077630007000II PISTON IIPISTON II
-
4177630032000 OIL SCRAPER RINGOIL SCRAPER RING
-
4277630030000 RECTANGULAR RINGRECTANGULAR RING
