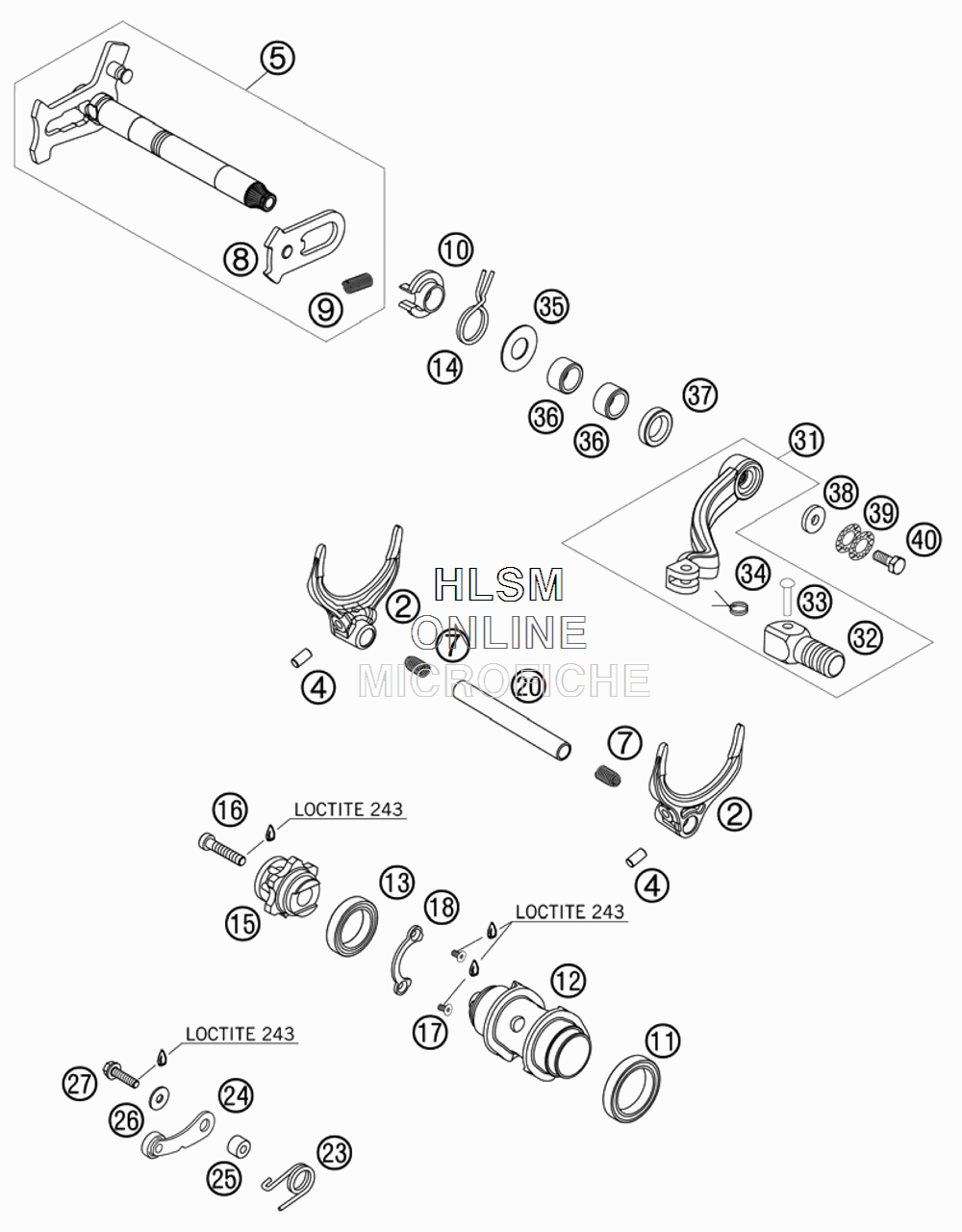

SHIFTING MECHANISM для Ktm 505 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
277334203100 SHIFTING FORKSHIFTING FORK
-
40402060120 CYLINDER ROLLER 6X12CYLINDER ROLLER 6X12
-
577334005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
854634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
110625061806 BALL BEARING 61806BALL BEARING 61806
-
1277334212200 SHIFT ROLLER 4G 60.5SHIFT ROLLER 4G 60.5
-
130625068050 BALL BEARING 6805 C4 NTN JAPANBALL BEARING 6805 C4 NTN JAPAN
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1577334015000 SHIFT LOCATING DRUM CPL.SHIFT LOCATING DRUM CPL.
-
160984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
170019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1877334090000 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
2077334020000 SHIFT RAILSHIFT RAIL
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
270015050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
3154734031000 SHIFT LEVER CPL. 2-STROKESHIFT LEVER CPL. 2-STROKE
-
3254634131000 STEP PLATE FOR SHIFT LEVER 250STEP PLATE FOR SHIFT LEVER 250
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRING 250SHIFTING LEVER SPRING 250
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
370760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3850232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
3950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
400933060165 HH SCREW DIN0933-M 6X16HH SCREW DIN0933-M 6X16
