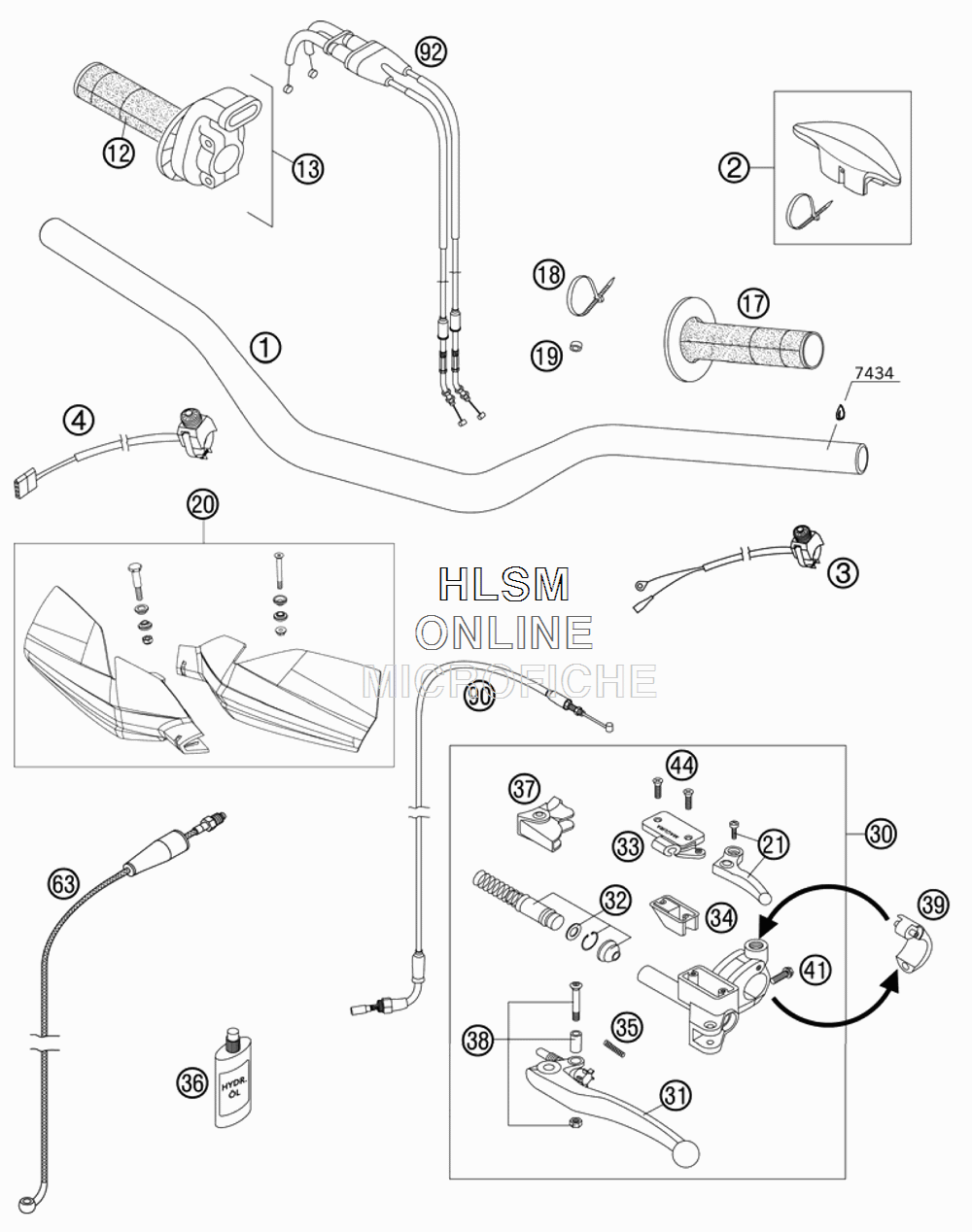

HANDLEBAR CONTROLS для Ktm 505 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
17730200110017 HANDLEBAR RENTHAL SX 28MMHANDLEBAR RENTHAL SX 28MM
-
259002002000 HANDLEBAR PADHANDLEBAR PAD
-
350311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
463011074000 STARTER BUTTONSTARTER BUTTON
-
1254802013000 TWIST GRIP COVER RENTHALTWIST GRIP COVER RENTHAL
-
1359402010000 THROTTLE GRIP CPL. RACINGTHROTTLE GRIP CPL. RACING
-
1754802039000 FIXED GRIP RENTHALFIXED GRIP RENTHAL
-
1844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1950301089000 SPACER BUSHING 6X10X5SPACER BUSHING 6X10X5
-
207700207900004 HAND GUARDS CPL.L/S+R/S OR.HAND GUARDS CPL.L/S+R/S OR.
-
2159002047000 DECO.LEVER CPL. RACINGDECO.LEVER CPL. RACING
-
3058602030000 MASTER CYLINDER CPL. SXC/SMMASTER CYLINDER CPL. SXC/SM
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3250302032000 REP.SET PISTON CLUT.HYDR.REP.SET PISTON CLUT.HYDR.
-
3359002033000 COVER HYD.CLUTCH RACINGCOVER HYD.CLUTCH RACING
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL. 125-200LEVER SCREW CPL. 125-200
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
410025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
6359032063100 CLUTCH PIPE RACINGCLUTCH PIPE RACING
-
9077002096000 HOT START CABLEHOT START CABLE
-
9277002091000 THROTTLE CABLE 250 SXFTHROTTLE CABLE 250 SXF
