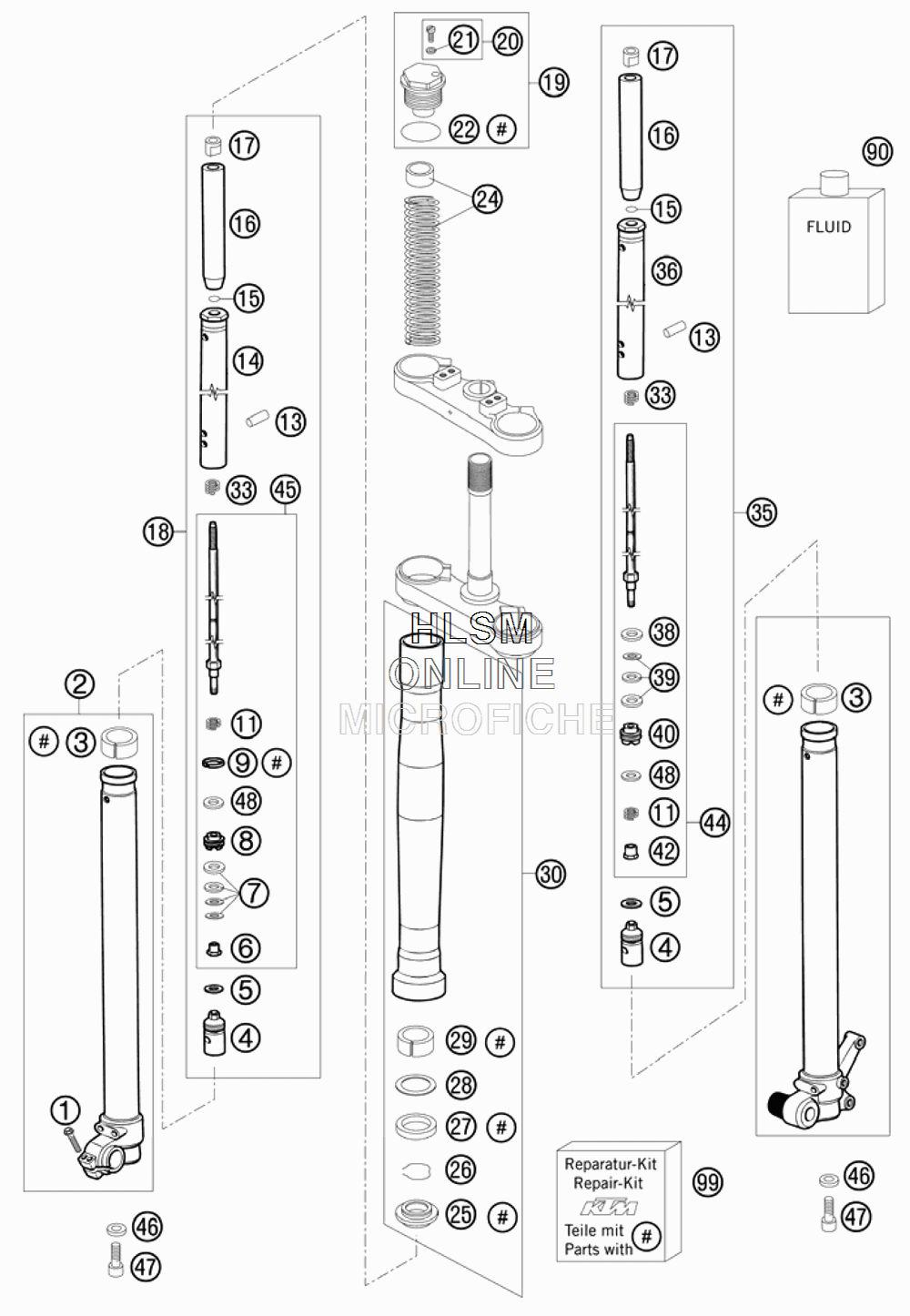

FRONT FORK DISASSEMBLED для Ktm 65 SX - 2008 года выпуска
-
№АртикулНазвание
-
10025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
27819139/C SLIDER + AXLE CLAMP CPL. R/SSLIDER + AXLE CLAMP CPL. R/S
-
37538029 GUIDE RINGGUIDE RING
-
47717065/R FOOT VALVEFOOT VALVE
-
57528005 O-RINGO-RING
-
67521092/D SPECIAL NUT M6X1 WITH STEPSPECIAL NUT M6X1 WITH STEP
-
77517217 REED VALVE 22X8,1X0,1REED VALVE 22X8,1X0,1
-
87530097/B PISTON REBOUNDPISTON REBOUND
-
97524163 PISTON RINGPISTON RING
-
1175141087 LOWER REBOUND SPRINGLOWER REBOUND SPRING
-
1375321033 PIN 8X30PIN 8X30
-
1475181140/R TUBE BODY R/STUBE BODY R/S
-
157523224 STOP RING 10X1STOP RING 10X1
-
1675181153 GUIDE BUSH 6,4X12X12GUIDE BUSH 6,4X12X12
-
177521005 SPECIAL NUTSPECIAL NUT
-
1878031082 REBOUND CPL.REBOUND CPL.
-
197701196 PLUG CPL.PLUG CPL.
-
207850208AR LENTIL HEAD SCREW M4X6LENTIL HEAD SCREW M4X6
-
217528180 O-RINGO-RING
-
227528008 O-RINGO-RING
-
247850728 SPRINGS + PRELOAD SLEEVES KITSPRINGS + PRELOAD SLEEVES KIT
-
257533167 DUST CAPDUST CAP
-
267523236 LOCK WASHERLOCK WASHER
-
277528034 OIL SEAL 35X47X10OIL SEAL 35X47X10
-
287539032AA WASHER 36X47X3WASHER 36X47X3
-
307760069FN/C OUTER TUBE CPL.OUTER TUBE CPL.
-
337514077 TOP REBOUND SPRINGTOP REBOUND SPRING
-
3578031083 COMPRESSION CPL.COMPRESSION CPL.
-
3675181139/R TUBE BODY L/STUBE BODY L/S
-
387535099 COMPRESSION DAMPING SHIMCOMPRESSION DAMPING SHIM
-
397517028 SHIM 8,1X23X0,2SHIM 8,1X23X0,2
-
397517039 SHIM 8,1X22X0,2SHIM 8,1X22X0,2
-
397517060 SHIM 8,1X22X0,3SHIM 8,1X22X0,3
-
407530090/B PISTON COMPRESSIONPISTON COMPRESSION
-
427521147/A SPECIAL NUT M6X1 WITH STEPSPECIAL NUT M6X1 WITH STEP
-
437819140/C SLIDER + AXLE CLAMP CPL. L/SSLIDER + AXLE CLAMP CPL. L/S
-
447309651/R COMPRESSION CARTRIDGE CPL.COMPRESSION CARTRIDGE CPL.
-
457309652/R REBOUND CARTRIDGE CPL.REBOUND CARTRIDGE CPL.
-
467522061 SHIM 8X12X1,5SHIM 8X12X1,5
-
470912080253 AH SCREW DIN0912-M 8X25AH SCREW DIN0912-M 8X25
-
487517044 SHIM 8,1X23X0,3SHIM 8,1X23X0,3
-
907550013 FORKOIL EBH16 SAE 7.5FORKOIL EBH16 SAE 7.5
-
997850731/C REPAIR-KIT USD 35REPAIR-KIT USD 35
