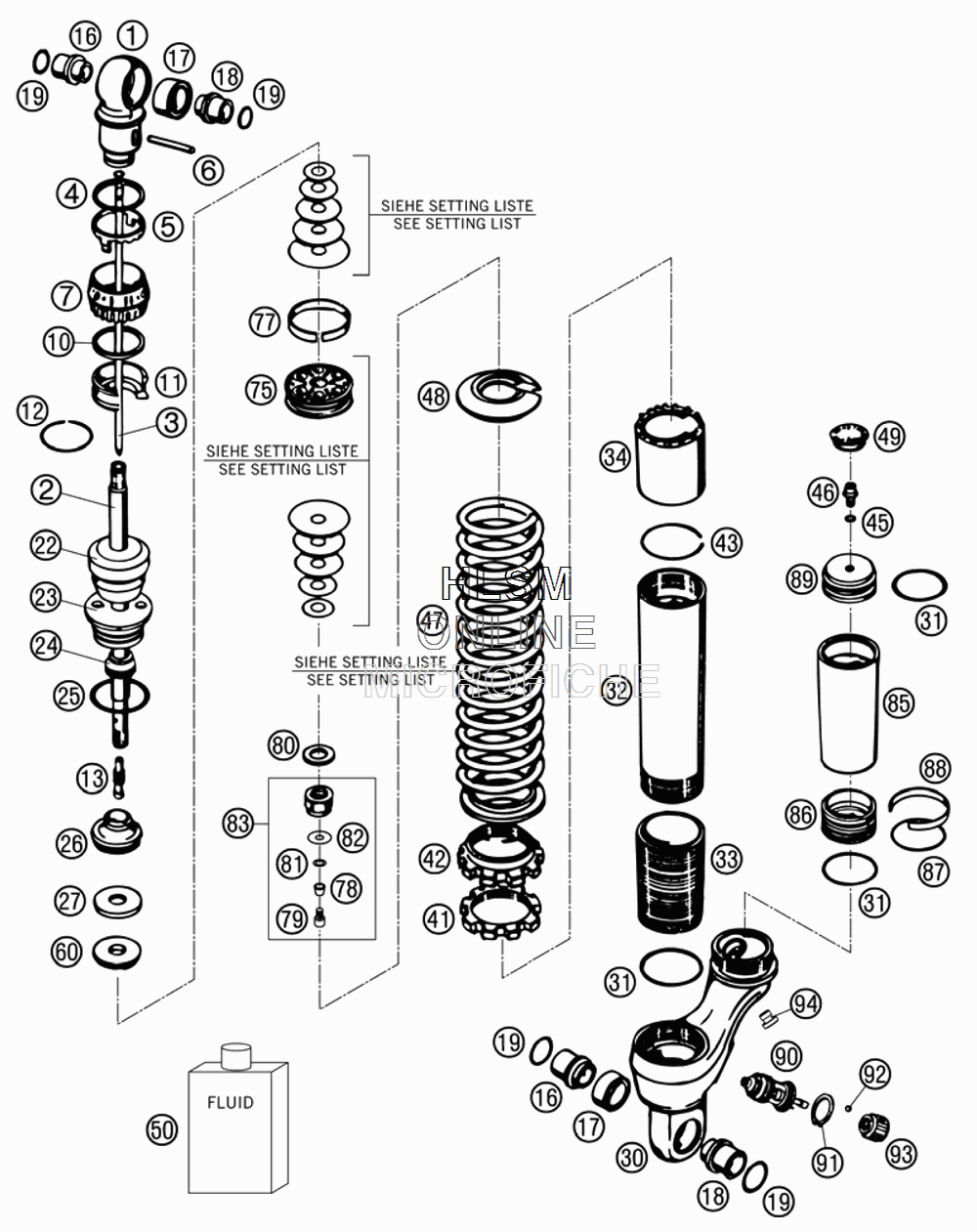

MONOSHOCK DISASSEMBLED для Ktm 65 SX - 2008 года выпуска
-
№АртикулНазвание
-
146811525 SHOCK ABS. BOTTOMSHOCK ABS. BOTTOM
-
236120586S PISTON RODPISTON ROD
-
346811401S NEEDLE CPL.NEEDLE CPL.
-
446811222 O-RING 36X0,5O-RING 36X0,5
-
546811263 WASHERWASHER
-
646811261 PIN 4X35PIN 4X35
-
746811262 ADJ. KNOBADJ. KNOB
-
1046811221 O-RING 35X3O-RING 35X3
-
1146811367 INTERMEDIATO RINGINTERMEDIATO RING
-
1246811268 CIRCLIP 22X1,2CIRCLIP 22X1,2
-
1346811259 NEEDLE SEAT 5X17,25NEEDLE SEAT 5X17,25
-
1646811076 ADAPTOR BUSH KGW 10X20ADAPTOR BUSH KGW 10X20
-
1746811027 BUSHING KGW 1525BUSHING KGW 1525
-
1846811077 ADAPTOR BUSH KGW 10X22ADAPTOR BUSH KGW 10X22
-
1946811050 SEAL KGWSEAL KGW
-
2236120135 BUMP RUBBER WP65 REDBUMP RUBBER WP65 RED
-
2336120650 SCREW CAP M37,65 STEELSCREW CAP M37,65 STEEL
-
2446811044 DUST SEAL 1424DUST SEAL 1424
-
2536120064 O-RING NBR 29,74X3,53O-RING NBR 29,74X3,53
-
2636120522S1 ADAPTER CPL.ADAPTER CPL.
-
2736120469 SHIM 28,5X14X2SHIM 28,5X14X2
-
3036120726 SHOCK ABSORB.CASE PGB KGWSHOCK ABSORB.CASE PGB KGW
-
310770380020 O-RING 38,00X2,00 NBR 70 SHO-RING 38,00X2,00 NBR 70 SH
-
3236120137 TUBETUBE
-
3336120019 THREADED BUSH BLACKTHREADED BUSH BLACK
-
3436120467 PROTECTION SLEEVEPROTECTION SLEEVE
-
4136120015 COUNTERNUTCOUNTERNUT
-
4236120418 ADJUSTING NUTADJUSTING NUT
-
4340540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
4546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
4636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
4793010181S SPRING 40N/MM 40-220 220MM ORASPRING 40N/MM 40-220 220MM ORA
-
4793010182S SPRING 35N/MM 35-220 220MM ORASPRING 35N/MM 35-220 220MM ORA
-
4793010183S SPRING 45N/MM 45-220 220MM ORASPRING 45N/MM 45-220 220MM ORA
-
4836120386 SPRING RET.SPRING RET.
-
4946811208 RUBBER CAP ''DO NOT OPEN''RUBBER CAP ''DO NOT OPEN''
-
5050180342S1 SHOCK ABSORBER FLUID 5 LT 'SHOCK ABSORBER FLUID 5 LT '
-
6036120557 REBOUND BUSHREBOUND BUSH
-
7536120603 PISTON 6+6XD=5,5/3,5 BAPISTON 6+6XD=5,5/3,5 BA
-
7736120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
7846811267 BUSHING 6X9X3BUSHING 6X9X3
-
7946811251 BLEED SCREW M 4X6BLEED SCREW M 4X6
-
8036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
8140540450 SHIM 6X9,5X0,3SHIM 6X9,5X0,3
-
8240540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
8336120605S2 PISTON ROD NUT CPL.PISTON ROD NUT CPL.
-
8536120631 RESERVOIR SCREW GREYRESERVOIR SCREW GREY
-
8636120024 SEPARATION PISTONSEPARATION PISTON
-
8736120466 O-RING VITON 32X5O-RING VITON 32X5
-
8846810022 PISTON RING 3,9X1,5X124PISTON RING 3,9X1,5X124
-
8936120552 SCREW FOR RESERVOIR CAP M5SCREW FOR RESERVOIR CAP M5
-
9046810850S7 CC-COMPRE.DAMPING CONTROL CPL.CC-COMPRE.DAMPING CONTROL CPL.
-
9146810334 LOCK WASHER JV24LOCK WASHER JV24
-
9246810333 STEEL-BALLSTEEL-BALL
-
9350180131S ADJUSTING KNOB CC-MECH. CPL.ADJUSTING KNOB CC-MECH. CPL.
-
9450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
