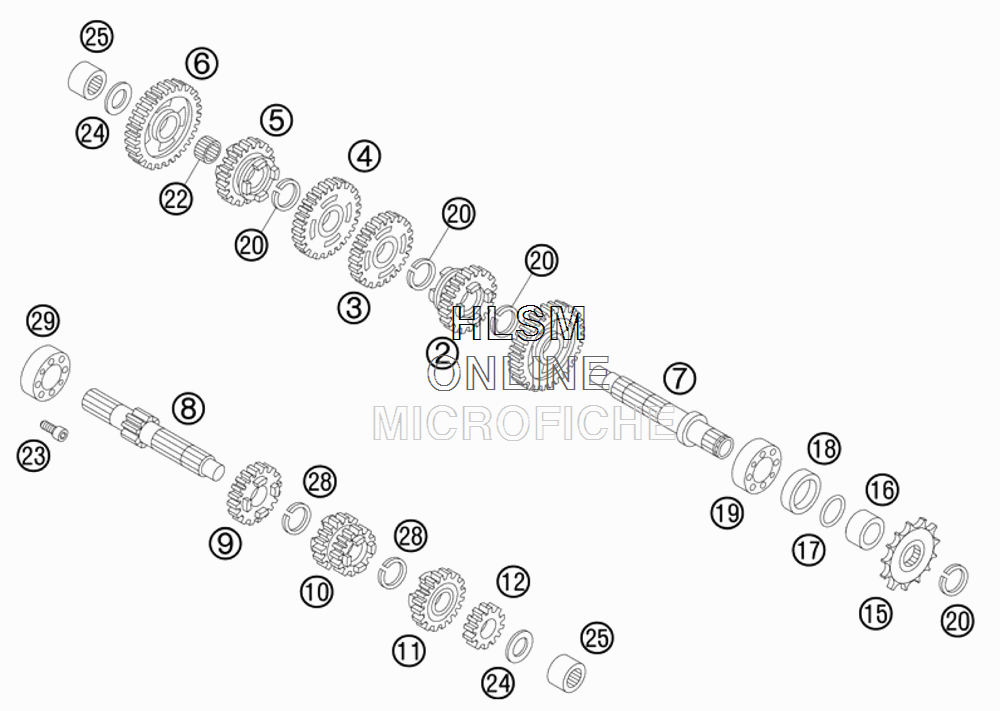

TRANSMISSION для Ktm 65 SX - 2008 года выпуска
-
№АртикулНазвание
-
146033011100 IDLER GEAR 2ND GEARIDLER GEAR 2ND GEAR
-
246033012200 SLIDING GEAR 6TH GEARSLIDING GEAR 6TH GEAR
-
346033013100 IDLER GEAR 3RD GEARIDLER GEAR 3RD GEAR
-
446033014100 IDLER GEAR 4TH GEARIDLER GEAR 4TH GEAR
-
546033015200 SLIDING GEAR 5TH GEARSLIDING GEAR 5TH GEAR
-
646033016200 IDLER GEAR 1ST GEARIDLER GEAR 1ST GEAR
-
746033002100 COUNTER SHAFTCOUNTER SHAFT
-
846033001000 MAIN SHAFT 13-TMAIN SHAFT 13-T
-
946033007200 IDLER GEAR 5TH GEARIDLER GEAR 5TH GEAR
-
1046033008200 SLIDING GEAR 3RD/4TH G.SLIDING GEAR 3RD/4TH G.
-
1146033009200 IDLER GEAR 6TH GEARIDLER GEAR 6TH GEAR
-
1246033010000 SOLID GEAR 2ND GEAR 16-TSOLID GEAR 2ND GEAR 16-T
-
1546033029013 SPROCKET 13-T 60/65SPROCKET 13-T 60/65
-
1546033029014 SPROCKET 14-TSPROCKET 14-T
-
1646033030000 DISTANCE BUSHING SPROCKETDISTANCE BUSHING SPROCKET
-
1746033031000 O-RING 18,77X1,78O-RING 18,77X1,78
-
180760263560 SHAFT SEAL RING 26X35X6SHAFT SEAL RING 26X35X6
-
1946033028000 GROOVED BALL BEARING 20X42X12GROOVED BALL BEARING 20X42X12
-
2049033091000 CIRCLIP AS20X1,75CIRCLIP AS20X1,75
-
2246033020000 NEEDLE BEARING 14X18X8NEEDLE BEARING 14X18X8
-
2346033023000 SPECIAL SCREW M6X10SPECIAL SCREW M6X10
-
2449033013000 STOP DISK 12,1X25X1STOP DISK 12,1X25X1
-
2546033026000 NEEDLE BEARING NK12 12X19X12NEEDLE BEARING NK12 12X19X12
-
2846033022000 CIRCLIPCIRCLIP
-
2946033025000 GROOVED BALL BEAR.SKF98203/C3GROOVED BALL BEAR.SKF98203/C3
