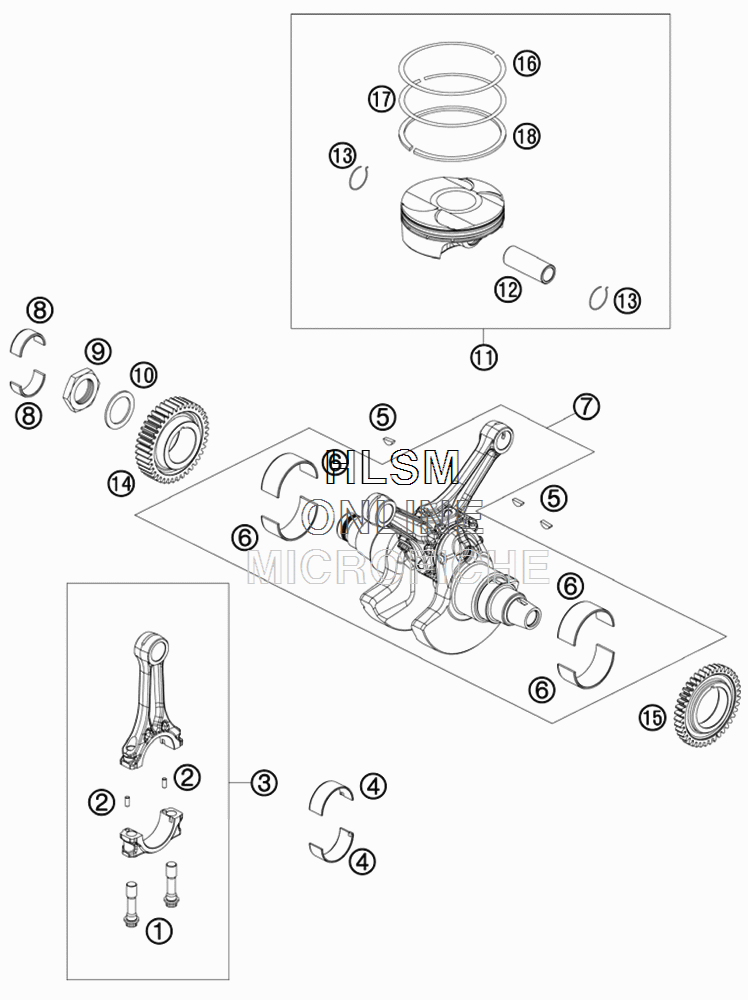

CRANKSHAFT PISTON для Ktm 1190 RC 8R - 2009 года выпуска

№

Артикул

Название
1

61230015000 CONNECTING-ROD SCREW MJ10X1

CONNECTING-ROD SCREW MJ10X1

4 260 ₽
2

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
3

69130013000 CONNECTING ROD CPL. 122 MM

CONNECTING ROD CPL. 122 MM

74 270 ₽
4

612300150101 SPLIT BEAR. BUSH RED

SPLIT BEAR. BUSH RED

7 980 ₽
4

612300150102 SPLIT BEAR. BUSH BLUE

SPLIT BEAR. BUSH BLUE

8 210 ₽
4

612300150103 SPLIT BEAR. BUSH YELLOW

SPLIT BEAR. BUSH YELLOW

7 980 ₽
5

0888040050 WOODRUFF KEY DIN6888 4X5X13

WOODRUFF KEY DIN6888 4X5X13

970 ₽
6

612300820001 SPLIT BEAR. BUSH RED

SPLIT BEAR. BUSH RED

6 190 ₽
6

612300820002 SPLIT BEAR. BUSH BLUE

SPLIT BEAR. BUSH BLUE

6 520 ₽
6

612300820003 SPLIT BEAR. BUSH YELLOW

SPLIT BEAR. BUSH YELLOW

7 180 ₽
7

69130018100 CRANKSHAFT CPL.

CRANKSHAFT CPL.

170 ₽
8

60030026010 BUSHING BOWL 28X32X13

BUSHING BOWL 28X32X13

3 240 ₽
9

60032009050 HH-NUT M33X1,5 L/S WS46

HH-NUT M33X1,5 L/S WS46

3 890 ₽
10

60032009040 WASHER 33,2X46X2

WASHER 33,2X46X2

680 ₽
11

69130007000I PISTON CPL. I

PISTON CPL. I

142 340 ₽
11

69130007000II PISTON CPL. II

PISTON CPL. II

138 310 ₽
12

61230033000 PISTON PIN D=20

PISTON PIN D=20

12 850 ₽
13

77630074000 CIRCLIP

CIRCLIP

2 840 ₽
14

61230055000 PRIMARY GEAR

PRIMARY GEAR

22 740 ₽
15

61230056000 DRIVE WHEEL BALANCER SHAFT

DRIVE WHEEL BALANCER SHAFT

15 680 ₽
16

69130032100 OIL SCRAPER PISTON RING

OIL SCRAPER PISTON RING

10 340 ₽
17

69130031000 TAPERED COMP. PISTON RING

TAPERED COMP. PISTON RING

3 850 ₽
18

69130030000 RECTANGULAR RING

RECTANGULAR RING

9 260 ₽
