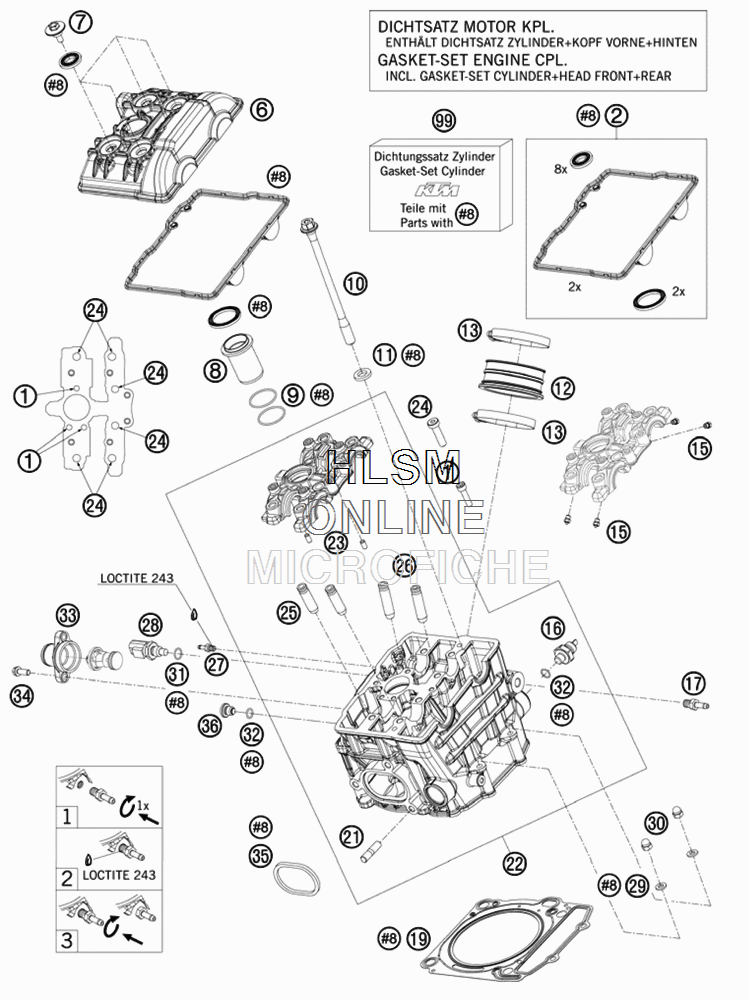

CYLINDER HEAD FRONT для Ktm 1190 RC 8R - 2009 года выпуска
-
№АртикулНазвание
-
10912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
261236099100 VALVE COVER GASKET SETVALVE COVER GASKET SET
-
661236052000 VALVE COVER FRONTVALVE COVER FRONT
-
760036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
861236075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
90770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
1061236079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
1161236079050 WASHER 11,1X20X3WASHER 11,1X20X3
-
1261236044000 RUBBERSLEEVE INTAKE FLANGERUBBERSLEEVE INTAKE FLANGE
-
1361236048000 HOSE CLAMP GEMI 66 / 1HOSE CLAMP GEMI 66 / 1
-
1560030063050 OIL JET 50OIL JET 50
-
1660038091100 OIL-PRESSURE SWITCH LC8OIL-PRESSURE SWITCH LC8
-
1760036023100 VACUUM CONECTION M6/0,5MMVACUUM CONECTION M6/0,5MM
-
1969130036000 CYLINDER HEAD GASKET MLSCYLINDER HEAD GASKET MLS
-
210835080165 STUD M 8X16 10.9STUD M 8X16 10.9
-
226123602010024 CYLINDER HEAD FRONTCYLINDER HEAD FRONT
-
230402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
240984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
2561236026000 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
2661236025000 VALVE GUIDE INTAKEVALVE GUIDE INTAKE
-
2761036023100 VACUUM CONECTIONVACUUM CONECTION
-
2860011252000 TEMPERAT.-SENSOR WATER LC8TEMPERAT.-SENSOR WATER LC8
-
290125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
300587060002 HH CAP NUT DIN1587-M 6 SS.HH CAP NUT DIN1587-M 6 SS.
-
310770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
320770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
3361235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
340025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3569005005100 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
3677336056095 SCREW PLUGSCREW PLUG
-
9969130097000 GASKET KIT CYLINDER+HEAD F+RGASKET KIT CYLINDER+HEAD F+R
