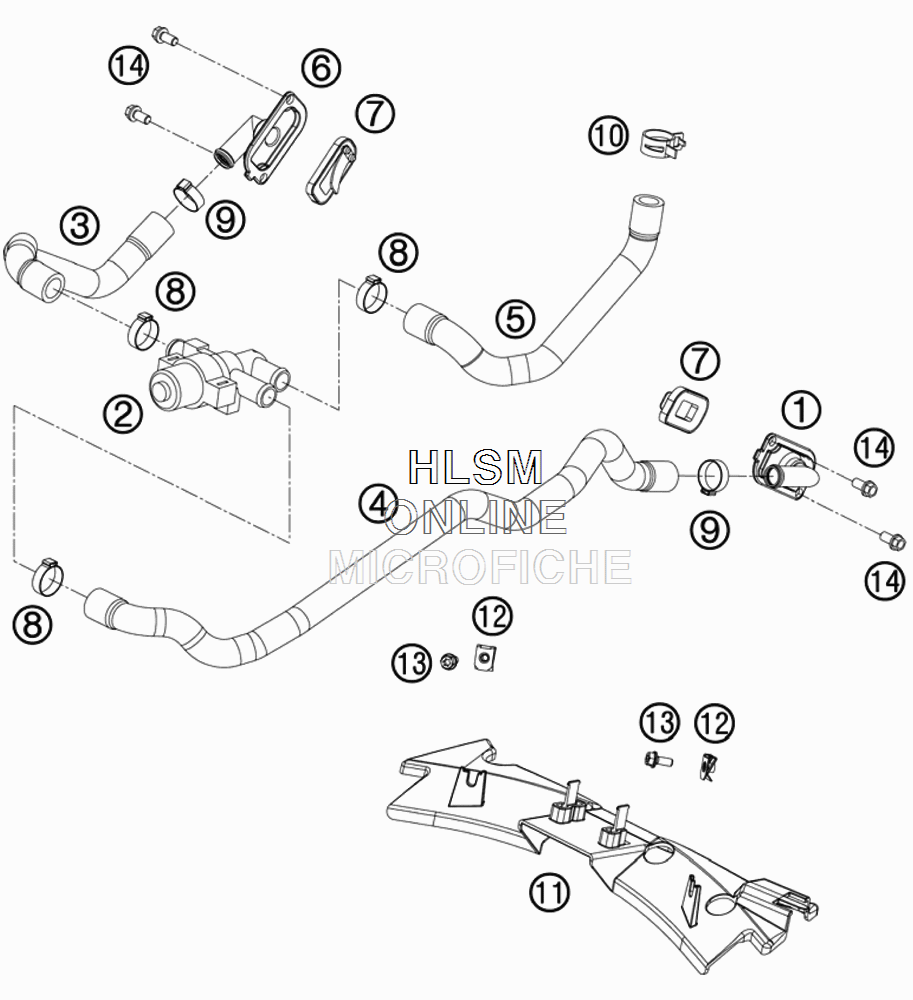

SECONDARY AIR SYSTEM SAS для Ktm 1190 RC 8R - 2009 года выпуска
-
№АртикулНазвание
-
161205032000 SLS-FLANGESLS-FLANGE
-
261005026000 CONTROL VALVE SASCONTROL VALVE SAS
-
369005035021 SAS HOSE-CYLINDER FRONTSAS HOSE-CYLINDER FRONT
-
469005035022 SAS HOSE-CYLINDER REARSAS HOSE-CYLINDER REAR
-
569005035023 SAS HOSE-AIR FILTER BOXSAS HOSE-AIR FILTER BOX
-
661205022000 SAS-FLANGESAS-FLANGE
-
760005026000 SLS-VALVESLS-VALVE
-
800050226706 VARIABLE ONE-EAR CLAMP 22,6MMVARIABLE ONE-EAR CLAMP 22,6MM
-
900050210706 VARIABLE ONE-EAR CLAMP 21,0MMVARIABLE ONE-EAR CLAMP 21,0MM
-
1000049200121 CLAMP STD DN20CLAMP STD DN20
-
1169005028100 SAS-SUPPORT RC8SAS-SUPPORT RC8
-
1269008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
130025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
140025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
