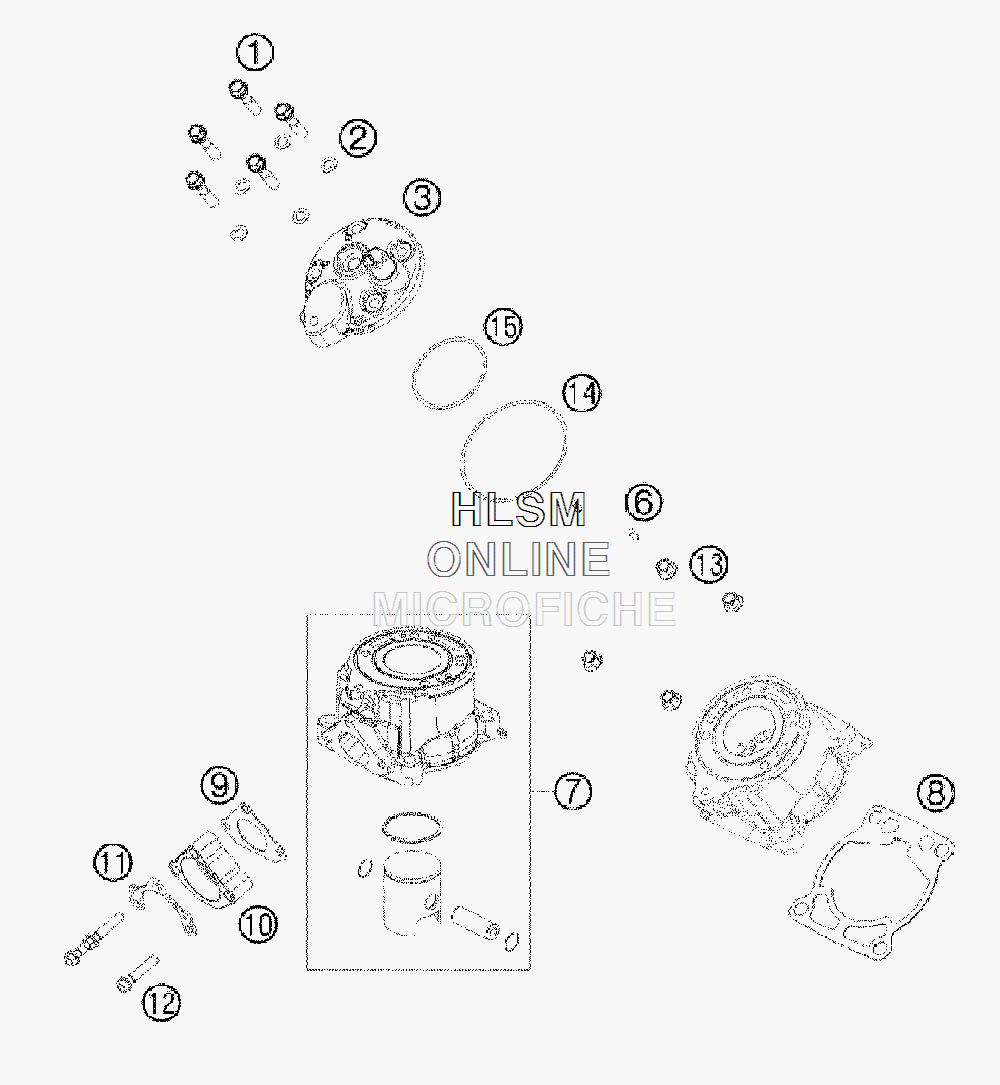

CYLINDER CYLINDER HEAD для Ktm 50 SX Junior LC - 2009 года выпуска
-
№АртикулНазвание
-
150330079000 CYL. HEAD BOLT M 7X30CYL. HEAD BOLT M 7X30
-
250230032010 CU-SEAL RING 7,3 X 12 X 0,5CU-SEAL RING 7,3 X 12 X 0,5
-
345230006000 CYLINDER HEADCYLINDER HEAD
-
60325040100 CYLINDER PIN DIN6325- 4X10CYLINDER PIN DIN6325- 4X10
-
745230038000 CYLINDER + PISTONCYLINDER + PISTON
-
846230035020 CYLINDER BASE GASKET 0,2 MMCYLINDER BASE GASKET 0,2 MM
-
846230035040 CYLINDER BASE GASKET 0,4 MMCYLINDER BASE GASKET 0,4 MM
-
846230035050 CYLINDER BASE GASKET 0,5 MMCYLINDER BASE GASKET 0,5 MM
-
846230035060 CYLINDER BASE GASKET 0,6 MMCYLINDER BASE GASKET 0,6 MM
-
945205004000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
1045205003000 EXHAUST FLANGEEXHAUST FLANGE
-
1146205003050 BRACKET FOR SPRINGHOLDERBRACKET FOR SPRINGHOLDER
-
120025060306 HH COLLAR SCREW M6X3OHH COLLAR SCREW M6X3O
-
1346030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
140770078020 O-RING 78,00X2,00 VIT. BLACKO-RING 78,00X2,00 VIT. BLACK
-
150770052020 O-RING 52,00X2,0 VITON 75O-RING 52,00X2,0 VITON 75
